Product Specifications

Brand	Siemens
Product Series	SIMATIC S7-1200
Order Number	6ES7232-4HD32-0XB0
Number of Analog Outputs	4 channels
Output Signal Type	Voltage or Current
Rated Supply Voltage	24 V DC
Typical Current Consumption	45 mA
Backplane Bus Current	80 mA, from 5 V DC backplane bus, typical value
Typical Power Loss	1.5 W
Voltage Output Range	-10 V to +10 V
Current Output Range	0 to 20 mA / 4 to 20 mA
Voltage Output Resolution	14 bit
Current Output Resolution	13 bit
Maximum Resolution	14 bit, including sign bit
Minimum Load Resistance at Voltage Output	1,000 Ω
Maximum Load Resistance at Current Output	600 Ω
Maximum Cable Length	100 m

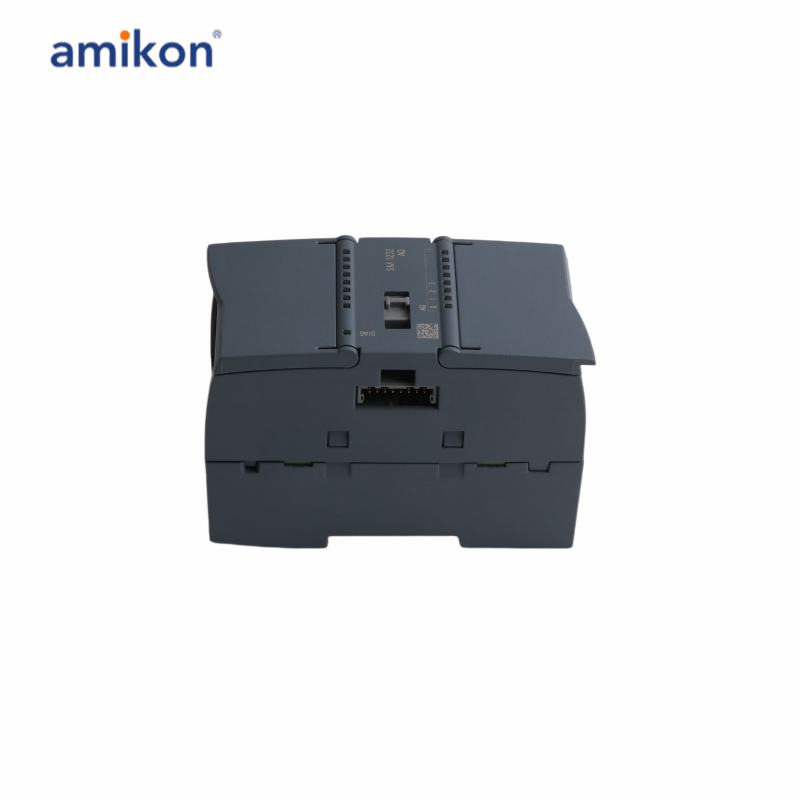

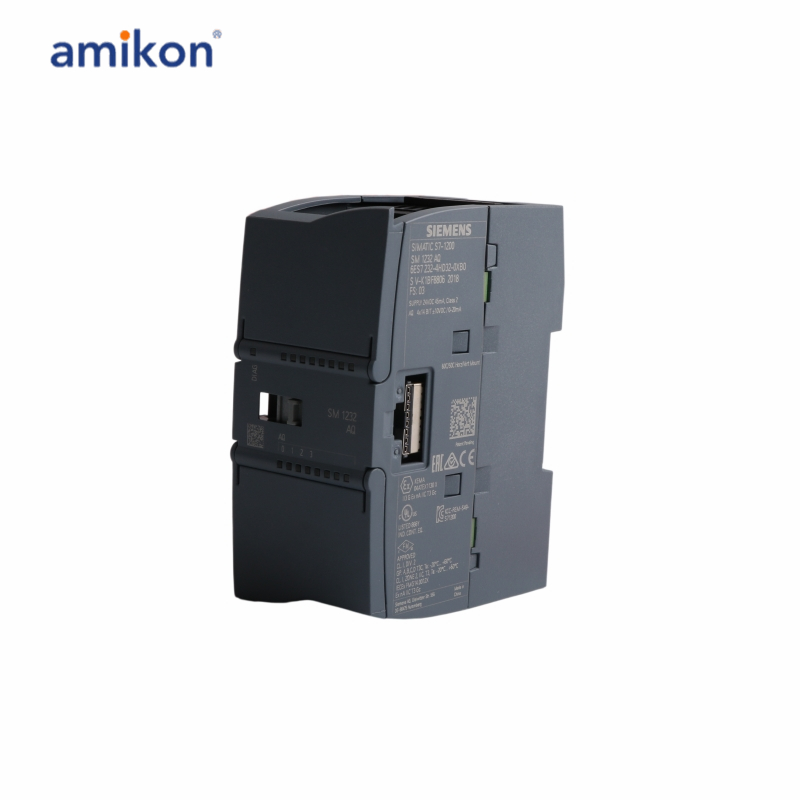

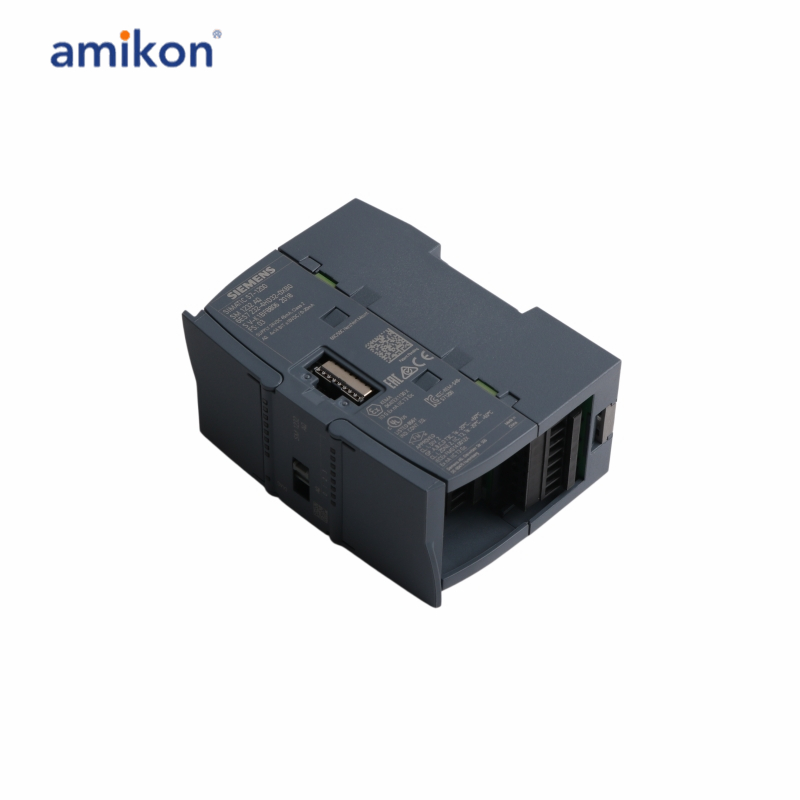

The Siemens 6ES7232-4HD32-0XB0 is a SIMATIC S7-1200 SM 1232 analog output module equipped with four analog output channels. Each channel can provide either a voltage or current signal. The module supports a voltage output range of -10 V to +10 V with 14-bit resolution, as well as 0–20 mA and 4–20 mA current output ranges with 13-bit resolution. This combination allows the module to handle multiple standard analog output requirements within an S7-1200 control system.

Frequently asked questions：

Q1: What is the full product description of 6ES7232-4HD32-0XB0?
It is a SIMATIC S7-1200 SM 1232 analog output module with 4 channels.

Q2: What signal types does this module support?
It supports voltage (±10V) and current (0–20 mA or 4–20 mA).

Q3: What is the output resolution of this module?
Voltage signals use 14 bits; current signals use 13 bits.

Q4: Is this module compatible with all S7-1200 CPUs?
It works with all S7-1200 CPUs except the ultra-compact CPU 1211C.

Product Applications

Wastewater and Water Treatment Plants
Chemical and Pharmaceutical Plants
HVAC and Environmental Engineering
Metallurgical and Manufacturing Production Lines
