Product Specifications

Part Number	6ES7234-4HE32-0XB0
Rated DC Supply Voltage	24 V
Typical Current Consumption	60 mA
Backplane Bus Current (5 V DC)	Typ. 80 mA
Typical Power Loss	2 W
Number of Analog Inputs	4; Current or voltage differential inputs
Max. Permissible Input Voltage (Destruction Limit)	35 V
Max. Permissible Input Current (Destruction Limit)	40 mA
Max. Cycle Time (All Channels)	625 µs
Accuracy-Voltage (vs Input Range)	±0.1 %
Accuracy-Current (vs Input Range)	±0.1 %
Accuracy-Voltage (vs Output Range)	±0.3 %
Accuracy-Current (vs Output Range)	±0.3 %
Operating Humidity (25 °C, non-condensing)	Max. 95 %
Operating Temperature	-20 … 60 °C
IP Rating	IP20
Output 1 Electrical Parameters	-10…10 V, 0…20 mA, 4…20 mA
Electrical Input 1 Parameters	0…20 mA, 4…20 mA, ±2.5 V, ±5 V, ±10 V

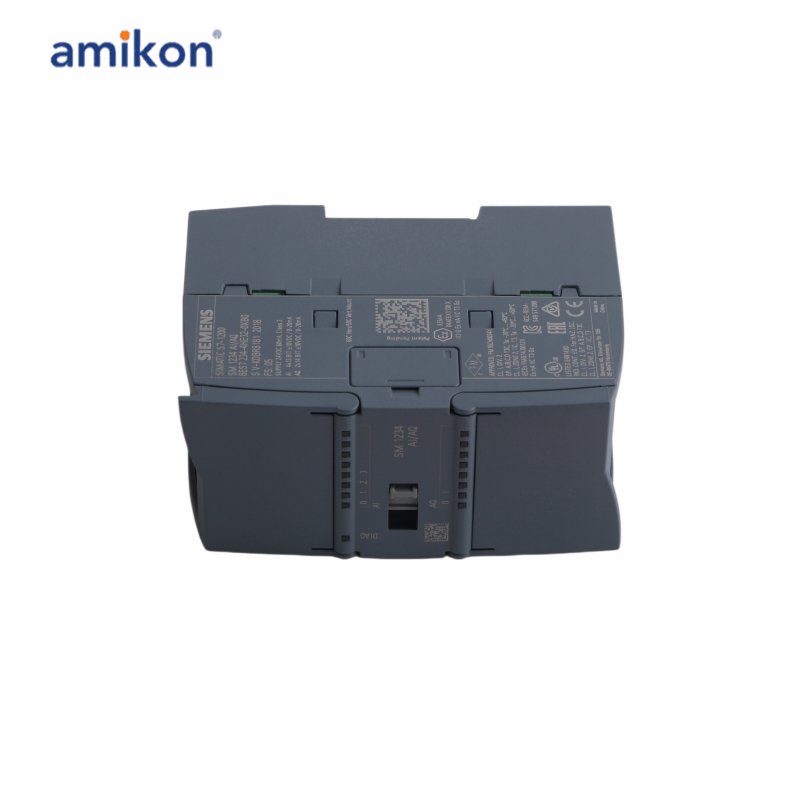

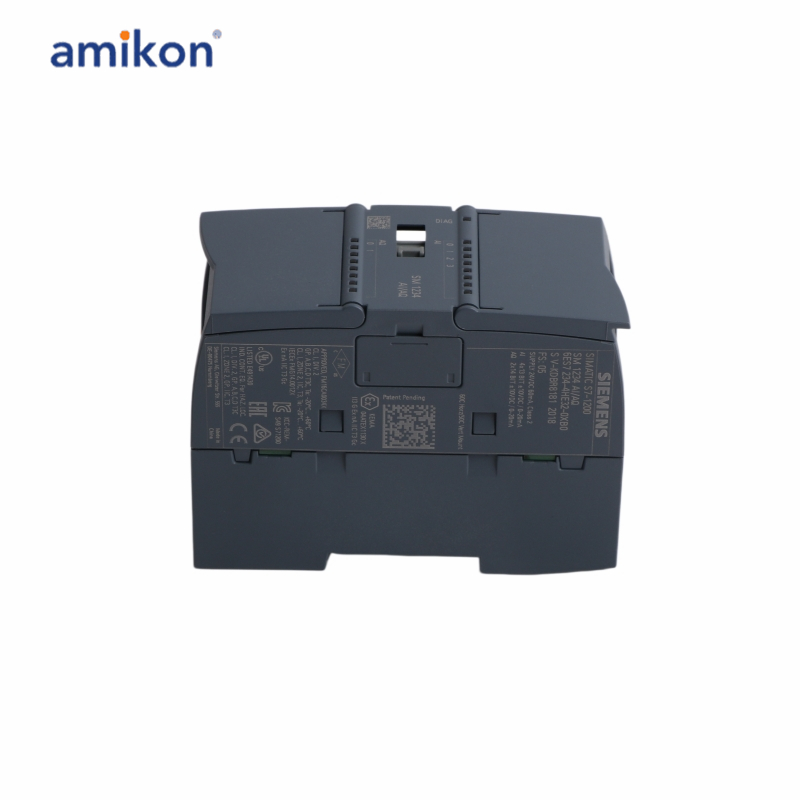

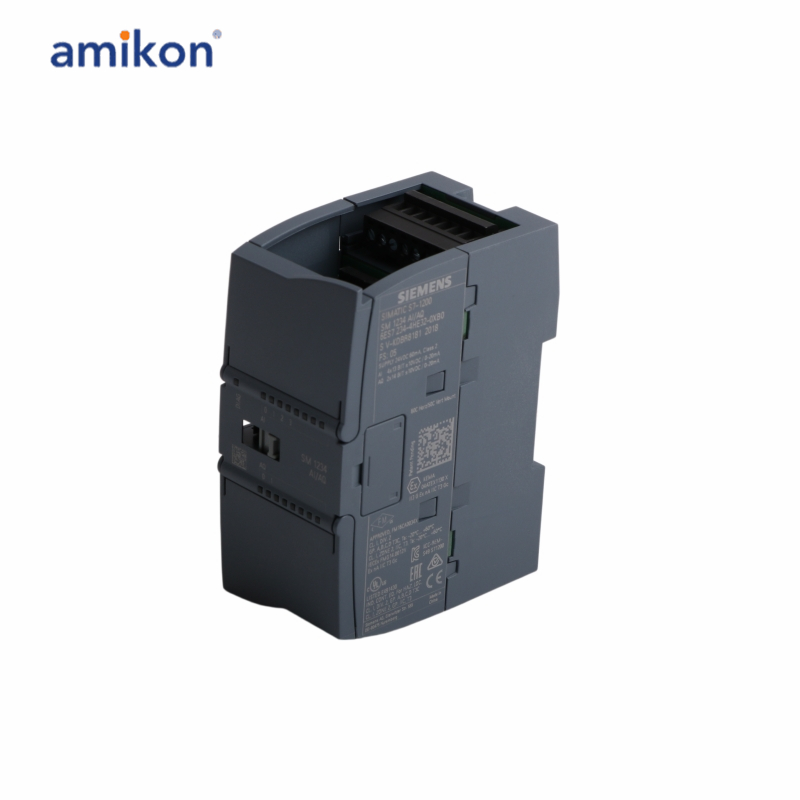

The Siemens 6ES7234-4HE32-0XB0 is a high-performance Analog I/O Module used in SIMATIC systems for accurate analog signal acquisition and processing in industrial control applications. This module operates with a rated 24 V DC supply voltage and provides reliable performance for process , machinery monitoring, and industrial control environments.
The module features 4 analog inputs supporting both current and voltage differential input signals, allowing flexible integration with a wide range of industrial sensors, transmitters, and measurement devices. With a typical current consumption of 60 mA and a backplane bus current consumption of approximately 80 mA at 5 V DC, the module delivers efficient and stable operation while maintaining low power usage. Its typical power loss is only 2 W, helping improve overall system energy efficiency.

Frequently asked questions：

Q1: What is the Siemens 6ES7234-4HE32-0XB0 Analog I/O Module?
A1: It is an analog input/output expansion module used in Siemens systems for processing analog voltage and current signals.

Q2: What is the 6ES7234-4HE32-0XB0 typical power loss of this module?
A2: The 6ES7234-4HE32-0XB0 typical power loss is 2 W.

Q3: How many analog inputs are available?
A3: The 6ES7234-4HE32-0XB0 module provides 4 analog inputs supporting current or voltage differential input signals.

Q4: What is the 6ES7234-4HE32-0XB0 operating temperature range?
A4: The 6ES7234-4HE32-0XB0 operating temperature range is -20°C to +60°C.

Q5: What is the 6ES7234-4HE32-0XB0 maximum permissible input voltage?
A5: The 6ES7234-4HE32-0XB0 maximum permissible input voltage (destruction limit) is 35 V.

Product Applications

Automobile manufacturing and assembly lines
Water treatment and environmental engineering
Food and packaging machinery
Heating, Ventilation, and Air Conditioning (HVAC)
New energy and power control
