Load voltage L+
● Rated value (DC)：24 V
● Permissible range, lower limit (DC)：20.4 V
● Permissible range, upper limit (DC)：28.8 V
Input current
● From load voltage L+ (without load), max.：90 mA
● From backplane bus 5 V DC, max.：70 mA
Power loss
● Power loss, typ.：5 W
Digital outputs
● Number of digital outputs：8
● Short-circuit protection：Yes; Electronic
● Response threshold, typ.：0.75 to 1.5 A
● Limitation of inductive shutdown voltage to：L+ (-45 V)
● Controlling a digital input：Yes
Switching capacity of the outputs
● On lamp load, max.：5 W
Load resistance range
● Lower limit：48 Ω
● Upper limit：3 kΩ

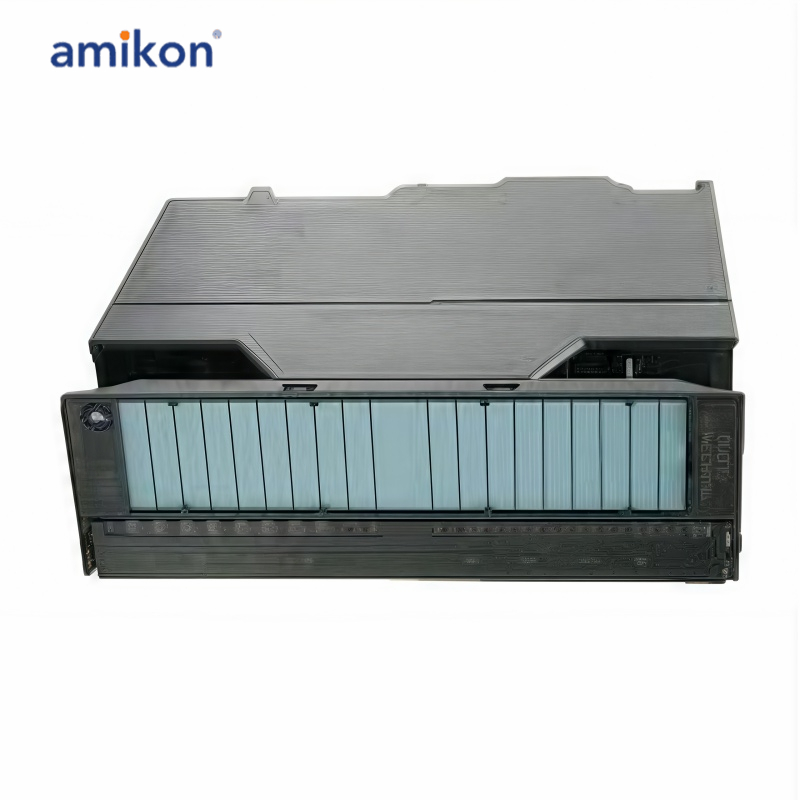

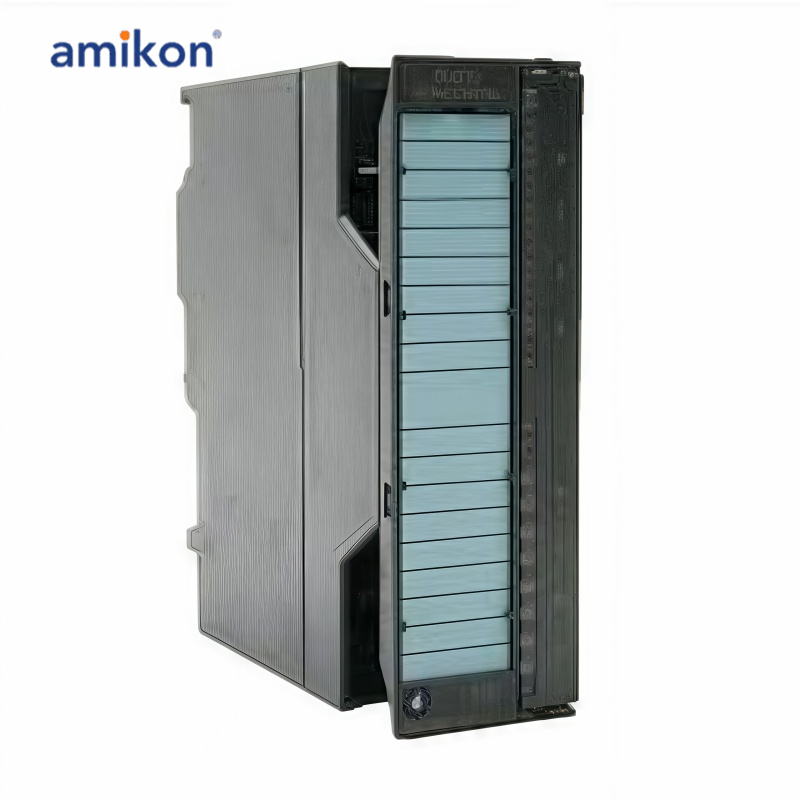

Siemens 6ES7322-8BF00-0AB0 is a digital output module from the SIMATIC S7-300 series, offering 8 digital output channels with 24V DC operation and electronic short-circuit protection. Designed for high reliability and compact installation, this module is ideal for a wide range of industrial applications. Each output channel includes diagnostic capabilities and can control digital input devices directly. It supports up to 5 W lamp load per channel, features a wide load resistance range, and draws power via the backplane bus. With robust performance and strong noise immunity, it is a dependable component for modern control systems.
