Product Specifications

Model	6SL3246-0BA22-1PA0 V 4.7
Product Type	SINAMICS Control Unit CU250S-2 DP
External Power Supply Range	DC 20 ... 29 V
Max. Power Consumption	2.0 A
Power Loss	12 W
Communication Protocol	PROFIBUS DP
Standard Digital Inputs	15 channels
Fail-Safe Digital Inputs	3 channels
Digital Outputs	2 relay outputs
Relay Output Rating	DC 30 V, 0.5 A
Analog Inputs	2 differential analog inputs
Analog Outputs	2 non-isolated analog outputs
Operating Temperature Range	-10°C to +50°C
Storage Temperature Range	-40°C to +70°C
Max. Relative Humidity	95%
Signal Cable Cross Section	0.05 ... 1.50 mm² (AWG 28 ... 16)
Protection Rating	IP20

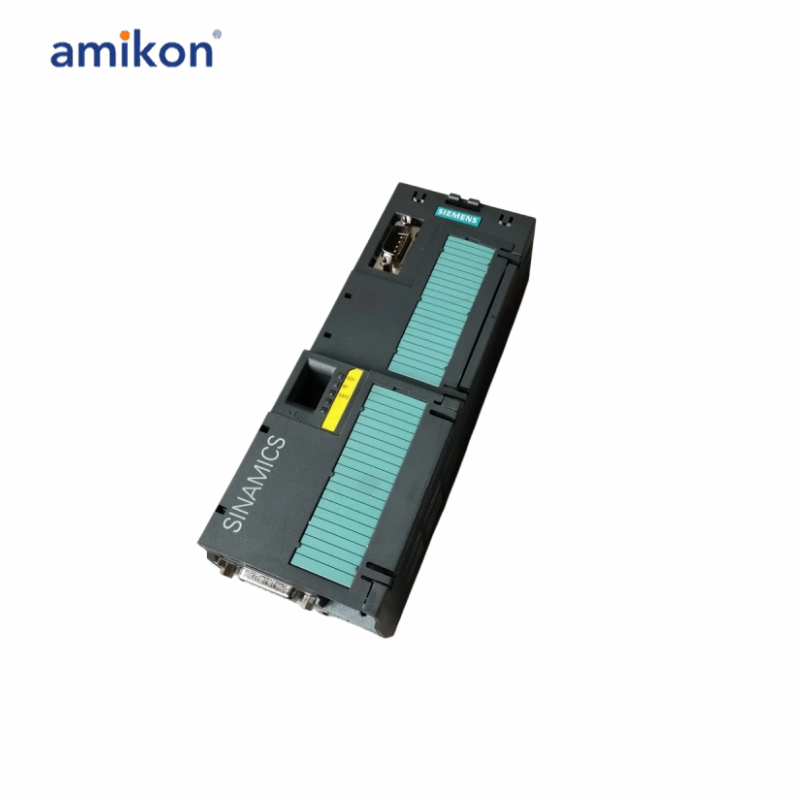

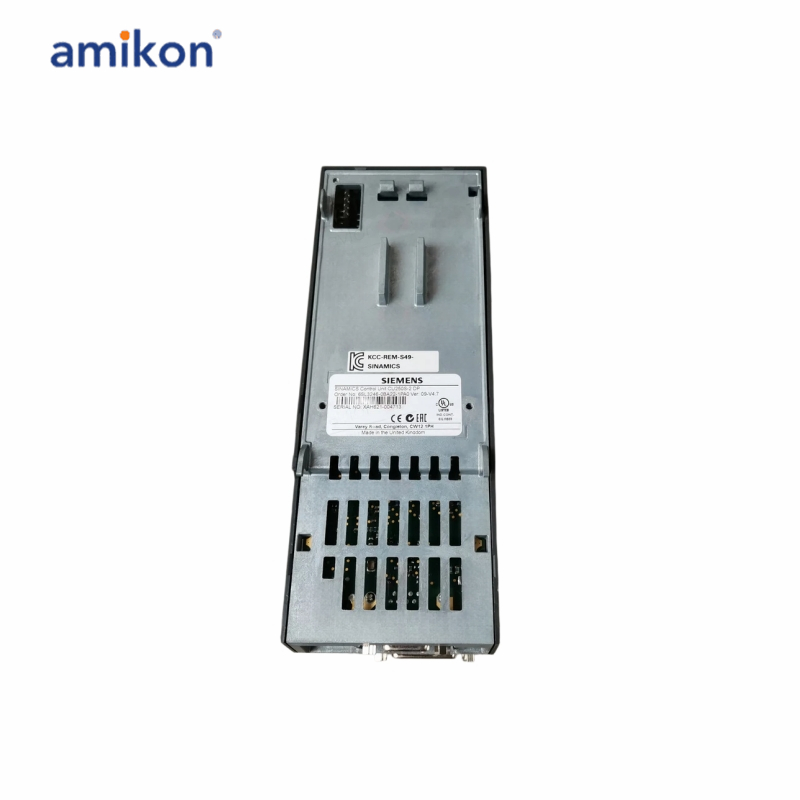

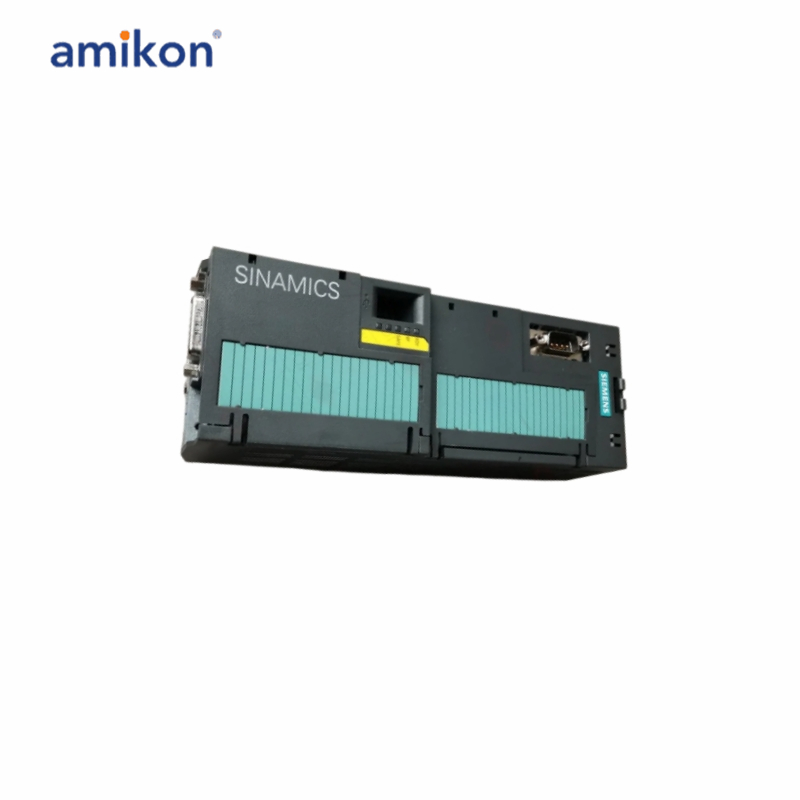

The SIEMENS 6SL3246-0BA22-1PA0 SINAMICS CU250S-2 DP Control Unit is a high-performance drive control module used within the SINAMICS drive system for advanced motor control and applications. Equipped with PROFIBUS DP communication, the unit enables seamless integration into industrial control networks and supports efficient data exchange between drives and systems.
The CU250S-2 DP provides 15 standard digital inputs, 3 fail-safe digital inputs, 2 analog inputs, 2 analog outputs, and 2 relay outputs, offering flexible connectivity for a wide range of industrial applications. It supports multiple motor control methods including V/f control, Flux Current Control (FCC), sensorless vector control, vector control with encoder, and torque control, ensuring precise motor performance and high operational efficiency.

Frequently asked questions：

Q1: What is the Siemens 6SL3246-0BA22-1PA0 V4.7 Control Unit used for?
A1: The 6SL3246-0BA22-1PA0 V4.7 Control Unit is used to control, monitor, and communicate with Siemens drive systems, providing precise motor control and integration with industrial networks.

Q2: What external power supply is required for this 6SL3246-0BA22-1PA0 V4.7 control unit?
A2: The 6SL3246-0BA22-1PA0 V4.7 control unit requires an external DC power supply of 20 to 29 VDC for normal operation.

Q3: What is the maximum current consumption of the 6SL3246-0BA22-1PA0 V4.7 unit?
A3: The 6SL3246-0BA22-1PA0 V4.7 maximum power consumption current is 2.0 A.

Q4: What is the power loss of the 6SL3246-0BA22-1PA0 V4.7 control unit?
A4: The 6SL3246-0BA22-1PA0 V4.7 unit has a power loss of 12 W, which should be considered when designing panel ventilation and thermal management systems.

Q5: How many standard digital inputs are available?
A5: The 6SL3246-0BA22-1PA0 V4.7 control unit provides 15 standard digital inputs, allowing flexible connection of switches, sensors, and control signals.

Product Applications

Material handling systems
Process control industry
Machining machinery and machine tools
Automotive and semiconductor manufacturing
