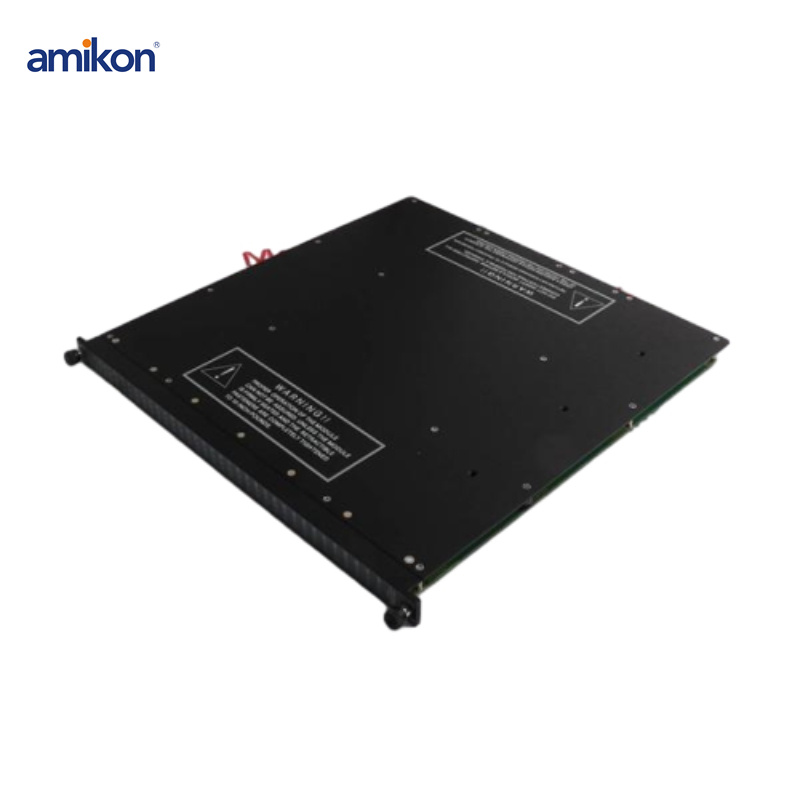

Triconex 3564 Digital Input Module

3564
3564
3564

Triconex 3564 Digital Input Module

New and original & Fast Deliyery & In Stock

  • Brand/Manufaturer:

    Triconex

  • Country of Origin:

    USA

  • Weight:

    0.28kg

  • Dimensions:

    30.5x9x3.5cm

  • Warranty Period:

    One Year Warranty

  • Payment Term:

    100% Advance Payment T/T Bank Wire Transfer
Inquire Now

Triconex 3564  Digital Input Module


Model Number

3564

Weight:

0.28 kg

Brand Name

Triconex

Lead Time

IN STOCK

Warranty

1 year

Payment

T/T Bank Transfer

Quality

Brand New & Original

Service

One-stop Service

Shipping By

DHL UPS TNT FEDEX ARAMEX

Dimensions

30.5x9x3.5cm



Product Description


64-Point Digital Input Modules

Each 64-point Digital Input (DI) module has three isolated channels which independently process all data input to the module. A microprocessor on each channel scans each input point, compiles data and transmits it to the Main Processors on demand. Then input data is voted at the Main Proces sors just prior to processing to ensure the highest integrity. All Digital Input Modules sustain complete, ongoing diagnostics for each channel. A failure on any channel acti vates the Fault indicator which in turn activates the chassis alarm. A TMR module is guaranteed to operate prop erly in the presence of a single fault and may operate properly with certain kinds of multiple faults. All Digital Input Modules support hot- spare modules and require a separate external termination panel (ETP) with a cable interface to the Tricon backplane. Each module is mechanically keyed to prevent improper installation in a chassis.



Features                                           Specification

Color code                                                             Dark red

Number of input points                                        64,

commoned Recommended input range               15–30 VDC

Maximum voltage                                               36 VDC

Switching level:                                                   Off to On 12 VDC typical, 15 VDC worst-case

Switching level:                                                   On to Off 8 VDC typical, 6 VDC worst-case

Typical hysteresis                                                 4 VDC

 Nominal turn-on                                                  2 mA to 3 mA

 Input impedance                                                  > 3.0 kΩ nominal

 Input delay: Off to On                                          < 2 ms

 Input delay: On to Off                                         < 2 ms

 Point isolation, opto-isolated                              1500 VDC minimum

 Status indicator: On or Off State                        1 per point

 Status indicator:                                                  Module status Pass, Fault, Active, Power

 Logic power                                                     < 10 watts

 Nominal field power load                                 0.2 watts per On point, 0.5 watts @ maximum field   voltage

 Leakage current to chassis @ 60 Hz                 Not applicable

 Input toggle rates1:                                           Maximum Every 100 ms

 Input toggle rates1: Minimum, On state           Not required

 Input toggle rates1: Minimum, Off state           Not required

 On glitch of Off point2: Duration                     < 2 ms maximum

 On glitch of Off point2: Voltage                      < VIN

 On glitch of Off point2: Duty cycle                50%, typical

  Impedance                                                      < 10 Ω
