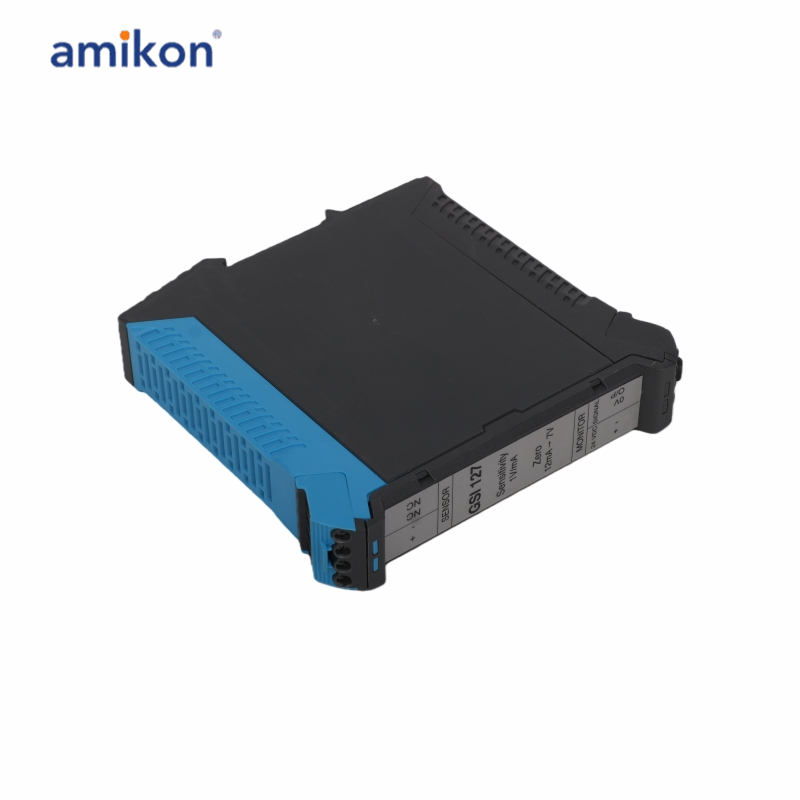

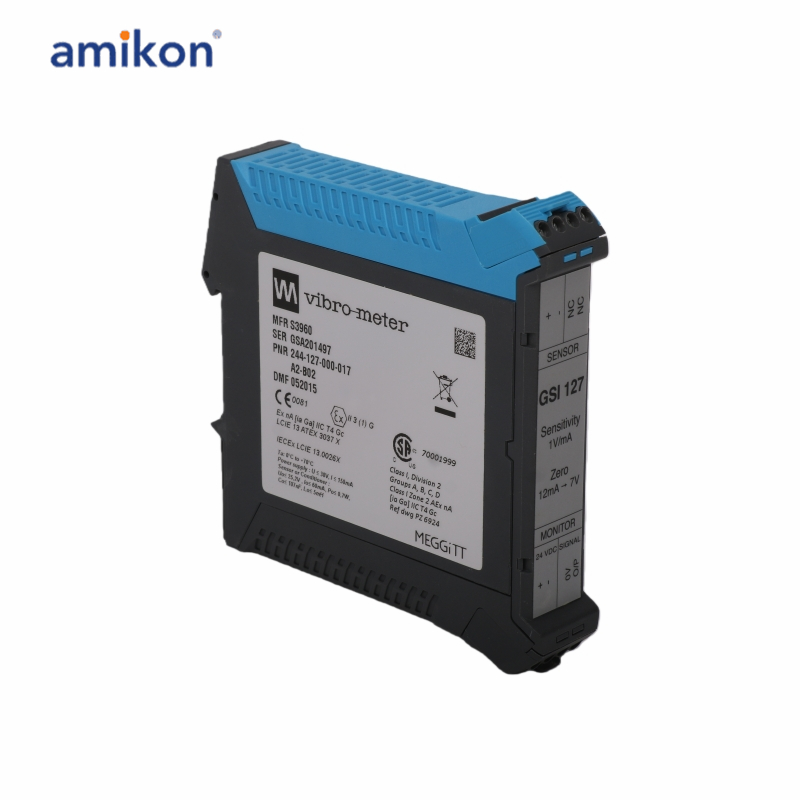

VIBRO METER GSI127 244-127-000-017 A1-B02 Galvanic Separation Unit

Temperature
Operating: 0 to 70°C (32 to 158°F)
Storage: −40 to 85°C (−40 to 185°F)
Humidity (according to IEC 60068-2-30)
Operating: 90% max., non-condensing
Storage: 95% max., non-condensing
Electrostatic Discharge (ESD) (according to IEC 61000-4-2)
Performance criteria B
Input Voltage Range
18 to 30 VDC
Current Consumption (with nominal 24 VDC supply)
No load on sensor side: ≤ 80 mA
20 mA load on sensor side: ≤ 120 mA
Supply
Ordering options B0x: 20 VDC ±1 VDC
Ordering options B21: 8 mA ±0.5 mA
Impedance
Ordering options B0x: ≤ 30 Ω
Ordering options B21: ≥ 50 kΩ
Output Impedance：20 Ω

The GSIl27 galvanic separation unit is a versatileunit that can is used for the transmission of high-frequency AC signals over long distances inmeasurement chains using current-signaltransmission or as a safety barrier unit inmeasurement chains using voltage-signaltransmission. More generally, it may be used tosupply any electronic system (sensor side) havinga consumption of up to 22 mA.
The GSIl27 also rejects a large amount of theframe voltage that can introduce noise into ameasurement chain. (Frame voltage is theground noise and AC noise pickup that canoccur between the sensor case (sensor ground)and the monitoring system (electronic ground)).In addition, its redesigned internal power supplyresults in a floating output signal, eliminating theneed for an additional external power supplysuch as an APF19x.

Frequently asked questions：

Q1: What is the VIBRO-METER GSI127 244-127-000-017 A1-B02 used for?
A: The GSI127 provides galvanic isolation to protect vibration sensors and monitoring equipment from electrical interference and ground loops.
Q2: What is the input voltage range of the GSI127 244-127-000-017 A1-B02 ?
A: The GSI127 operates within 18–30 V DC.
Q3: How much current does the GSI127 consume?
A: Current consumption is ≤80 mA with no sensor load and ≤120 mA with a 20 mA sensor load.
Q4: What applications is the GSI127 suitable for?
A: It is ideal for rotating machinery monitoring and industrial vibration protection systems.
