Product Specifications

Model	IPC707
Full Part Number	244-707-000-012 A1-B1-C9810-D3-E5-F2000-G2
Product Type	Signal Conditioner
Transfer Sensitivity (Code C9810)	9810 μA/pC·s
Dynamic Range (<10 kHz)	50,000 pC
Dynamic Range (10–20 kHz)	25,000 pC
Input Capacitance	< 15 nF
Insulation Resistance	> 20 kΩ
Max Peak Output Current	±5 mA
Nominal DC Output Current	12 mA DC ±0.2 mA
Output Impedance	> 60 kΩ
High-Pass Filter (Code E5)	5 Hz Butterworth High-Pass Filter
Low-Pass Filter (Code F2000)	2000 Hz Butterworth Low-Pass Filter

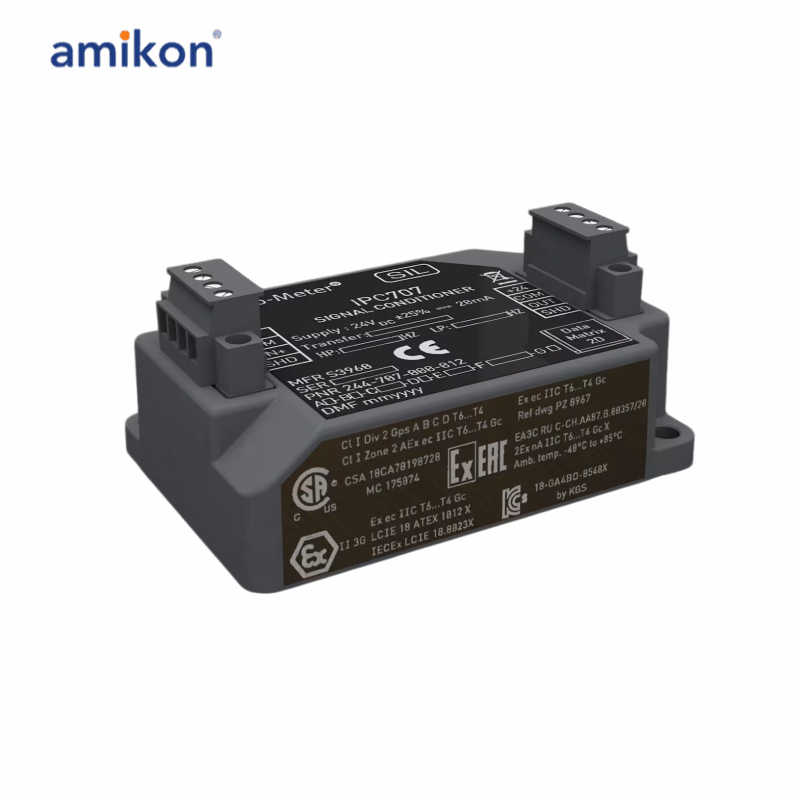

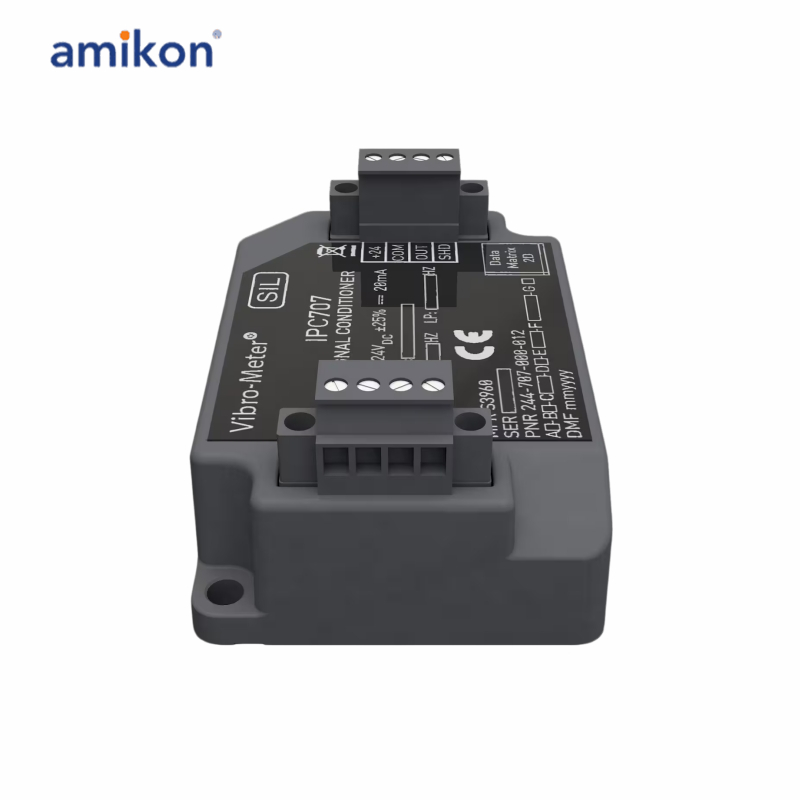

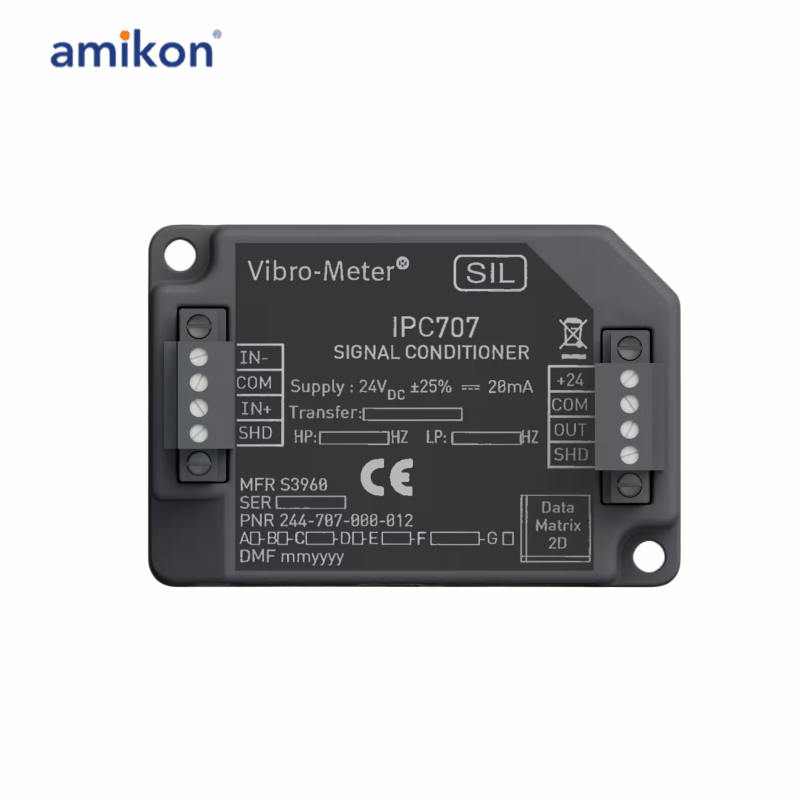

The IPC707 is a signal conditioner fromParker Meggitt's vibro-meter product line. It isdesigned for operation with sensors containing apiezoelectric sensing element that provide a chargeoutput and require an external signal conditioner(charge amplifier).
The IPC707 signal conditioner is a versatile and highlyconfigurable device that converts and processes thecharge-based signal from a piezoelectric-basedsensor into a current output or a voltage outputsignal, suitable for transmission to a monitoringsystem via a standard current (2-wire) or voltage(3-wire) transmission cable.
Configured with a 9810 μA/pC·s transfer sensitivity, 5 Hz high-pass filter, and 2000 Hz low-pass filter, this version is optimized for velocity measurement applications. The integrated DIN-rail mounting adapter allows convenient installation in industrial control cabinets, while the robust aluminum housing ensures reliable operation in demanding environments. The IPC707 is commonly used in power generation, oil & gas, petrochemical, and rotating machinery monitoring applications where accurate vibration signal conditioning is critical.

Frequently asked questions：

Q1: What is the Vibro-meter IPC707 244-707-000-012 Signal Conditioner used for?
A1: The IPC707 Signal Conditioner is used to process and convert signals from vibration and displacement sensors into stable output signals for machinery protection, condition monitoring, and industrial control systems.

Q2: What is the input capacitance of the IPC707?
A2: The IPC707 signal conditioner has an input capacitance of less than 15 nF, helping maintain accurate signal processing and sensor compatibility.

Q3: What is the insulation resistance of the IPC707 unit?
A3: The IPC707 provides an insulation resistance greater than 20 kΩ, ensuring reliable electrical isolation and stable operation.

Q4: What is the IPC707 maximum current output signal?
A4: The IPC707 maximum current output signal is ±5 mA peak, making it suitable for transmitting conditioned monitoring signals to connected equipment.

Q5: What is the output impedance of the IPC707 signal conditioner?
A5: The IPC707 output impedance is greater than 60 kΩ, supporting reliable signal transmission and interface compatibility.

Product Applications

Energy and Power Plants
Oil and Gas
Heavy industry manufacturing plants
