Product Specifications

Model	S3960 GSI127
Part Number	244-127-000-017
Ordering Code	A1-B02
Product Type	Galvanic Separation Unit
Manufacturer	Vibro-Meter
Transfer Sensitivity (Code B02)	1 V/mA ±1%
Zero Output Voltage	7 VDC ±200 mV (12 mA input)
Input Supply Voltage	18 ~ 30 VDC
Sensor Supply Voltage	20 VDC ±1 VDC
Sensor-Side Dynamic Range	0 ~ 20 mA
Output Signal Range	2 ~ 20 VDC
Output Impedance	20 Ω
Frequency Response (±0.5 dB)	DC to 20 kHz
Typical -3 dB Cut-off Frequency	30 kHz
Linearity	<0.2%
Sensor-to-Monitor Isolation	4 kVRMS

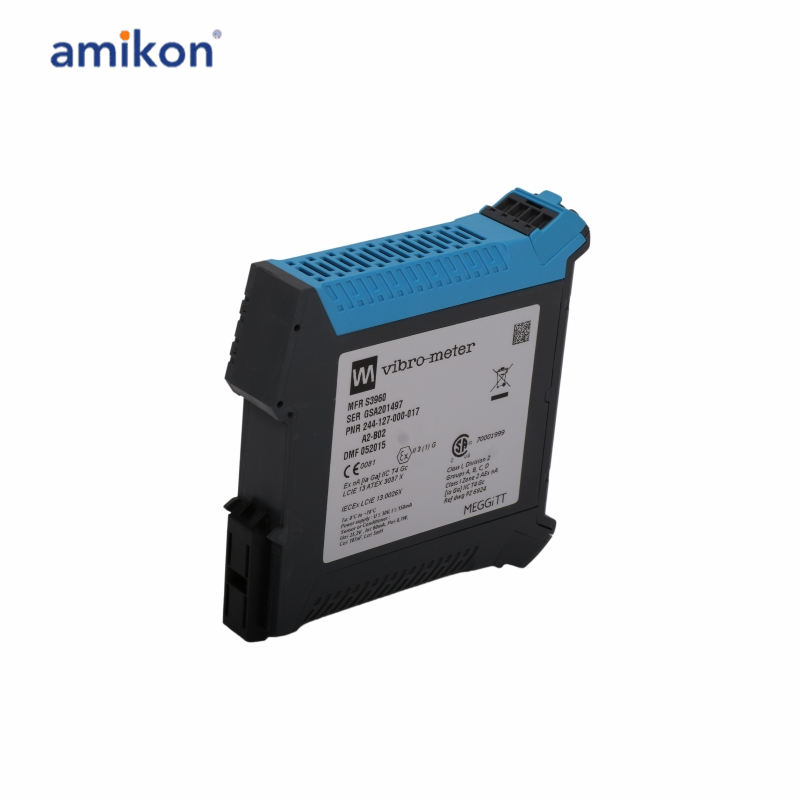

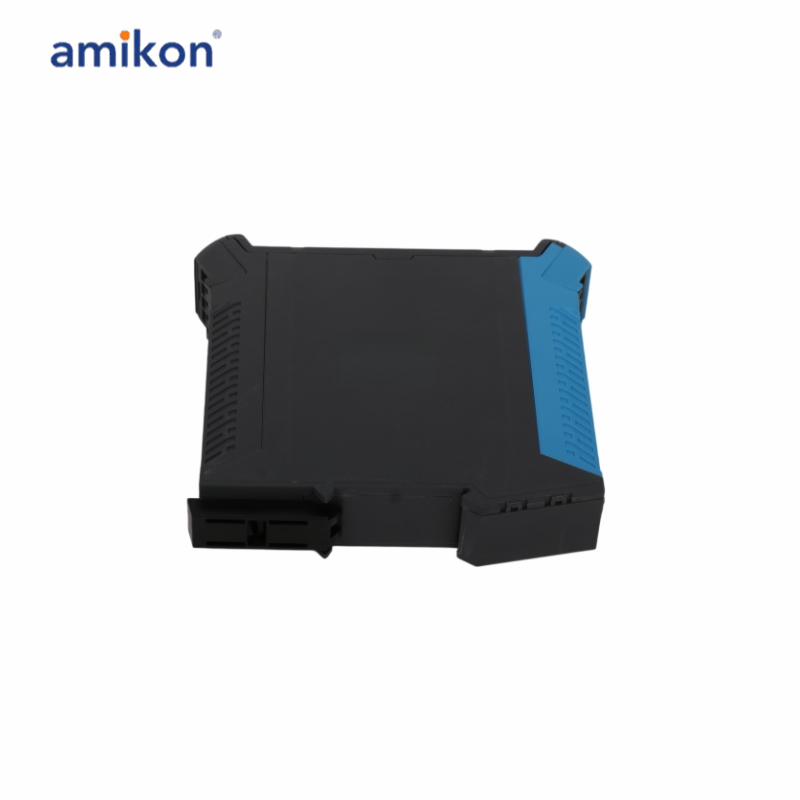

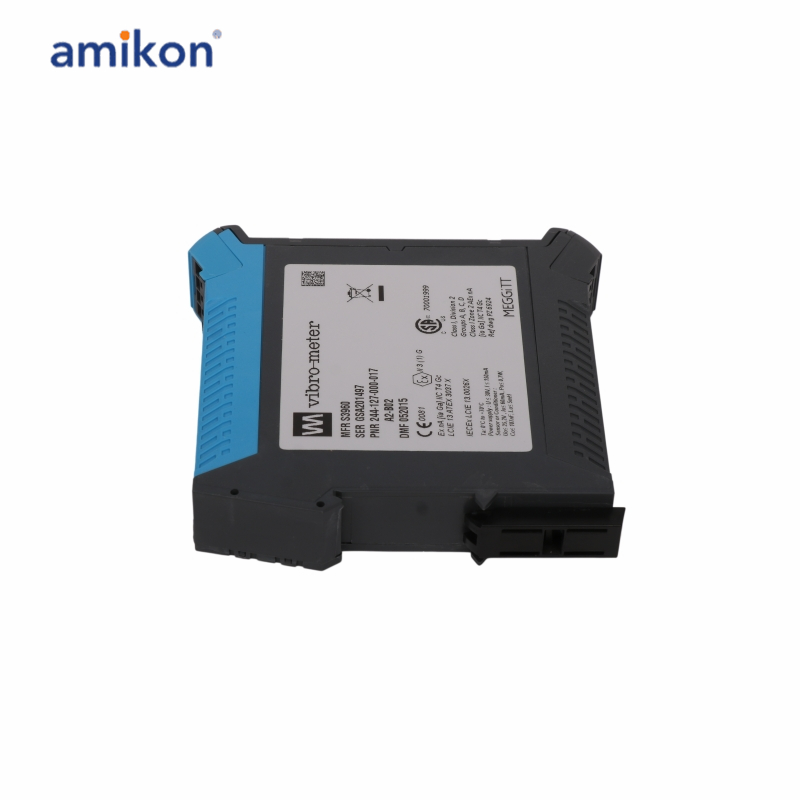

Vibro-Meter GSI127 244-127-000-017 A1-B02 is a galvanic separation unit from the vibro-meter® product line, designed to provide power supply, signal isolation, and signal transmission for vibration monitoring measurement chains. The unit is used with signal conditioners, charge amplifiers, proximity sensor conditioners, velocity sensors, piezoelectric accelerometers, dynamic pressure sensors, and IEPE vibration sensors. It provides 4 kVRMS galvanic isolation between the sensor side and monitor side, ensuring reliable signal transmission while protecting monitoring systems from ground loops, electrical noise, and frame voltage interference.
The GSI127 supports both current-output and voltage-output measurement chains. It can transmit high-frequency AC signals over long distances using current-signal transmission and can also function as a safety barrier in voltage-signal transmission systems. The floating output design eliminates the need for an external power supply barrier, simplifying installation and improving measurement reliability.

Frequently asked questions：

Q1: What is the Vibro-meter S3960 GSI 127 244-127-000-017 A1-B02 Galvanic Separation Unit used for?
A1: The GSI 127 Galvanic Separation Unit is used to provide electrical isolation between sensors, monitoring equipment, and control systems, helping improve signal integrity and protect connected devices from ground loops and electrical interference.

Q2: What is the sensor-side dynamic range of the GSI 127?
A2: The GSI 127 sensor-side dynamic range is 0 to 20 mA, allowing compatibility with a variety of industrial sensor signals.

Q3: What is the output signal range of the GSI 127 unit?
A3: The GSI 127 provides an output signal range of 2 to 20 VDC, suitable for interfacing with monitoring and control systems.

Q4: What is the GSI 127 output impedance of the galvanic separation unit?
A4: The GSI 127 output impedance is 20 Ω, ensuring stable signal transmission and reliable system integration.

Q5: What is the GSI 127 power-to-output isolation rating?
A5: The GSI 127 unit provides 50 VRMS power-to-output isolation, helping protect equipment from unwanted electrical coupling and interference.

Product Applications

Petrochemical and oil refineries
Thermal and hydroelectric power plants
Metallurgical and steel plants
