Product Specifications

Model Number	VM600 CMC16 200-530-022-014
Total Dynamic Channels	16 channels
Speed Range	1 to 100,000 RPM
Tachometer / Phase Inputs	The first 4 channels
Speed Resolution	5 ns
Input Voltage Range	-20 to +20 VDC
Max Pulses Per Revolution	128
Process Variable Channels	12 channels
Max Sampling Rate	100 kHz
On-board Buffer Capacity	1 MByte RAM
Power Supply	5 VDC (±5%)
Power Consumption	15 W
Operating Temperature	-25°C to +65°C
Relative Humidity	0-90% (non-condensing)

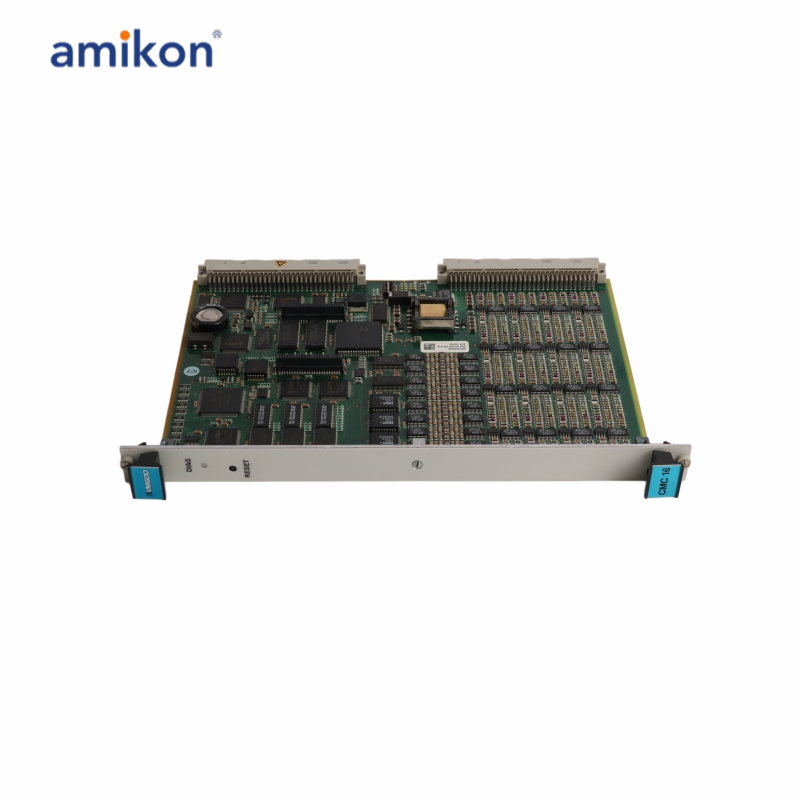

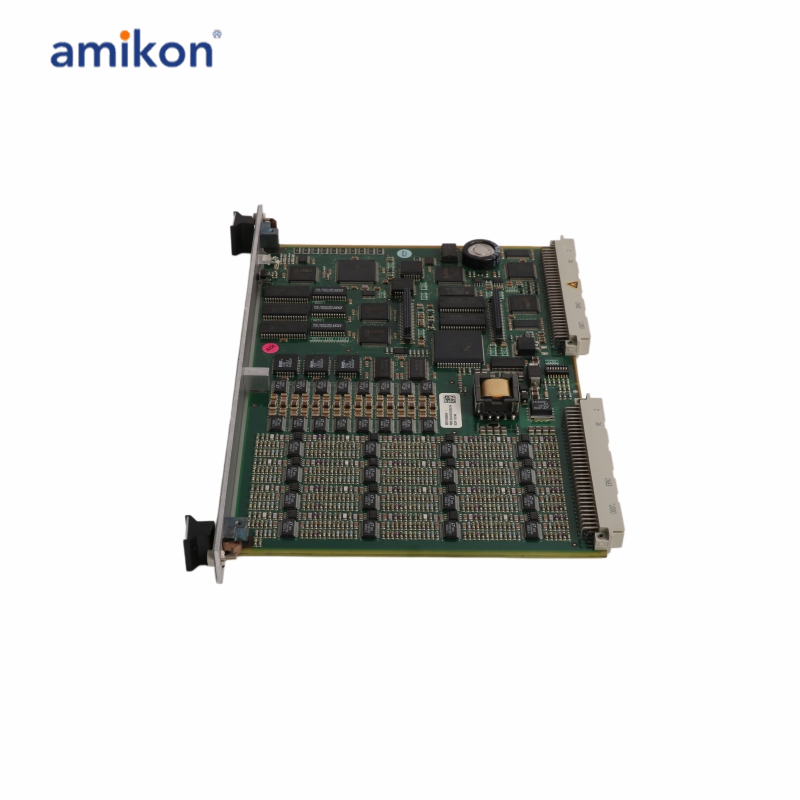

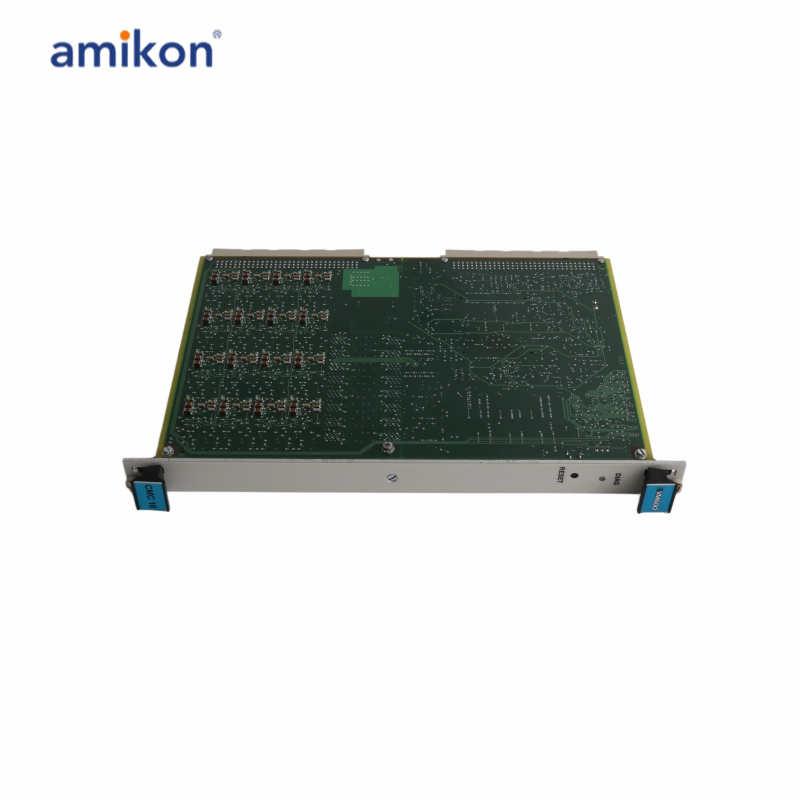

The Vibro-Meter (Meggitt) VM600 CMC16 Condition Monitoring Card (Part Number: 200-530-022-014) is an industrial-grade, high-density data acquisition and processing module designed for advanced machinery diagnostics.

The CMC16 utilizes 16 parallel 24-bit Analog-to-Digital Converters (ADCs) matched with programmable anti-aliasing filters. This hardware arrangement prevents high-frequency noise distortion and supports a maximum single-channel sampling rate of 100 kHz. For deep frequency-domain analysis, the onboard digital signal processor (DSP) generates high-resolution 3200-line FFT spectra directly on the card. To isolate specific mechanical faults (such as oil whirl, shaft misalignment, or structural resonance), users can isolate up to 10 independent frequency bands per channel. Each band can be monitored using 6 highly customizable software alarms equipped with individual time-delay filters and hysteresis deadbands to minimize false warnings.

Frequently asked questions：

What is the primary function of the VM600 CMC16 card?
It is a Condition Monitoring Card and Communications Management Controller used for advanced machinery vibration analysis, data acquisition, and diagnostics.

How many channels does the CMC16 card support?
It features 16 independently configurable dynamic input channels.

Can the CMC16 process speed or tachometer signals?
Yes. The first 4 channels can be dual-configured to accept tachometer (Tacho) or phase reference signals.

How many speed pulses per revolution can the card calculate?
It can process up to 128 pulses per revolution for advanced speed and phase tracking.

Product Applications

Thermal Power Plants
Oil & Gas & Petrochemical
Iron & Steel & Metallurgy
Hydropower & Nuclear Power
