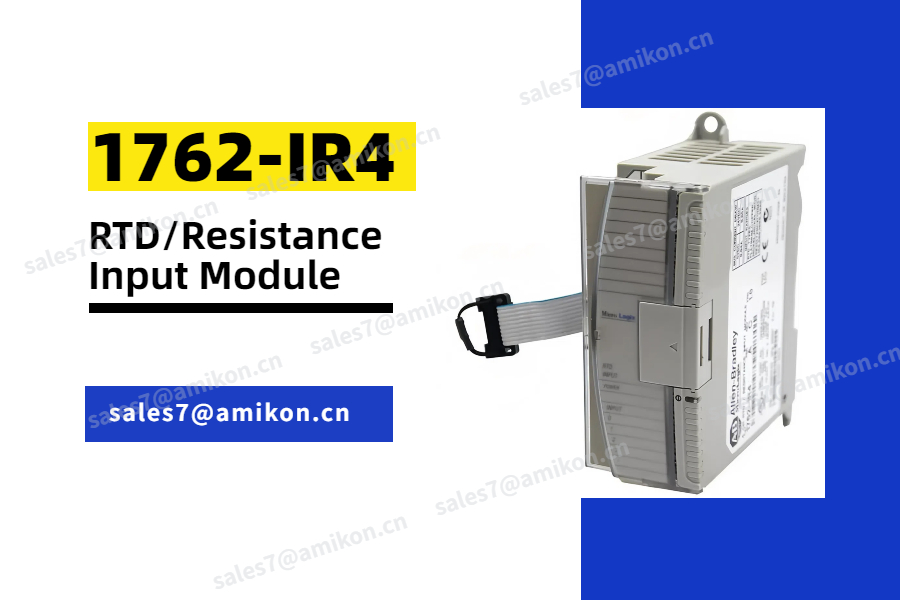

1762-IR4 RTD/ Resistance Input Module

December 26,2024

Introduction to the 1762-IR4 RTD/Resistance Input Module
The 1762-IR4 is a versatile analog input module that plays a crucial role in applications requiring accurate temperature measurement and resistance monitoring. Designed to interface seamlessly with Resistance Temperature Detectors (RTDs) and other resistance-generating devices, this module is ideal for precise readings in environments where temperature and displacement measurements are vital.

Key Features and Compatibility
One of the standout features of the 1762-IR4 is its support for various types of RTDs, making it adaptable to a wide range of industrial applications. The module is compatible with several RTD types, including Platinum, Copper, Nickel, and Nickel-Iron RTDs, with support for different resistance values. It can also handle resistance-generating devices, offering flexibility in how it interfaces with various systems.

Supported RTD Types:
Platinum (385): 100Ω, 200Ω, 500Ω, 1000Ω
Platinum (3916): 100Ω, 200Ω, 500Ω, 1000Ω
Copper (426): 10Ω
Nickel (672 & 618): 120Ω
Nickel-Iron (518): 604Ω
Additionally, the 1762-IR4 supports 2-wire, 3-wire, and 4-wire RTDs, providing ample options for connection setups.

Signal Conversion and Processing Capabilities
The 1762-IR4 module excels in converting analog signals into digital data. This data is processed and stored in registers, offering flexibility in how the values are formatted. Whether in raw/proportional form, engineering units (with x1 or x10 scaling), or scaled for PID control, this module ensures precise data output. Additionally, the module supports input filtering, allowing for noise reduction and improved signal conditioning.

Expansion Capabilities and Installation
The 1762-IR4 serves as an expansion module, enhancing the capabilities of compatible controllers. It features four RTD/resistance input channels, providing sufficient input options for many industrial applications. Installation is straightforward, as the module can be mounted using either DIN rail or panel-mounting techniques, making it a flexible solution for compact installations. The module’s compact dimensions of 90 x 87 x 40 mm and low power dissipation (1.5 Watts) make it ideal for environments with limited space.

Versatility in Applications
Whether used in temperature sensing or for measuring displacement in devices such as cylinders or clamping mechanisms, the 1762-IR4 offers a reliable solution for many industrial processes. Its ability to process multiple RTD types and resistance ranges, combined with its flexible signal output options, ensures its suitability for a wide range of industries including manufacturing, automation, and process control.

Conclusion

In conclusion, the 1762-IR4 RTD/Resistance Input Module is an essential tool for industries requiring precise temperature and resistance measurements. With its extensive compatibility, flexible signal processing capabilities, and ease of installation, this module is a valuable addition to any automated system. Whether you're monitoring temperature, displacement, or other critical parameters, the 1762-IR4 offers the reliability and functionality needed to ensure optimal system performance.
