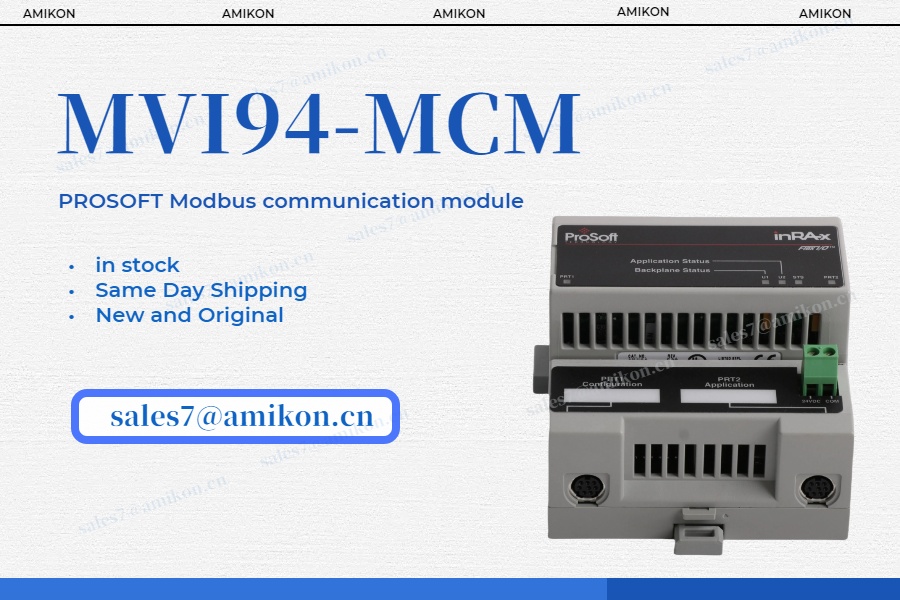

MVI94-MCM | PROSOFT Modbus communication module

December 25,2024

1. What is the MVI94-MCM Modbus Communication Module?

The MVI94-MCM is an advanced Modbus Master/Slave Network Interface Module that facilitates smooth communication between Flex processors and Modbus-compatible devices. It allows for seamless integration, enabling devices that support Modbus to communicate efficiently with each other. As part of the Flex I/O series, this module is engineered to optimize industrial automation systems.

2. Key Features of the MVI94-MCM
One of the standout features of the MVI94-MCM is its single-slot design, which is compatible with 1794 backplanes, offering versatile installation options. It operates with a 20 mA backplane current load at 5 Volts, and an external power supply of 12 to 24 Volts DC is required for its functionality. This configuration allows for flexible setups in various industrial environments.

Moreover, the MVI94-MCM is built to withstand challenging conditions. It can handle temperatures ranging from 0 to 55 degrees Celsius during operation and -40 to 85 degrees Celsius in storage. It is also equipped with shock absorption capabilities to handle 30 grams during operation and up to 50 grams when not in use. The module can function efficiently in a relative humidity range of 5 to 95%, ensuring durability and reliability in demanding environments.

3. Communication and Data Transfer Capabilities
For communication, the MVI94-MCM requires a communication program to send and receive data between the module and a computer. HyperTerminal is the recommended software for this process. The module facilitates the storage and transfer of over 5000 registers, ensuring seamless data exchange between the processor and connected devices.

Additionally, the MVI94-MCM comes with user-definable memory and an application port, which can emulate a Modbus master or slave device. This flexibility is ideal for various configurations, making it a versatile tool for industrial automation tasks.

4. Benefits of Using the MVI94-MCM
The MVI94-MCM offers several benefits to users in automation systems. With its robust design and versatile communication capabilities, it is an excellent choice for integrating Modbus devices into Flex processor networks. Whether used as a Modbus master or slave, this module ensures smooth data flow, making it a vital component in industrial settings.

The ability to define memory usage and emulate Modbus devices further enhances its adaptability, allowing businesses to meet diverse communication needs without additional hardware. Its compatibility with existing systems and ease of installation make it a reliable and efficient choice for any automation project.

5. Installation and Setup of the MVI94-MCM
Installing the MVI94-MCM module is simple and efficient. It is designed to be installed in any slot of a 1794 backplane, ensuring flexibility for various system configurations. After installation, the module requires an external power supply of 12 to 24 Volts DC to operate effectively.

To initiate communication, users need to configure the module using a communication program such as HyperTerminal. Once set up, the MVI94-MCM will enable smooth data transfer between connected devices and the processor, helping streamline automation processes.

Conclusion

The MVI94-MCM Modbus communication module is a versatile and reliable solution for integrating Modbus-compatible devices with Flex processors. With its robust features, ease of installation, and ability to emulate both Modbus master and slave devices, it is an essential component for modern industrial automation systems. Whether you are looking to streamline communication, ensure data transfer reliability, or integrate various devices, the MVI94-MCM is a powerful tool to meet your needs.
