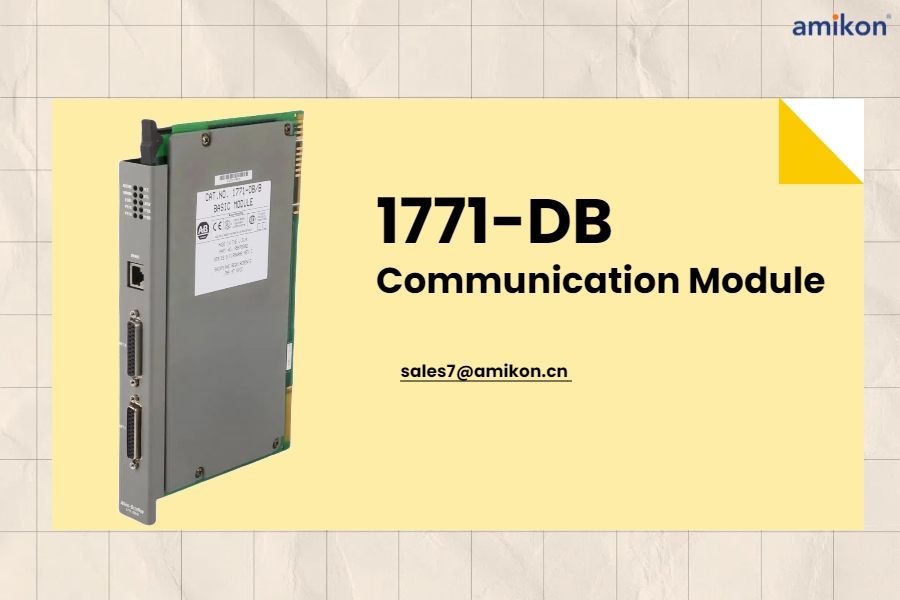

1771-DB Communication Module

January 22,2025

Seamless Integration with Multiple Devices
The 1771-DB is a powerful PLC 5 Basic Module designed to integrate effortlessly with various devices, including RS-232, RS-422, RS-485, and remote processors. It serves as the communication bridge between the PLC-5 processor and the 1771 backplane, enabling smooth data transfer. Additionally, the module supports remote device communication via a DH-485 network, offering flexibility in industrial settings.

Optimized for Remote Communication Applications
The 1771-DB module excels in a variety of remote communication applications, making it the ideal choice for connecting to computers, printers, modems, and other third-party devices. This functionality ensures that data can be transferred efficiently between systems, while the 500V DC isolation voltage guarantees robust protection for the devices involved. With its 32 KB battery-backed RAM and 24 KB of available user memory, it allows for secure and reliable data handling.

Fast and Reliable Communication Speeds
Supporting communication rates from 300 bps to 19.2 Kbps, the 1771-DB offers the flexibility to adjust speed according to the application’s needs. The module’s backplane current load varies between 0.75A (when the DH-485 interface is active) and 0.65A (when the DH-485 port is not in use), making it energy-efficient while maintaining high performance.

Advanced Features for Enhanced Productivity
This module is packed with advanced features designed to boost productivity. It includes a time-of-day clock with a 10ms resolution, which is perfect for applications requiring precise time tracking. Its maximum power dissipation of 4W ensures that the module operates efficiently without overheating. The module is compatible with both BASIC and C programming for greater flexibility in programming.

Efficient Data Transfer and Troubleshooting
The 1771-DB is equipped with block-transfer capabilities for efficient data movement between the processor’s data table and the module’s memory, significantly reducing user programming efforts. In addition, it includes eight predefined indicators and two user-defined indicators, enabling easy diagnostics and troubleshooting.

Conclusion

The 1771-DB Basic Module is an excellent solution for anyone looking to streamline their PLC communication processes. With its flexible integration options, efficient data transfer capabilities, and robust design, it ensures reliable and fast communication in various industrial environments. Whether you are connecting remote devices or optimizing your communication systems, this module is a crucial component in achieving enhanced operational efficiency.
