IC200CPUE05 - VersaMax CPUE05 Controller

January 21,2025

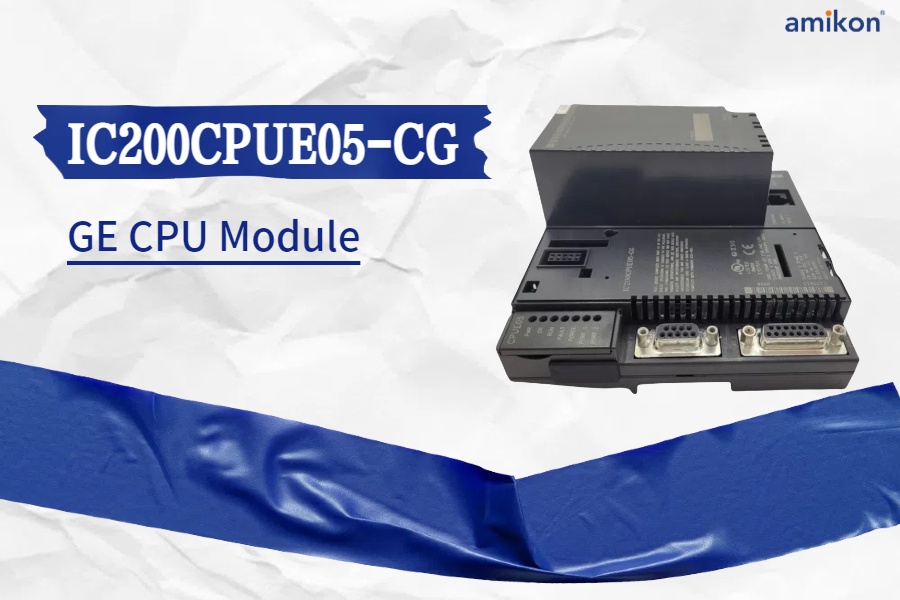

Introduction to the IC200CPUE05-CG CPU Module
The IC200CPUE05-CG CPU module, part of the GE VersaMax series, stands out as a powerful and versatile central controller for industrial automation systems. Designed to handle complex processes, this CPU module ensures seamless operation for large-scale automation systems that require precise control over numerous I/O modules. Whether you're managing a factory floor or an extensive industrial process, the IC200CPUE05-CG offers the flexibility and reliability you need.

Key Features That Set the IC200CPUE05-CG Apart
The IC200CPUE05-CG is equipped with features that make it ideal for a wide range of industrial automation applications. Here are some key features:
Handling up to 2048 I/O Points: The module is capable of managing up to 64 I/O modules, which allows it to support large-scale operations with a high number of input/output points.
Ethernet Connectivity: It includes a built-in Ethernet interface that supports 10BaseT communication, enabling effortless integration with other GE Fanuc PLCs or host computers. The Ethernet port supports both half and full-duplex operation for efficient data exchange.
Versatility in Integration: Compatible with a wide range of I/O modules within the VersaMax series, this CPU module offers high flexibility for system expansions or future upgrades.

Serial Ports for Enhanced Communication and Configuration

The IC200CPUE05-CG CPU module comes with two critical serial ports that enhance the flexibility and operational scope of the system:
RS-232 Port (Port 1): This port is used for various CPU operations, supporting Serial I/O, SNP slave, and RTU slave modes. The 9-pin female connector ensures smooth communication, and the system automatically switches to SNP slave mode when required.
RS-485 Port (Port 2): Equipped with a 15-pin female D-sub connector, this port is designed for programming, configuration, and updates. It can also provide power (up to 100 mA at 5VDC) to external devices, adding another layer of convenience and functionality.

Operational Flexibility for Seamless Control

The IC200CPUE05-CG CPU module is built with operational flexibility in mind, offering features that simplify system management:
Ethernet Restart Pushbutton: This feature allows users to adjust the CPU’s operating mode via the Ethernet Restart pushbutton, providing an easy way to reset or modify system settings without needing to shut down the entire operation.
Automatic Mode Reversion: If the CPU enters Stop mode, Port 1 automatically reverts to SNP slave mode for continuous communication. This automatic mode reversion ensures that the system maintains control even in critical moments.

EMC Installation Requirements for Optimal Performance

To ensure the best performance and compliance with regulatory standards, proper installation is essential. The IC200CPUE05-CG requires that the control system housing the module be mounted in a metal enclosure when three or more modules are used. The following installation practices are recommended to meet EMC (electromagnetic compatibility) requirements:
Grounding and Conduit Installation: The metal enclosure should be properly grounded to nearby surfaces, and external wiring must be routed through grounded metal conduit.
Electrostatic Discharge (ESD) Protection: Personnel should use grounded ESD straps or equivalent methods to avoid any static discharge during installation or maintenance.

Conclusion

The IC200CPUE05-CG CPU module from GE's VersaMax series provides industrial automation systems with the flexibility, reliability, and scalability needed to manage complex processes. Its advanced features such as Ethernet connectivity, versatile serial ports, and operational flexibility make it an ideal solution for modern industrial control systems. By following proper EMC installation requirements, you can ensure that the module operates at its best, providing continuous and efficient control for your automation needs.
