2080-IF4 Analog Plug-in Module

January 03,2025

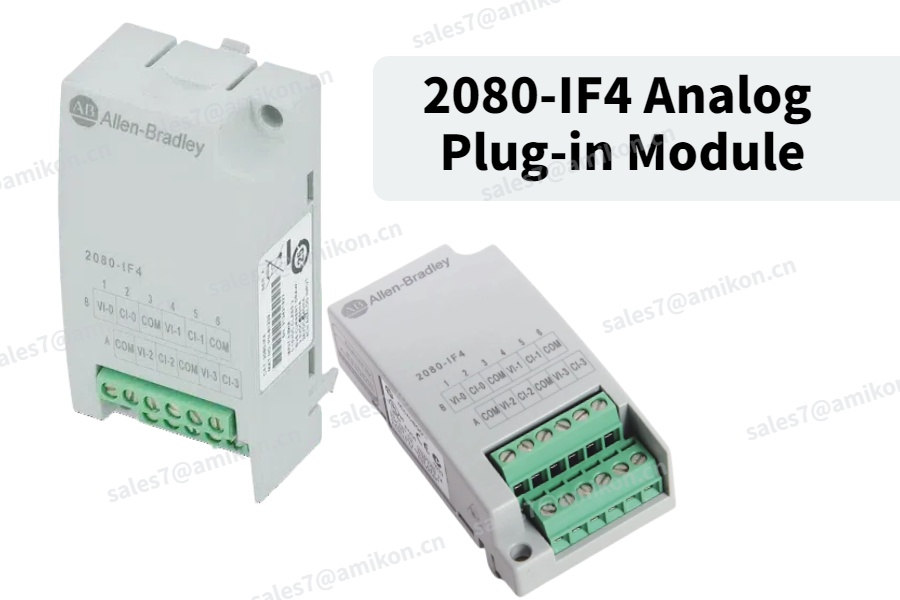

Introduction to the 2080-IF4 Module
The 2080-IF4 module is a robust, 4-channel, non-isolated, unipolar voltage/current analog input plug-in module. Designed as an extension for Allen-Bradley's Micro820, Micro830, and Micro850 series controllers, it provides increased I/O functionality without requiring additional rack space. This feature makes it an excellent choice for compact control systems where space efficiency is crucial.

Key Features and Capabilities of the 2080-IF4
The 2080-IF4 module delivers unparalleled flexibility with its configurable analog input channels. Each of the four channels can be set up to measure either unipolar voltage or current inputs. For unused channels, an option to disable them ensures efficient resource utilization and minimizes potential noise or interference.

Precision Measurements
The module supports a voltage input range of 0 to 10 Volts and a current input range of 4 to 20 mA. With a 12-bit resolution, it provides precise measurements, allowing users to achieve high accuracy in their control applications. For voltage inputs, the resolution enables detection as fine as 2.44 mV, while for current inputs, it reaches an impressive 0.0049 mA. This precision is essential for processes where even minor deviations can impact performance or safety.

Broad Compatibility
The 2080-IF4 module can interface seamlessly with a variety of sensors, devices, and current-loop transmitters. This compatibility makes it an excellent choice for Closed Loop Control Systems, including regulatory PID (Proportional-Integral-Derivative) control systems. Such systems are critical in industries like chemical processing, oil & gas, and motion control, where maintaining consistent performance is non-negotiable.

PID Control Systems
In regulatory PID control systems, the 2080-IF4 plays a pivotal role by accurately measuring input signals from sensors. This precision enables the system to make precise adjustments, maintaining desired operating conditions. Whether it's managing temperature in a chemical reactor or regulating pressure in an oil pipeline, the 2080-IF4 ensures reliable performance.

Motion Control Applications
Motion control systems often rely on real-time data from encoders and other sensors to ensure accurate positioning and speed control. The high-resolution input capability of the 2080-IF4 ensures that these systems operate smoothly, reducing the risk of errors or inefficiencies.

Operating Environment and Durability
The 2080-IF4 is built to withstand challenging industrial environments. Its recommended operating temperature range spans from -20°C to 65°C (-4°F to 149°F), making it suitable for applications in both cold and hot conditions. This durability ensures consistent performance across a variety of settings, from outdoor installations to high-temperature manufacturing facilities.

Space-Efficient Design
Another significant advantage of the 2080-IF4 is its compact, plug-in design. By integrating directly with the Micro820, Micro830, or Micro850 controllers, it eliminates the need for additional rack space. This feature is particularly beneficial for systems where physical space is at a premium.

Conclusion
The 2080-IF4 module is an exceptional solution for extending the analog input capabilities of Allen-Bradley Micro820, Micro830, and Micro850 controllers. Its precise measurement capabilities, compatibility with diverse devices, and rugged design make it a reliable choice for industrial automation. Whether used in regulatory PID control, motion control, or other demanding applications, the 2080-IF4 delivers consistent and efficient performance.

For industries seeking to enhance their automation systems, the 2080-IF4 module represents a valuable investment in precision and reliability.
