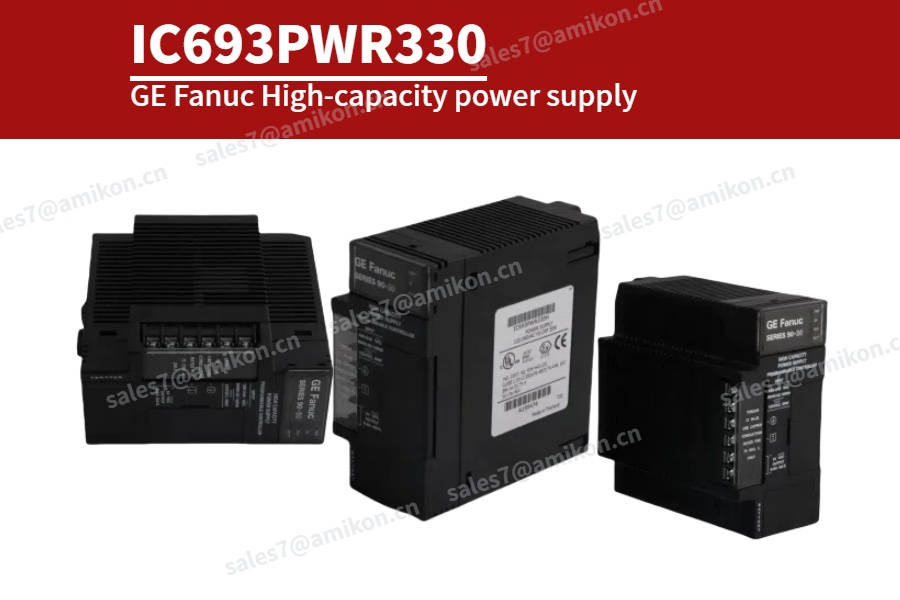

IC693PWR330 GE Fanuc High-capacity power supply

January 02,2025

Introduction to the IC693PWR330 Power Supply
The IC693PWR330 is a high-capacity power supply module designed for the Series 90-30 Programmable Logic Controller (PLC) product family. It offers a significant upgrade over standard power supplies, making it ideal for situations where increased power capacity is needed, particularly in larger PLC systems. The module is designed to deliver reliable and consistent power for multiple components in industrial automation applications.

Design and Installation
The IC693PWR330 is intended to be installed in the leftmost slot of the rack. This specific placement is required for the proper operation of the power supply and to ensure effective power distribution across the entire system. Its design allows it to deliver power to the backplane, enabling the functionality of the modules connected to it.

Power Output and Distribution
The IC693PWR330 provides a total load capacity of 30 watts, distributed across three outputs. These outputs are:

+5 VDC Output: Powers the core PLC modules.
+24 VDC Relay Power Output: Provides power for the Series 90-30 Output Relay’s electronic circuitry.
Isolated +24 VDC Output: Used internally by some modules and can supply external power to 24 VDC Input cards.
Each of these outputs has its own maximum power rating, ensuring that the system receives the appropriate power for its components.

Conclusion

The IC693PWR330 GE Fanuc High-Capacity Power Supply is an essential module for larger PLC systems, particularly those requiring a higher current capacity. By providing reliable power distribution to various components, it ensures the smooth operation and long-term performance of Series 90-30 PLC systems.
