PM867K02 - AC 800M Controllers

December 24,2024

PM867K02 - AC 800M Controllers

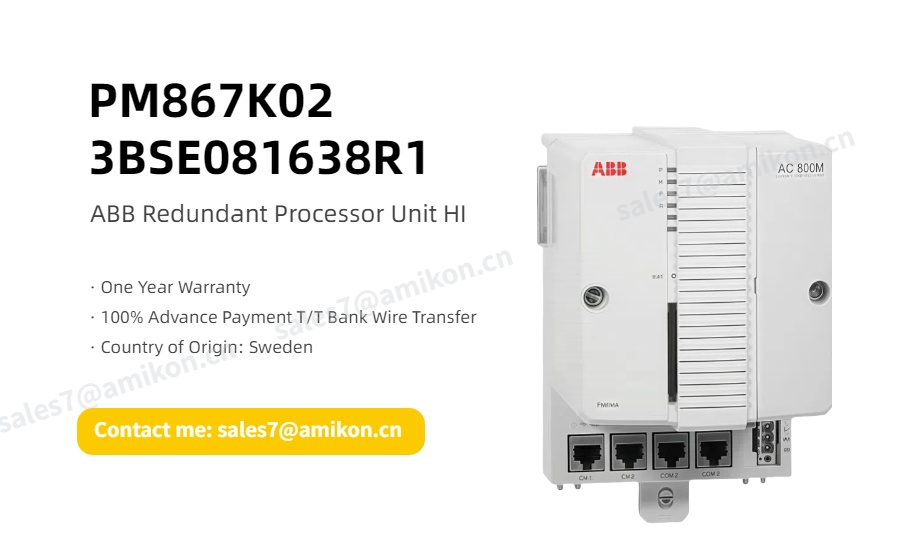

What is the PM867K02 Redundant Processor Unit?
The PM867K02 3BSE081638R1 is a highly reliable redundant processor unit developed by ABB, specifically designed for the AC 800M High-Integrity controller. This advanced unit is engineered to deliver superior performance and safety in industrial automation environments, making it a key component for critical process control systems.

The processor unit is equipped with a CPU board that includes a microprocessor, RAM memory, a real-time clock, LED indicators, an INIT push button, and a CompactFlash interface. These features enable the PM867K02 to handle complex automation tasks with precision and reliability.

Connectivity and Interfaces
The PM867K02 features a robust array of connectivity options to ensure seamless integration into control networks. Its baseplate includes:
-Two RJ45 Ethernet ports (CN1, CN2): Designed for connections to the Control Network, providing robust and reliable data communication.
-Two RJ45 serial ports (COM3, COM4):
COM3: An RS-232C port with modem control signals.
COM4: An isolated port used for configuration tools.

These interfaces ensure flexibility and compatibility with various communication and configuration requirements.

High Integrity and Redundancy
The PM867K02 supports CPU redundancy, which enhances system availability and reliability. Redundancy is implemented across the CPU, CEX-Bus, communication interfaces, and S800 I/O, ensuring continuous operation even in the event of component failures.
-The unit’s high-integrity functionality is further bolstered by:
The inclusion of an SM812 module.
SIL-certified software that adheres to IEC 61508 standards.
This combination ensures the controller meets stringent safety requirements, certified up to SIL 3, making it suitable for business-critical and safety-critical applications without compromising safety integrity.

Key Features and Benefits
The PM867K02 offers numerous features and benefits, including:
-Safety Certification: The AC 800M High-Integrity controller, when paired with the PM867K02, is SIL 2 and SIL 3 certified by TÜV.
-Broad Compatibility: Supports S800 I/O High-Integrity modules and is compatible with Control Builder in the 800xA system (version 6.0.2 and onwards).
-Redundant Ethernet Ports: Built-in redundant Ethernet communication ports ensure reliable network performance.
-Comprehensive Package: The PM867K02 package includes all necessary components for streamlined setup and operation.

Package Contents
The PM867K02 package is thoughtfully designed to provide everything needed for installation and operation. It includes:
2 PM867 CPU units
2 TP830 baseplates (width: 115mm)
2 TB807 ModuleBus terminators
1 TK850 CEX-bus expansion cable
1 TK851 RCU-Link cable
2 memory backup batteries (one for each CPU)
This comprehensive package ensures easy deployment and minimal setup time.

Why Choose the PM867K02?
The PM867K02 offers a reliable, high-performance solution for industrial automation systems. Its ability to seamlessly combine safety-critical and business-critical process controls makes it an ideal choice for industries requiring high integrity and availability. With features such as redundancy, SIL certification, and robust communication options, this processor unit delivers unparalleled value and dependability.

Conclusion

The PM867K02 3BSE081638R1 ABB Redundant Processor Unit is a cornerstone of modern industrial automation systems, combining advanced safety features with reliable performance. Its extensive certification, robust design, and comprehensive package make it a preferred choice for critical applications. By integrating the PM867K02 into your automation setup, you can ensure seamless operation, enhanced safety, and long-term reliability.
