Product Specifications

Part Number	1336-WB035
Weight	3.77 kg
Rated Voltage	380/415/460V AC
Rated RMS Current	35 A
DC Bus Turn-on Voltage	750 V DC
Max Output Power Dissipation	115 W
Chopper Transistor	IGBT
Min Brake Resistor	9 Ω
Initial Contact Resistance	≤100 mΩ
Applicable Altitude	1000 m
Humidity	5%~95%, non-condensing
Storage Temperature	-40°C ~ +70°C

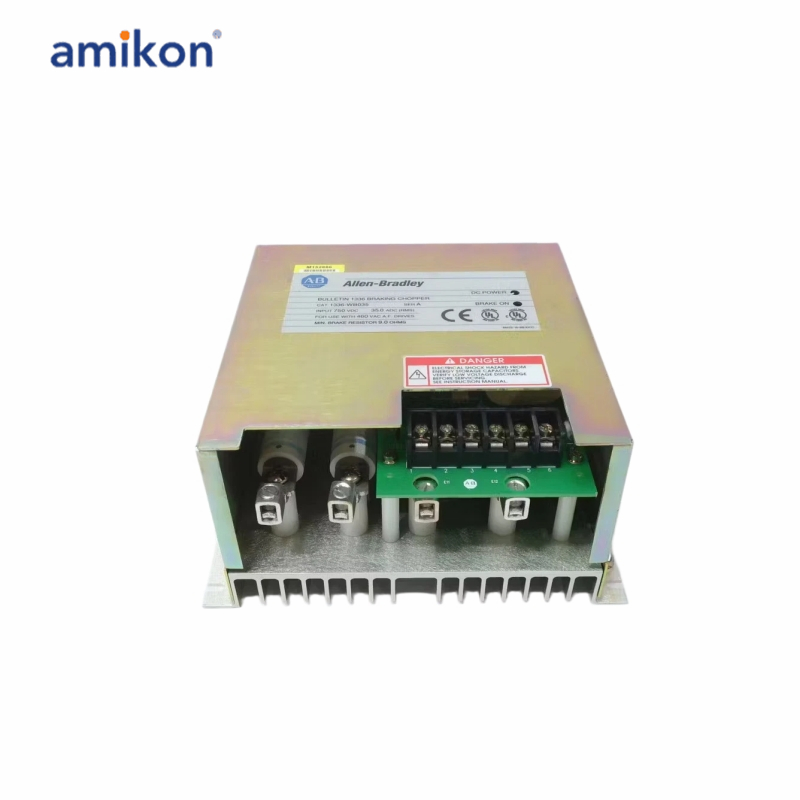

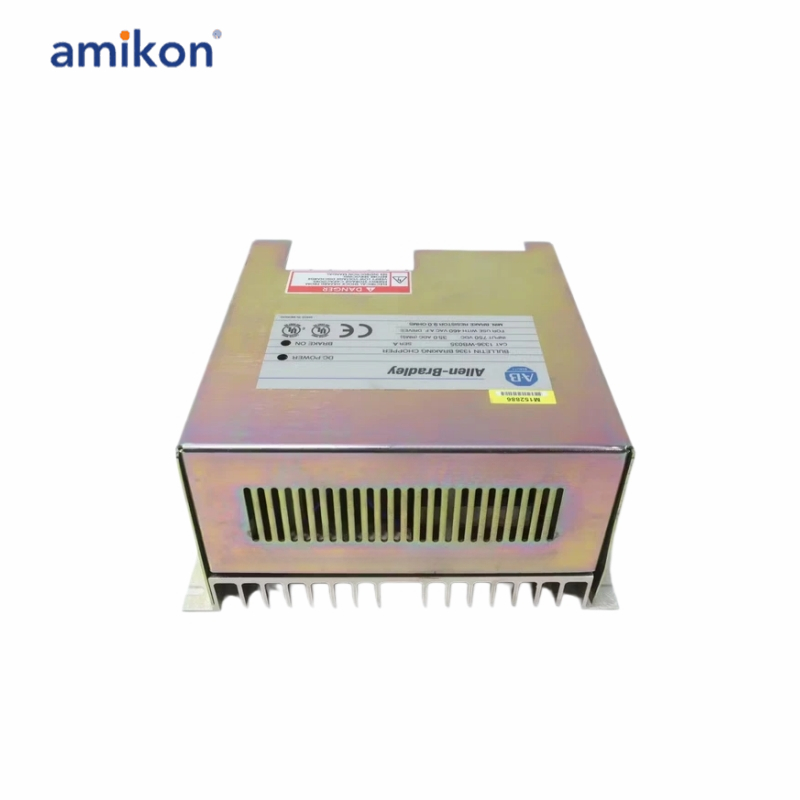

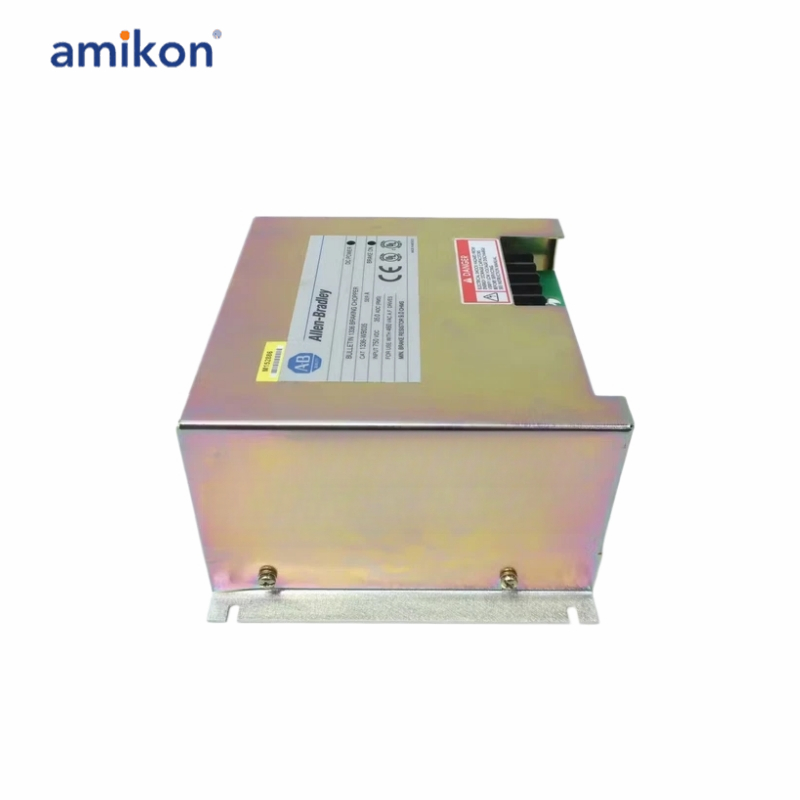

The 1336-WB035 from serves as a dynamic brake chopper, focusing on enhancing the performance of power systems. Accepting nominal voltages of 380, 415, and 460 volts AC, it is engineered to manage a rated RMS current of 35 Amperes. This component plays a critical role in controlling deceleration in machinery, contributing to safer and more efficient operations.
A notable feature is its chopper transistor, which utilizes Insulated Gate Bipolar Transistor (IGBT) technology to regulate current effectively. The device is built to handle a DC bus turn-on voltage set at 750 volts DC while ensuring maximum output power dissipation at 115 watts. The minimum brake resistor value is specified at 9 ohms, optimizing performance during braking.
The initial contact resistance is kept to a minimum threshold of 100 mΩ or less, ensuring reliable connectivity. This chopper can be mounted either on a panel or chassis, offering installation flexibility. Designed for operation at altitudes up to 1000 meters, it adapts well to various environments.

Frequently asked questions：

Q1: What is the 1336-WB035 Dynamic Brake Chopper?
A1: It is a dynamic brake chopper used in industrial drive systems to dissipate regenerative energy generated during motor braking operations.

Q2: What is the 1336-WB035 rated RMS current of this brake chopper?
A2: The 1336-WB035 rated RMS current is 35 A.

Q3: What is the 1336-WB035 DC bus turn-on voltage?
A3: The 1336-WB035 DC bus turn-on voltage is 750 V DC.

Q4: What is the 1336-WB035 maximum output power dissipation?
A4: The 1336-WB035 maximum output power dissipation is 115 W.

Q5: What is the 1336-WB035 applicable installation altitude?
A5: The 1336-WB035 applicable altitude is up to 1000 meters.

Product Applications

Mining and Material Handling
Petroleum, Chemical, and Water Treatment
Pulp and Paper Manufacturing
Metal Processing
