2711P-K12C4A8 Operator Terminal

Product Specifications

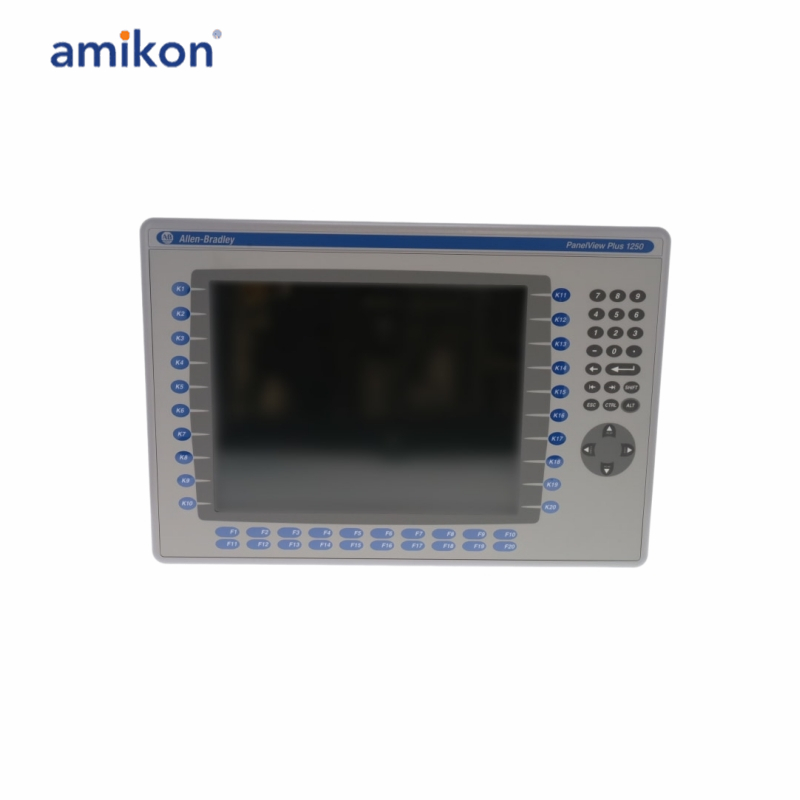

The 2711P-K12C4A8 PanelView Plus 6 Terminal facilitates the user’s ability to monitor and control machines with its interactive graphics display module. It has flexible configuration through its separate , display, and communication modules. The 2711P-K12C4A8 terminal comes with a 12.1-inch active-matrix backlit screen with a keypad input. The keypad has a stainless-steel membrane for protection and navigation, numeric, and function keys. It has an 800 x 600 resolution and 18-bit color graphics. It also has 512 MB each of RAM and nonvolatile memory for data storage. It measures 20 x 14 x 8 inches and weighs 10 lbs. The 2711P-K12C4A8 runs on 100 - 240V AC and at 50 - 60 Hz. For communication, it comes with Ethernet and RS-232 serial ports and with optional DH-485, DH+, and ControlNet modules. The 2711P-K12C4A8 also has 2 USB ports for connecting external devices such as mice, keyboards, printers, and flash drives. It also supports a Secure Digital (SD) card for data backup and it includes a real-time clock for timestamping critical data. The clock battery’s minimum lifespan of 4 years. The 2711P-K12C4A8 is superior to its predecessors in the areas of transition rate, processor speed, memory, and illumination. The EtherNet/IP (Ethernet Industrial Protocol) is an open industrial network that supports real-time I/O messaging, as well as message exchange. The Ethernet port connects to a controller on an EtherNet/IP network by using both the network and standard Ethernet connections. This port can work with application transfers and printing as well. The EtherNet/IP screen displays and allows the user to modify some of the EtherNet/IP communication settings for a PanelView terminal.

Frequently asked questions：

1.What is the operator input type for the 2711P-K12C4A8 PanelView Plus 6 Model 1250 Terminal?
The 2711P-K12C4A8 PanelView Plus 6 Model 1250 Terminal has a keypad operator input.

2.How much nonvolatile memory is on the 2711P-K12C4A8 PanelView Plus 6 Model 1250 Terminal?
The 2711P-K12C4A8 PanelView Plus 6 Model 1250 Terminal has 512 megabytes of nonvolatile memory and about 79 megabytes of available user memory.

3.Does the 2711P-K12C4A8 capable of opening manuals in PDF format?
The 2711P-K12C4A8 has a resolution of 800 x 600 in 18-bit color graphics.

4.How does the 2711P-K12C4A8 operator terminals connect with other devices?
The 2711P-K12C4A8 communicate with devices via the RS232 and Ethernet communication interfaces.

5.My controller has Remote I/O interface, does this operator terminal support this protocol?
Yes, Remote I/O (RIO) is supported using additional communication modules.

Product Applications

Automotive Manufacturing Industry
Glass Production and Processing
Chemical and Water Treatment
Metallurgy and Steel Industry
