Product Specifications

Part Number	1394C-SJT10-D
Module Type	System
Power Rating	10 Kilowatt
Input Phase	3 Phase
Series Enhancements	Better Ring Rates and SERCOS Communication
Factory-Installed Options	SERCOS Network
Input Voltage	360-480AC Volts
Nominal Bus Output Voltage 380/460 Volts	530/680 Volts DC
Continuous Power Output 380/460 Volts	8/10 Kilowatts
Peak Power Output	28 Kilowatts
Efficiency	99%
Continuous Current Output	14.73 Amperes
Peak Current Output	29.46 Amperes
Line Loss Ride Through	20 ms
Rated AC Input Voltage	324-528 Volts AC, 50-60 Hertz, 3 Phase
AC Input Current	13.0 Amperes

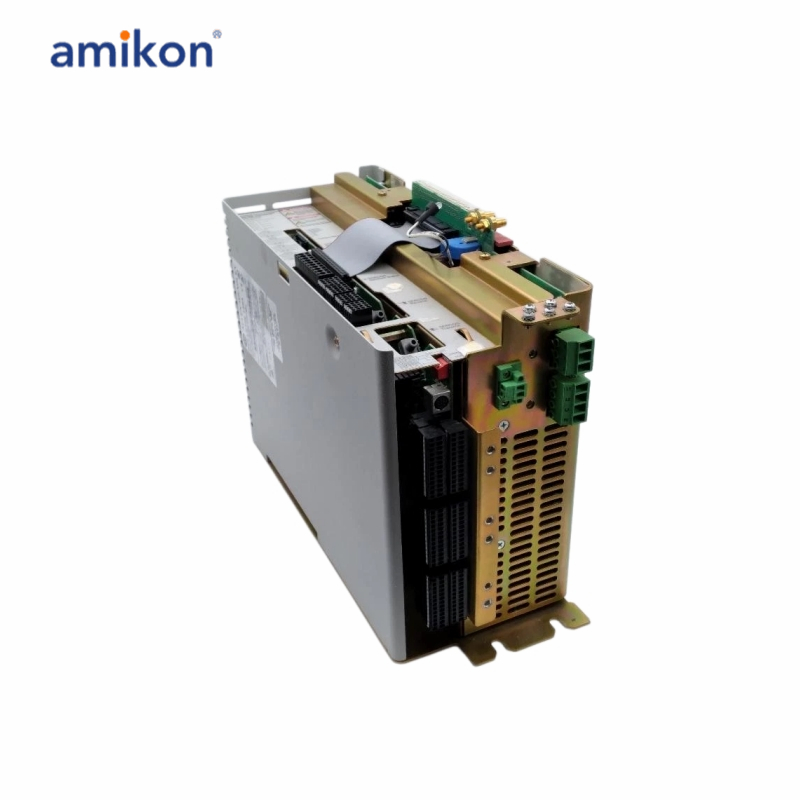

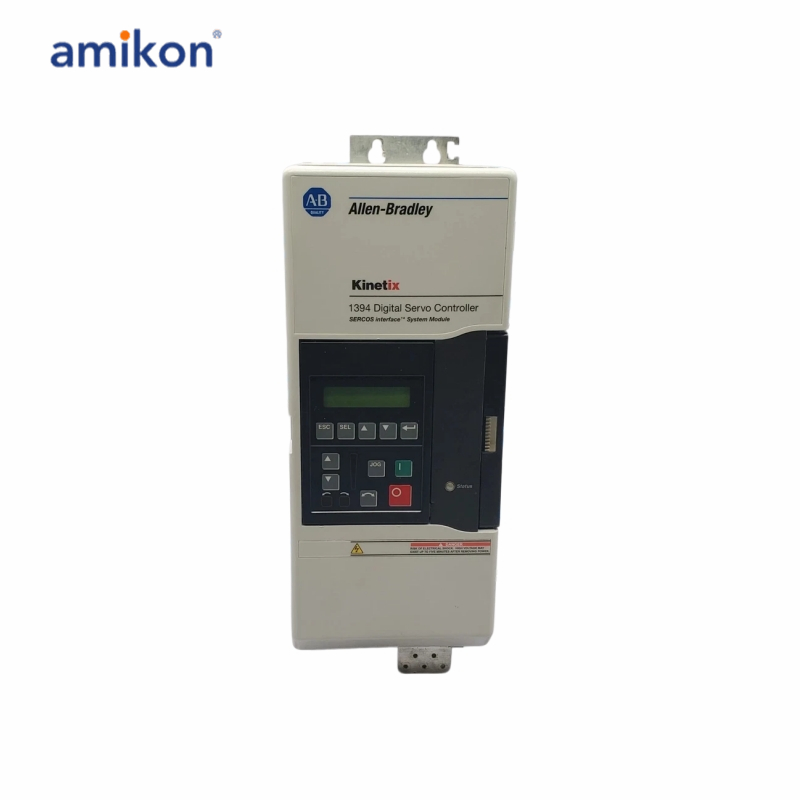

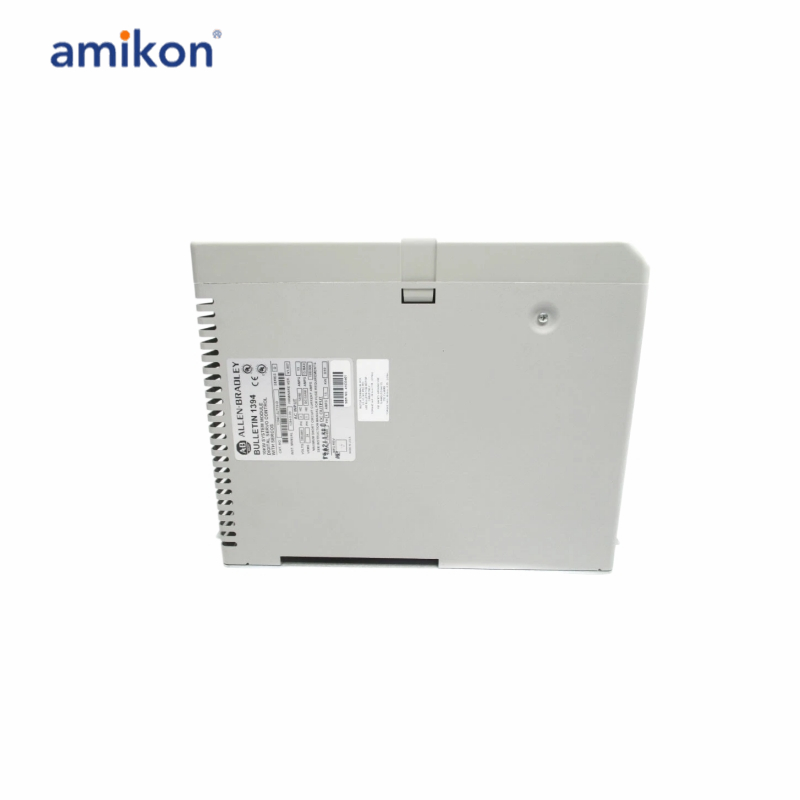

The 1394C-SJT10-D is a SERCOS interface system module. It has 4 axes and a three-phase input and it comes with improved SERCOS communication and ring rates and a SERCOS Network factory-installed option. System module connectors in the 1394C-SJT10-D module are the main input power, shunt power, logic power, single point bond bar, motor/auxiliary feedback, analog and relay outputs, discrete input, SERCOS transmit and receive, and DPI/SCANport. Use the connectors to wire the main input power and logic power, and use the connector plugs that match the connector housings.

The 1394C-SJT10-D is a multi-axis motion control that can work as an integrated motion controller and drive system (GMC), a 9/Series CNC digital interface drive system, an integrated 9/440 CNC system, an analog servo drive system, or a SERCOS servo drive system. It has 99% efficiency and weighs 23.5 pounds. It also has an internal shunt resistor. The 1394C-SJT10-D’s voltage is 324 to 528V AC at 50 to 60 Hertz and its line loss ride through is 20 milliseconds. It has a peak inrush current of 8 Amps but it is limited by an 80-ohm resistor.The input current of the 1394C-SJT10-D is 13 Amps, the continuous current output is 14.73 Amps, and the intermittent current output is 29.46 Amps. The 1394C-SJT10-D also has a nominal bus output voltage of 530 to 680 Volts DC and an input voltage of 360 to 480 Volts AC. Its peak power output is 28 kW and continuous power output is 8 to 10 kW. The continuous current output of the interface system is 14.73 Amps, while the intermittent current output is 29.46 Amps. The 1394C-SJT10-D has a 345 µF capacitance and a 750 µF inductance.

Frequently asked questions：

What is the 1394C-SJT10-D?
It is a 10kW multi-axis AC servo system module with digital SERCOS communication.

What is the system power rating?
This system is rated for 10 kW continuous power output.

Can it replace a 1394C-SJT10-D?
Yes, it can upgrade a 5kW system, provided the dimensions and wiring tolerate the larger 10kW footprint.

What input voltage does it require?
It requires a 360V to 480V AC, 3-phase, 50/60 Hz input power supply.

Product Applications

Packaging machinery factory
Printing and laminating equipment factory
Electronic assembly and robotics factory
Textile and cable processing factory
