Product Specifications

Part Number	1771-A4B
Number of I/O Slots	16
Max Backplane Current	24 Amperes (at 5 Volts DC)
Relative Humidity	5-95% non-condensing
Operating Temperature Range	32 to 140 °F (0 to 60 °C)
Storage Temperature Range	-40 to 185 °F (-40 to 85 °C)
Vibration	2 g (at 10-500 Hz)
Power Supply Modules	3-8 Amperes
External Power Supplies	6.5-16 Amperes

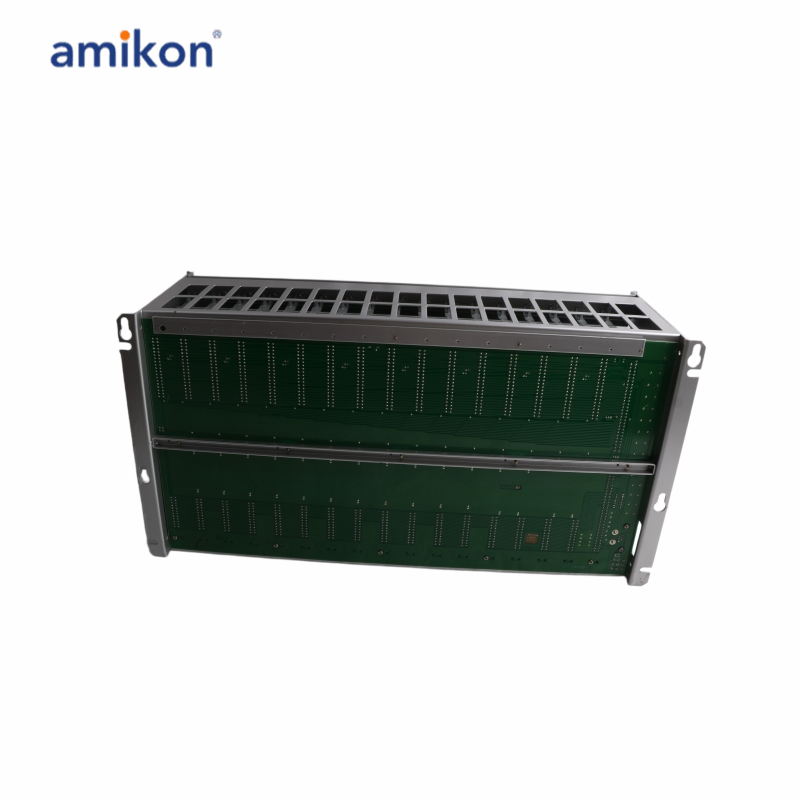

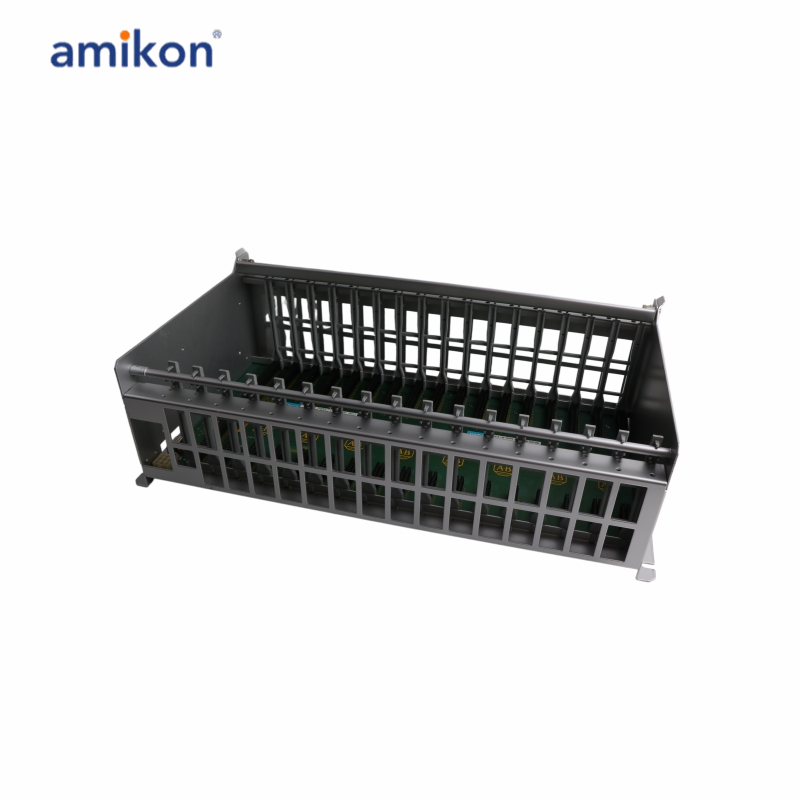

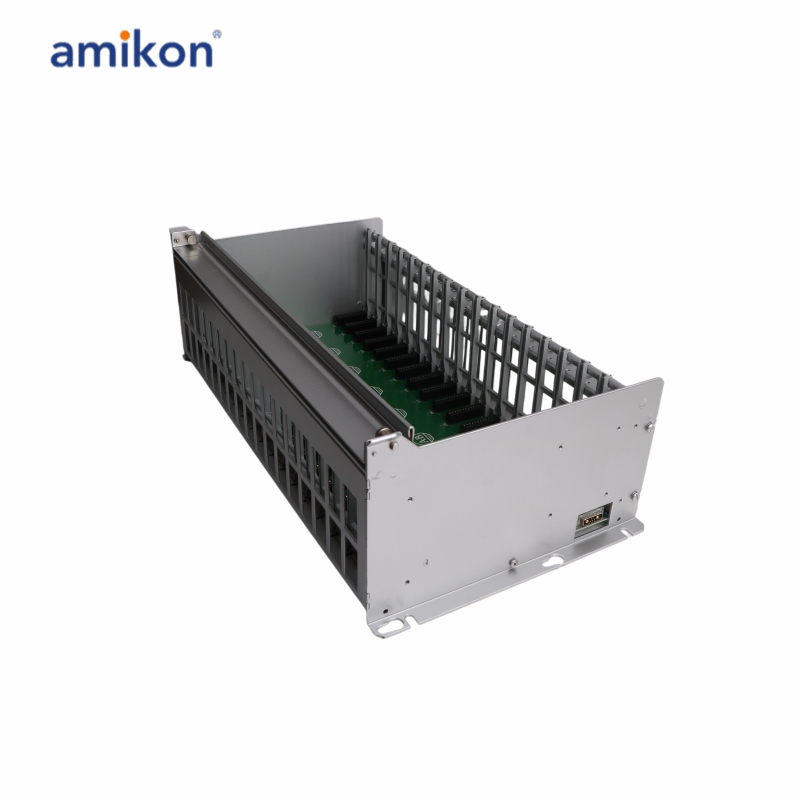

The 1771-A4B I/O chassis is engineered for robust performance within the PLC 5 system architecture. This configuration allows for a total of 16 slots, accommodating several modular components essential for your application.

Compatibility is versatile with various processors, particularly those rated between 2 and 4 amps that possess integral power supplies. Additionally, you can utilize power supply modules with ratings from 3 to 8 amps. External power supplies intended for this chassis must be rated between 6.5 and 16 amps. Furthermore, the leftmost slot is dedicated for processor module installation as well as the I/O adapter module. Communication modules and I/O modules can occupy any slot but are restricted from the leftmost slot, similar to power supply module installations. All these features combine to make the 1771-A4B an adaptable and essential component for performance-driven industrial setups.

Frequently asked questions：

What is the 1771-A4B?
It is a legacy 16-slot universal I/O chassis for the PLC-5 system, providing the physical housing and electronic backplane for processors and I/O modules.

How many I/O slots does the 1771-A4B have?
The 1771-A4B has 16 I/O slots.

What is the maximum backplane current rating of the 1771-A4B?
This 1771-A4B’s maximum backplane Current is 24 Amperes.

What is the supported mounting method of the 1771-A4B?
The 1771-A4B supports Panel mounting.
