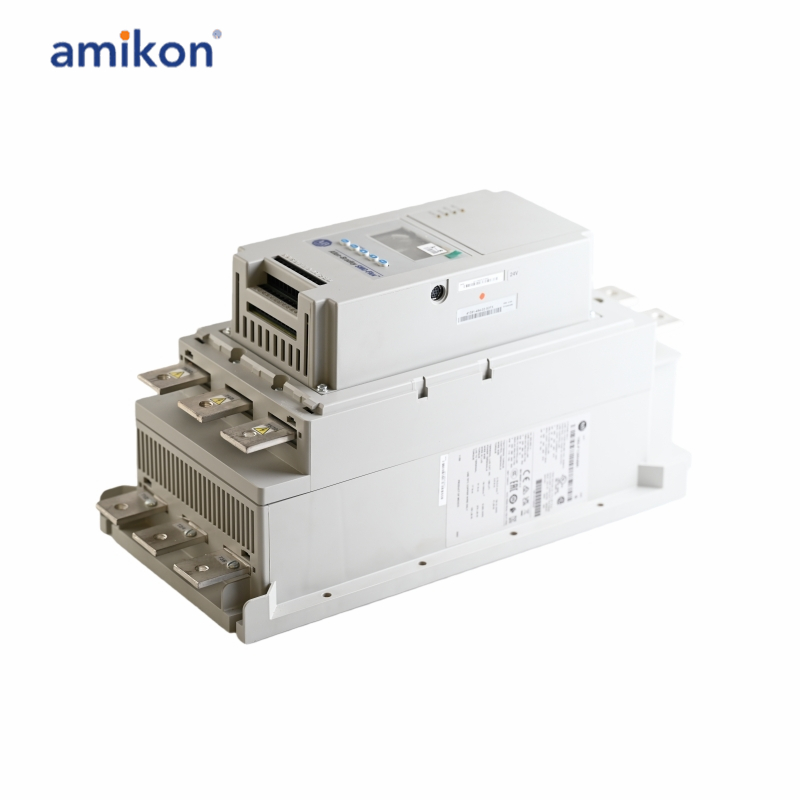

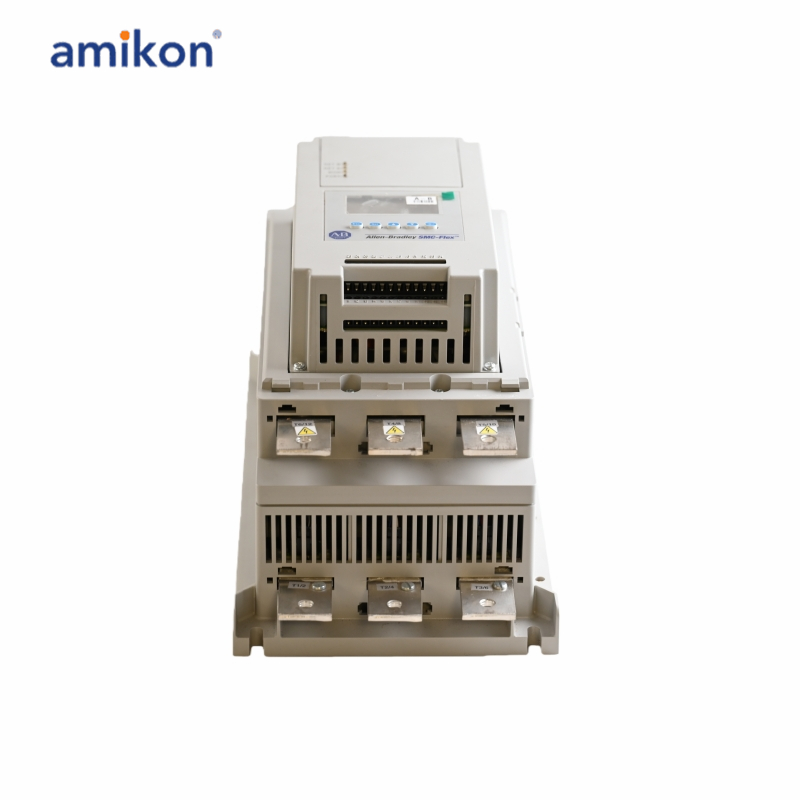

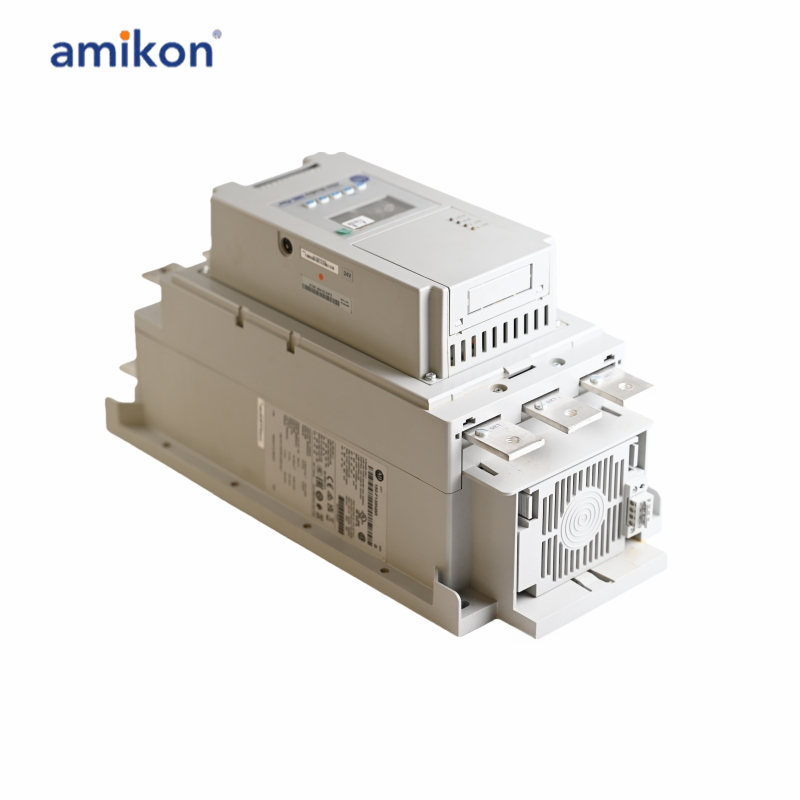

150-F135NBR SMC Flex Smart Motor Controller

Product Line / Family: SMC-Flex Smart Motor Controller
Part Number: 150-F135NBR
Weight: 33.13 lbs (15.03 kg)
Bulletin Number: Solid State Controller
Enclosure Type: Open
Controller Rating: 135 A, 100 HP @ 460 V AC
Input Line Voltage: 200–460 V AC, 3‑Phase, 50/60 Hz
Control Voltage: 24 V AC/DC (for 5–480 A units)
Rated Voltage: 200–460 V AC

The 150-F135NBR is an SMC Flex Smart Motor Controller. This bulletin 150 motor controlling device is expected to work with high-power motors with up to 100 HP rating. The input line voltage of this device is 200 to 460 Volts AC, 3-phase, at 50 to 60 Hertz. It can manage a 135 A output current at 460 Volts AC. For control purposes, you can use 24 Volts AC/DC voltage on this device. This device is applied to control motors in a way to save energy and reduce mechanical stress to the motor and devices connected to it; this is done by applying seven different motor starting algorithms with the 150-F135NBR smart motor controller. The device is installed in large pump and fan applications, but it can be incorporated into other motor uses where motor starting is crucial and not its speed control. The 150-F135NBR provides various breaking options, although none of these options should be used as an emergency stop option. SMB Smart Motor Braking is conducted by applying a braking current of 150 to 400% of a full-load current to a motor. The slow speed with breaking method reduces speed greatly and waits for motor coming into the desired position when it is stopped. The Accu-stop method reduces speed and when the controller gets stop signal breaking torque is applied. Users can use 150-F135NBR SMC at -5 to 50 degree Celsius (23 to 122 degree Fahrenheit) operating temperatures and store them at –20 to 75 degree Celsius temperatures. The shipping weight of this item is 15 kilograms (33 pounds). The device comes in an open enclosure and its dimensions are 443.7 millimeters (17.47 inches) X 196.4 millimeters (7.74 inches) x 205.2 millimeters (8.08 inches).

Frequently asked questions：

Q1: What product family does the 150-F135NBR belong to?
A: The 150-F135NBR is part of the SMC-Flex Smart Motor Controller product line, designed for advanced motor starting and protection applications.
Q2: What is the 150-F135NBR controller rating?
A: It is rated at 135 A and supports motors up to 100 HP at 460 V AC.
Q3: What is the 150-F135NBR input line voltage range?
A: The unit operates on 200–460 V AC, 3-phase, 50/60 Hz power systems.
Q4: What is the 150-F135NBR control voltage requirement?
A: The control voltage is 24 V AC/DC (applicable for 5–480 A units within the series).
