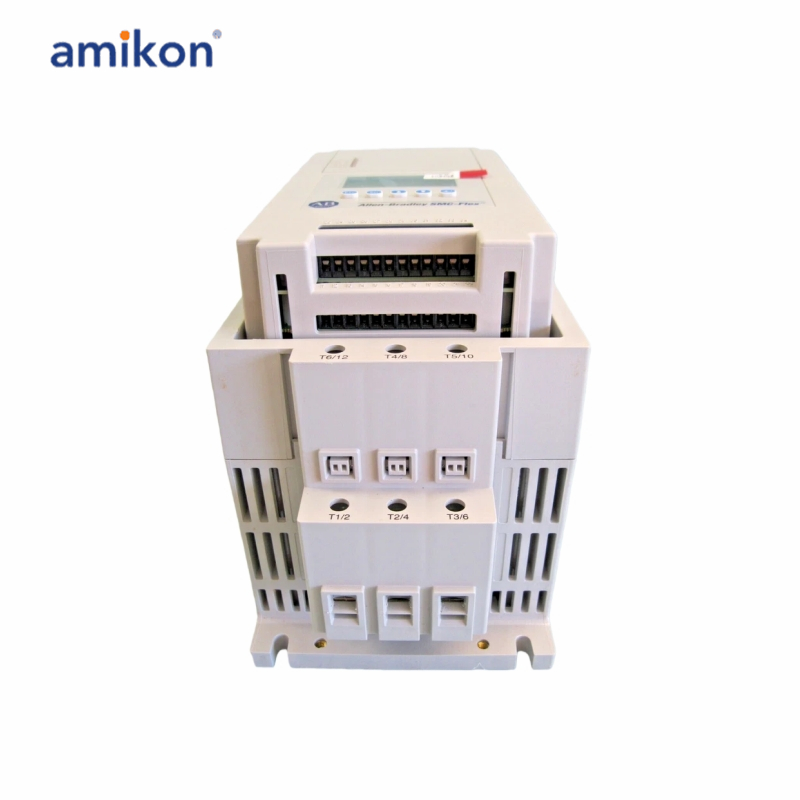

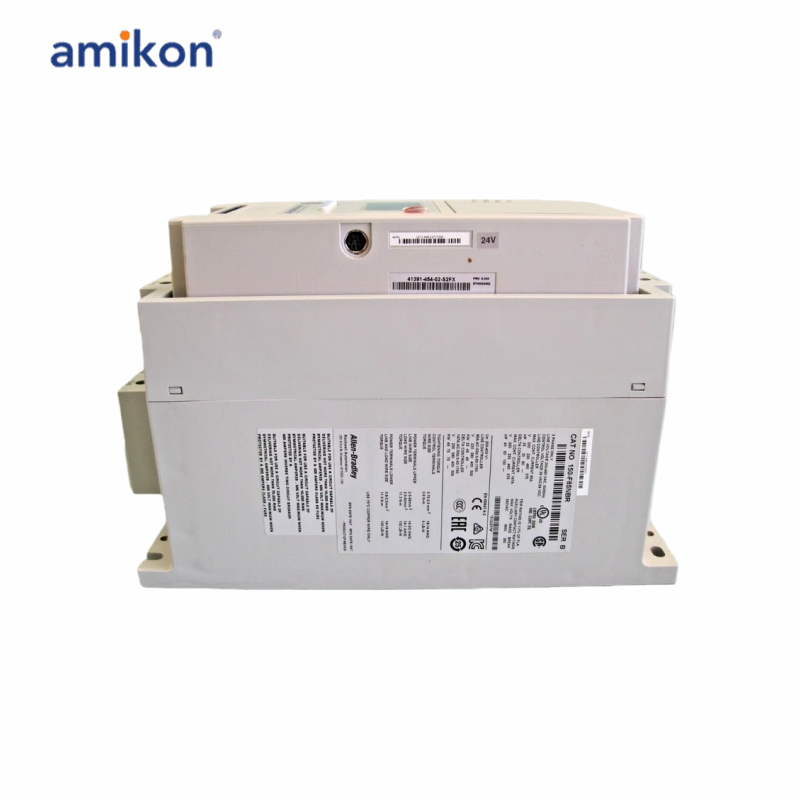

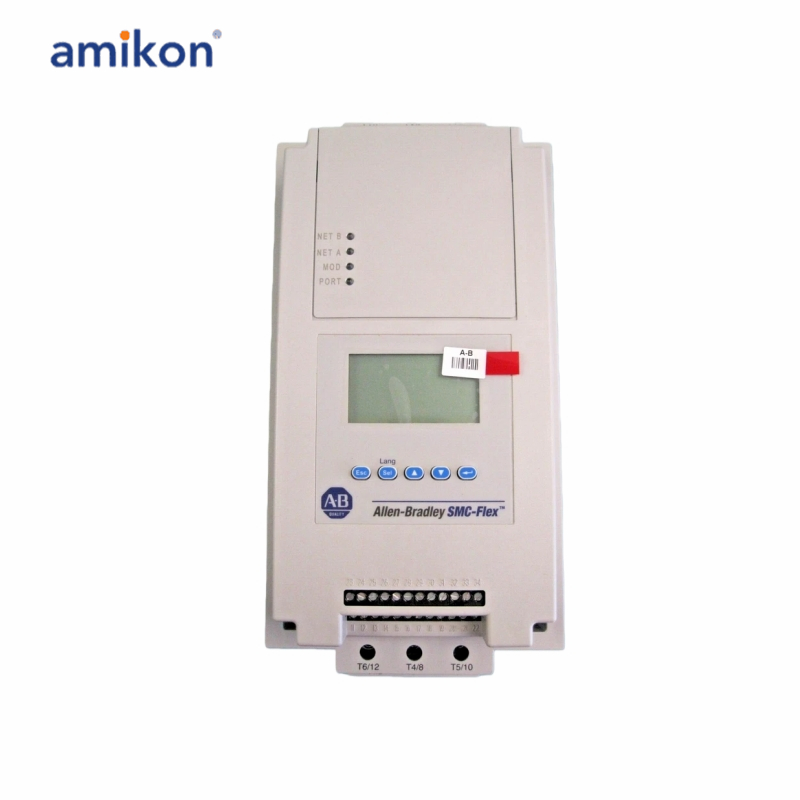

150-F85NBR Smart motor controller

Product Line / Family: SMC-Flex Smart Motor Controller
Part Number: 150-F85NBR
Weight: 12.50 lbs (5.67 kg)
Controller Rating: 85 A, 60 HP @ 460 V AC
Line Voltage: 208–460 V AC, 3‑Phase, 47–63 Hz
Input Line Voltage: 200–460 V AC, 3‑Phase, 50–60 Hz
Control Voltage: 24 V AC/DC (for 5–480 A units)
Enclosure Type: Open
Kickstart Adjustments: 0, 0.5, 1.0, or 1.5 s @ 450 % Full Load Current (FLA)
Start-Time Adjustments: 2, 5, 10, 15, 20, 25, or 30 s
Current Limit Settings: 150 %, 250 %, 350 %, and 450 % of Full Load Current (FLA)

The 150-F85NBR is a Smart Motor Controller (SMC) . It is specifically part of the SMC Flex product family, which is more popularly termed as a Motor Soft-Starter. It is mainly used to implement different starting and stopping modes such as Soft Start, Kickstart, Current Limit, Pump, Control, Dual ramp start, Full Voltage Start, Coast, Soft Stop, and Smart Motor Braking. Aside from controlled starting and stopping operation, the 150-F85NBR can be used to lower power consumption which contributes to reduced cost of operation of the control system. This Smart Motor Controller (SMC) has a line voltage requirement of 200-460VAC, 3-Phase, operable at both 50 and 60Hz. It may also be used with Line connected and Delta-connected motors wherein, the output power and output current ratings vary, specifically, of 25 - 60 HP @ 60 Hz; 22 - 45 kW @ 50 Hz and output current range of 17-85 Amperes. For Delta-connected motors, it has an output power range of 40 - 100 HP @ 60 Hz; 45 - 75 kW @ 50 Hz, and an output current range of 29.4-147 Amperes. The 150-F85NBR is specifically compatible for use with a standard squirrel-cage induction motor or a Wye-Delta, Six-lead AC motor. It comes with a built-in front keypad with a Liquid Crystal Display (LCD) screen while optionally supporting a 20-HIM-A keypad module which directly attached to the built-in DPI port of the controller. In addition to controlled starting and stopping characteristics, the 150-F85NBR has a built-in metering capability which can be used to measure Amps, Volts, kW, kWh, MW, MWH, elapsed time, power factor, and motor thermal capacity usage.

Frequently asked questions：

Q1: What is the 150-F85NBR?
A: The 150-F85NBR is a Smart Motor Controller designed to provide soft starting, stopping, and protection for three-phase AC motors in industrial applications.
Q2: What is the controller rating?
A: It is rated at 85 A and supports motors up to 60 HP at 460 V AC.
Q3: What is the 150-F85NBR line voltage requirement?
A: The controller operates on 208–460 V AC, 3-phase, with a frequency range of 47–63 Hz.
