Technical specifications for 1734-AENT

Inrush Current	6 Amps
Module Type	Ethernet Adapter Module
Part Number/Catalog No.	1734-AENT
Product Family:	1734 POINT I/O
Product Type:	Communications
No. of Ports	1
I/O Module Capacity	63 modules
I/O Points, max.	504
Communication Rate	10/100 Mbits/s, half or full-duplex.
Supported Topologies	Star / Tree topologies
Topologies:	Star, Tree
Field Side Power	400 milliamps
Power Consumption	10.4 W @ 28.8V DC
POINTBus Current	1000 milliamps
Power Dissipation	5.2 Watts (at 28.8 Volts)
Series	POINT I/O
Input Voltage Rating	24 Volts DC
Dimensions	30 x 2.16 x 5.25 inches
Enclosure Type	Open
Ethernet Connector	RJ-45, Category 5
Wire Size	3/64 inches insulation max
Chassis Size	4
Input Overvoltage Protection	Reverse Polarity Protected
Isolation Voltage	50 Volts (Continuous)
Maximum Expansion I/O Capacity	63 Modules, 31 Direct Connections

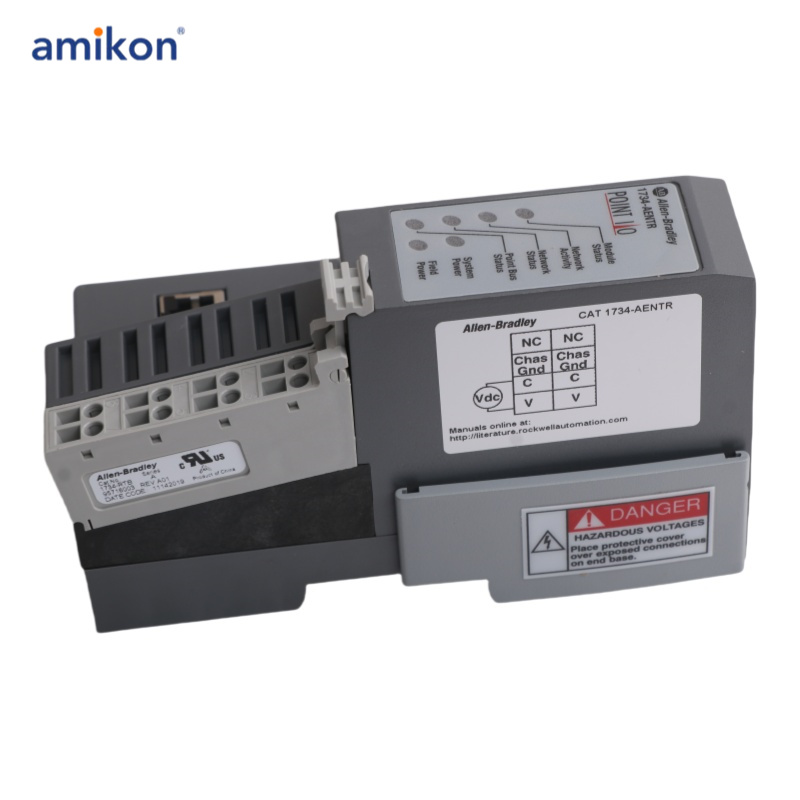

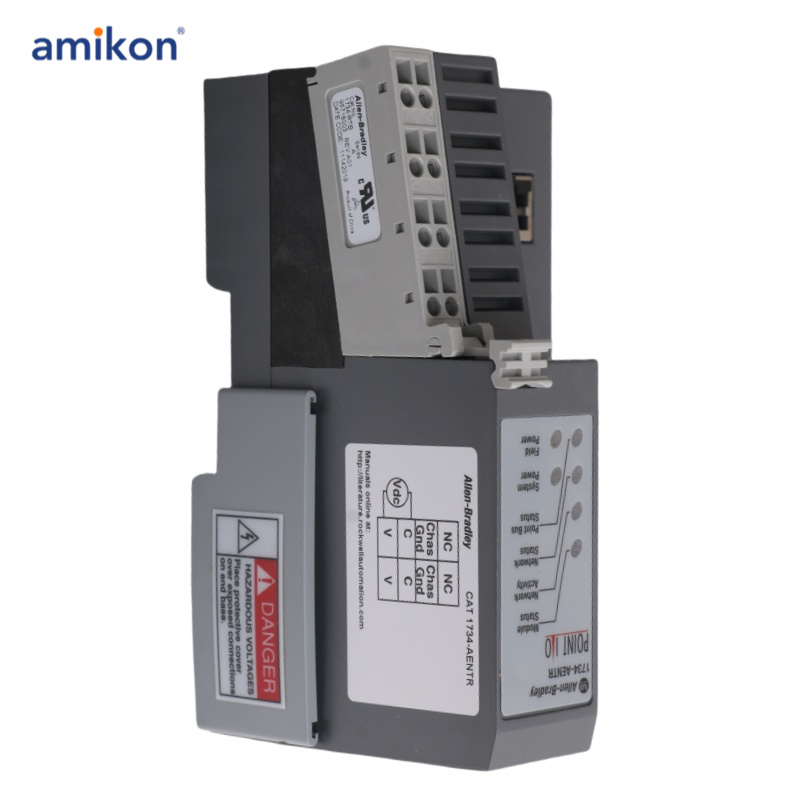

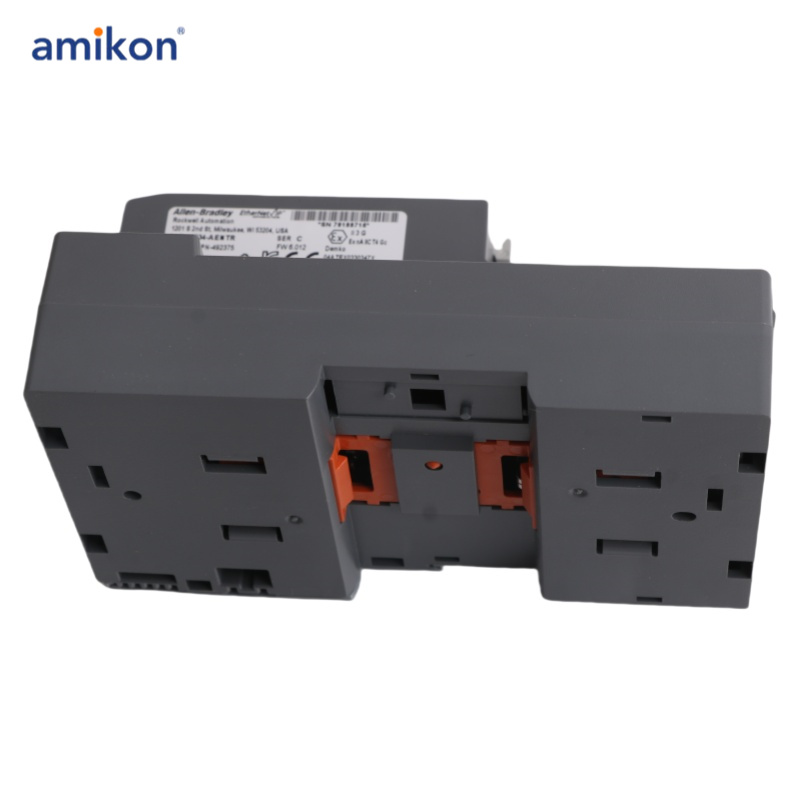

1734-AENT Ethernet I/P Communication Adapter
The 1734-AENT is a POINT I/O Ethernet I/P communication adapter, part of the 1734 POINT I/O product family. It enables a POINT I/O rack to exchange real-time I/O data with the master controller over an Ethernet I/P network. This module interfaces with POINT I/O modules and facilitates not only I/O data transfer but also diagnostic information.

The 1734-AENT features a built-in Ethernet communication port with an RJ45 physical interface. It supports 10/100 Mbps transmission speeds in both half-duplex and full-duplex modes. With auto-negotiation capability, the module automatically adjusts to the optimal transmission speed, eliminating the need for manual configuration. The 1734-AENT allows POINT I/O racks to be connected using star or tree topology and requires Cat5 shielded or unshielded cables with RJ45 connectors on both ends.

For system monitoring and fault diagnosis, the module includes three (3) red/green LED status indicators on the CPU, displaying Module Status, Network Status, and POINTBus Status, providing quick troubleshooting information.

The 1734-AENT operates on a 24V DC power supply with a maximum field bus power current of 10A. It accepts an input voltage range of 10-28.8V DC and features reverse polarity protection, preventing damage if the power is connected incorrectly.

This module supports up to 63 POINT I/O modules or a maximum of 504 input and output points. If additional power is needed, expansion power supplies can be installed, each capable of supplying power to up to 17 I/O modules to ensure stable system operation.
