Technical specifications for 1771-OA

Module Type	AC output module
Part Number/Catalog No.	1771-OA
Series	1771 Product Bulletin
No. of Inputs	Eight (8) outputs
Operating Voltage Range	92 - 138VAC
Output Frequency	47-63 Hz
Output current rating per channel	1.5 A
Output current rating per module	6 A
Power Dissipation	1.1-10.7 Watts
Thermal Dissipation	3.4-36.6 BTU/hr
Compatible chassis	1771 I/O chassis
Keying	Between 4 and 6; Between 12 and 14
Field Wiring Arm	Cat. No. 1771-WA
Wiring Arm Screw Torque	7-9 inch-pounds
Number of Outputs	8 Outputs
Voltage Category	120 Volts AC
AC Operating Voltage	92-138 Volts
Backplane Current	1.5 Amperes
Max Continuous Current Per Output	1.5 Amperes
Max Current Per Module	6 Amperes
Wiring Arm	1771-WH

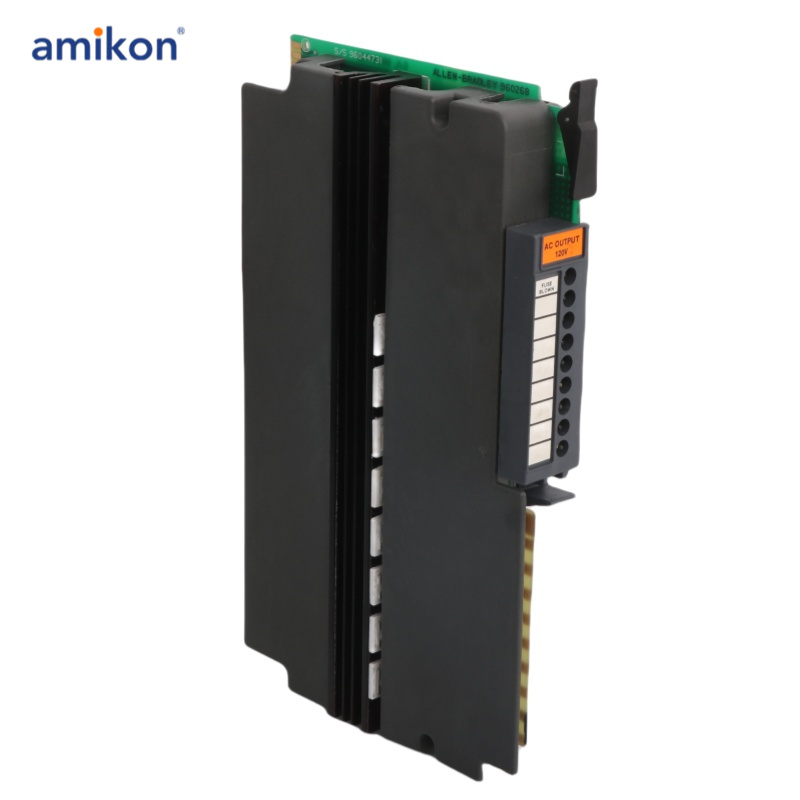

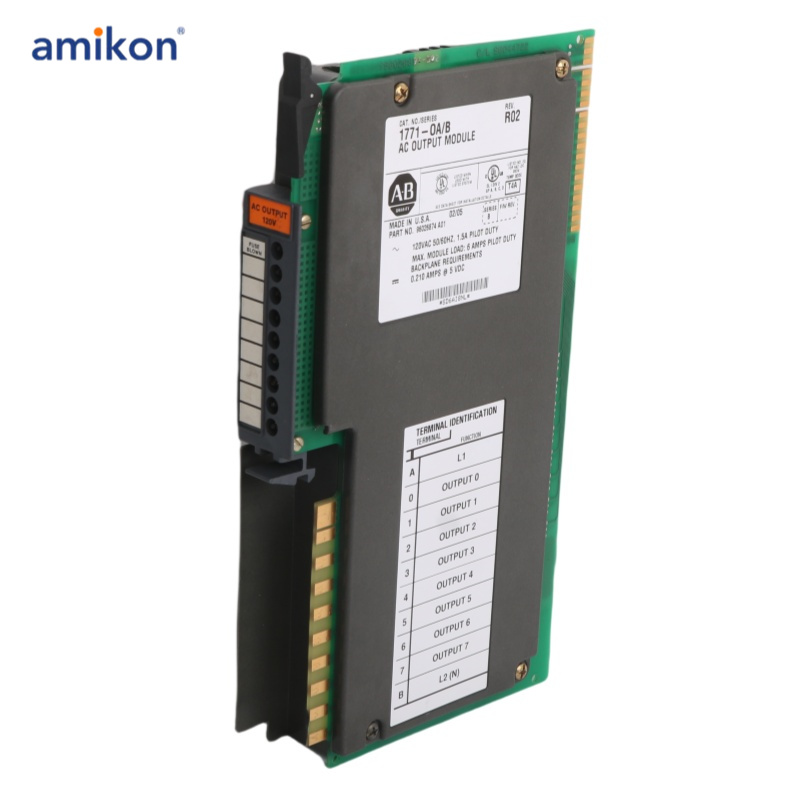

The 1771-OA is an AC output module that belongs to the 1771 product series. This I/O module is designed for compatibility with PLC5 programmable logic controllers (PLCs). It features eight (8) output channels, each delivering a voltage output range of 92-138VAC at 47-63 Hz. Each channel has an output current rating of 1.5 A, with the entire module not exceeding 6 Amperes. The module also has a surge current rating of 4 Amperes per output channel, capable of withstanding surges for 8.3 ms, repeatable every 1 second. The backplane current draw is 210 mA at 5VDC.

The 1771-OA is ideal for energizing electrical devices such as solenoid-actuated devices, indicator lights, and sounding devices like horns, buzzers, and sirens. With its ability to deliver AC voltage and provide 1.5 A output current, this module can also power panel components typically operated by AC voltage, such as magnetic contactors and relays.

This module is a single-slot device that can be mounted in any 1771 I/O chassis. It features an open-type enclosure and utilizes a field wiring arm with catalog number 1771-WA. Module keying is configured between positions 4 and 6 / 12 and 14. When connecting output devices to the module’s channels, the recommended wire size ranges from 14-22 American Wire Gauge (AWG), with a maximum insulation rating of 75°C and a maximum insulation thickness of 1.2 mm. The module includes an internally installed 2A, 250V Buss AGC2 fuse for protection.
