Product Specifications

Part Number	1756-DNB
Net Weight	0.56 lbs (0.26 kg)
Supported Fieldbus	DeviceNet
Max Supported Nodes	64 nodes
Backplane Current @5.1VDC	400 mA
Backplane Current @24VDC	0 mA
DeviceNet Bus Voltage	11～25 VDC
DeviceNet Bus Current @24VDC	60 mA
Power Dissipation	3.5 W
Heat Dissipation	11.9 BTU/h
USB Transfer Speed	12 Mbps

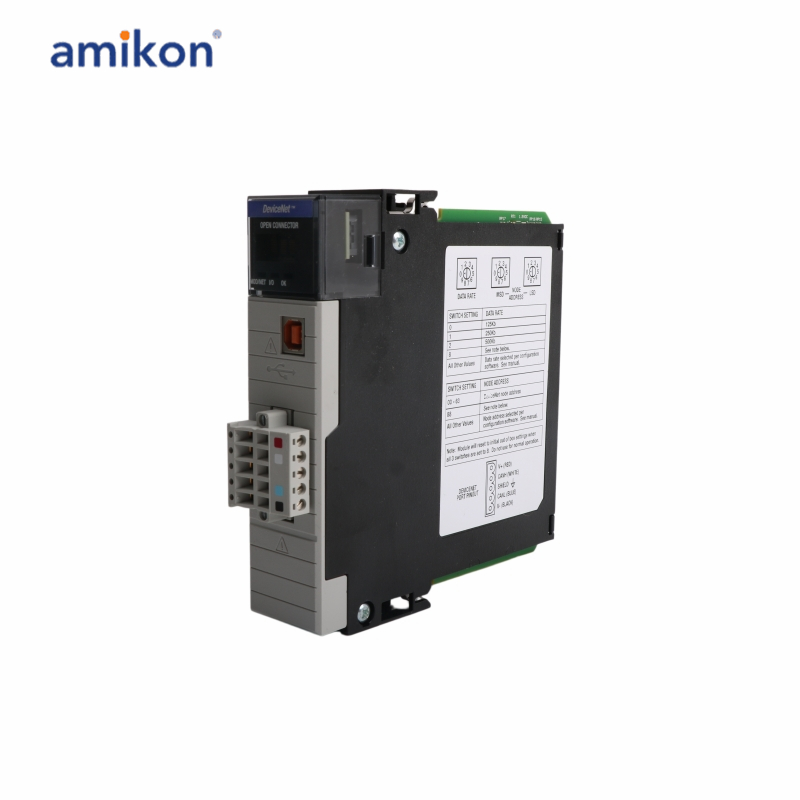

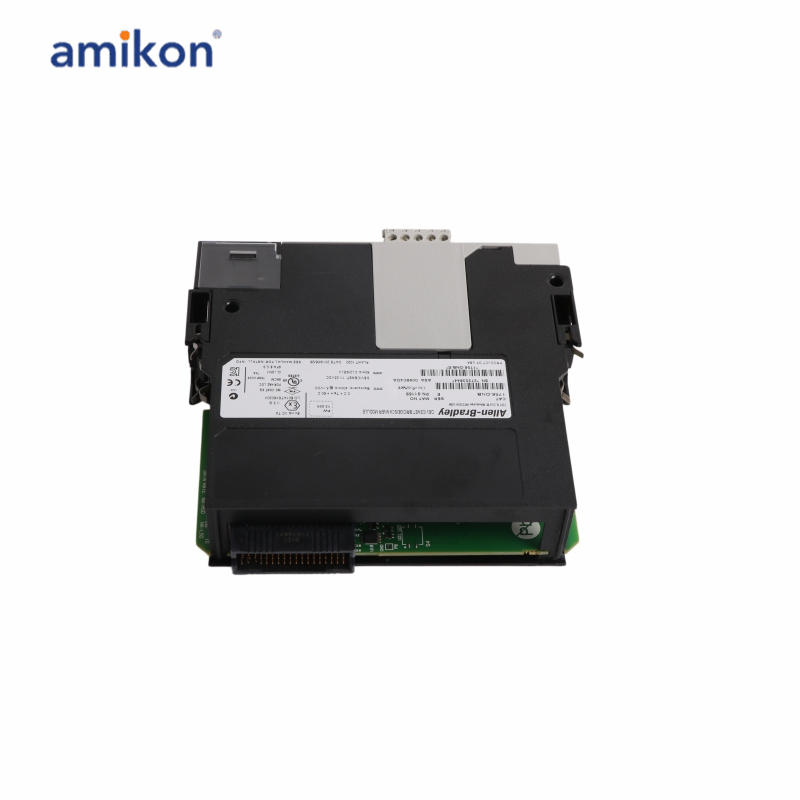

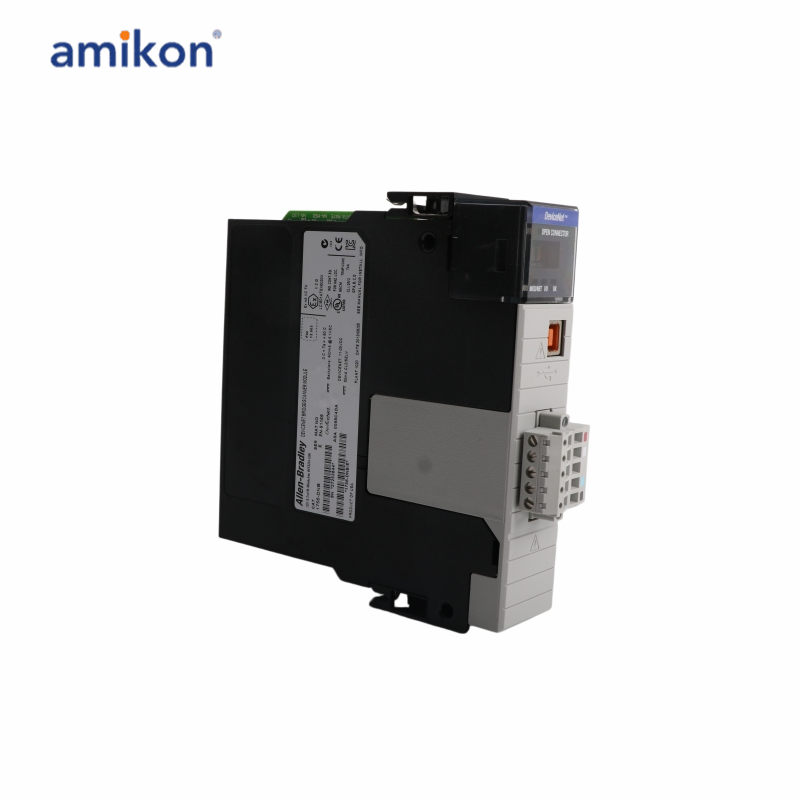

The 1756-DNB is a dedicated communication module designed for effective use within , specifically integrating with DeviceNet networks. This product allows for efficient communication across various distances, enabling data rates of 125 Kbps for spans of 500 meters, increasing to 250 Kbps for 250 meters and reaching up to 500 Kbps over shorter 100-meter distances. Such flexibility in communication rates accommodates different system layouts and application requirements.

Frequently asked questions：

Q1: What is the 1756-DNB Communication Module used for?
A1: It is used to connect controllers to DeviceNet networks for communication with field devices and distributed I/O.

Q2: How many nodes can the 1756-DNB support?
A2: The 1756-DNB module supports up to 64 DeviceNet nodes.

Q3: What is the 1756-DNB backplane current requirement?
A3: The 1756-DNB backplane current consumption is 400 mA at 5.1 VDC.

Q4: What is the USB transfer speed of the 1756-DNB module?
A4: The USB transfer speed is 12 Mbps.

Q5: What is this 1756-DNB module’s power dissipation?
A5: The 1756-DNB dissipates 5.8 Watts of power.

Product Applications

Automotive Manufacturing
Petrochemicals and Water Treatment
Materials Handling and Packaging Systems

Grab an Extra Discount - Contact Sales Manager Lisa Lin Today :
:sales7@amikon.cn :+86-18965423501 :AMKPLC

We provide a 12-month warranty and worldwide stock availability to guarantee smooth integration and prompt delivery for your daily operations.
