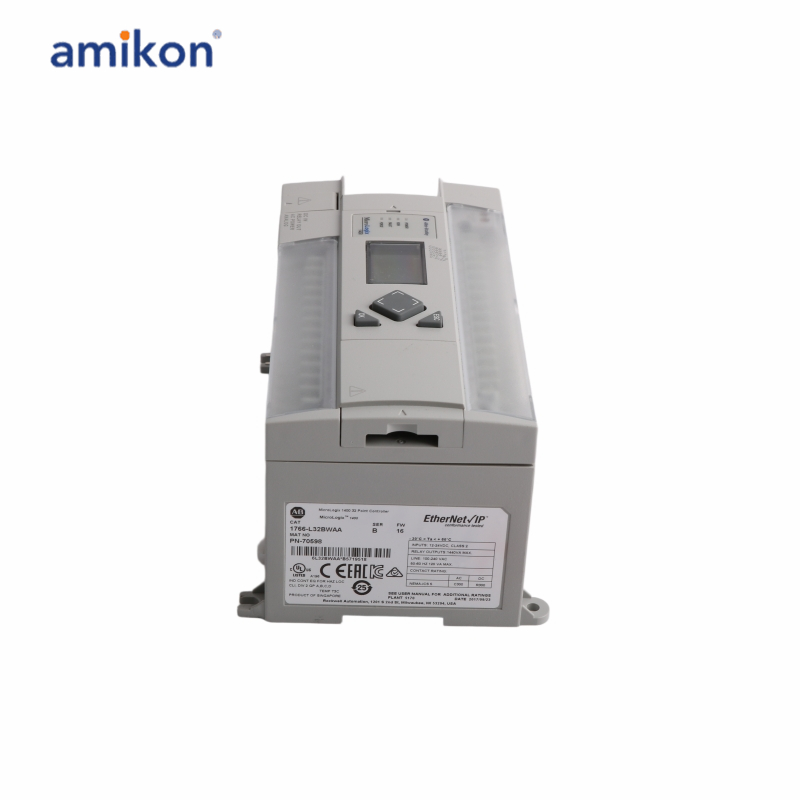

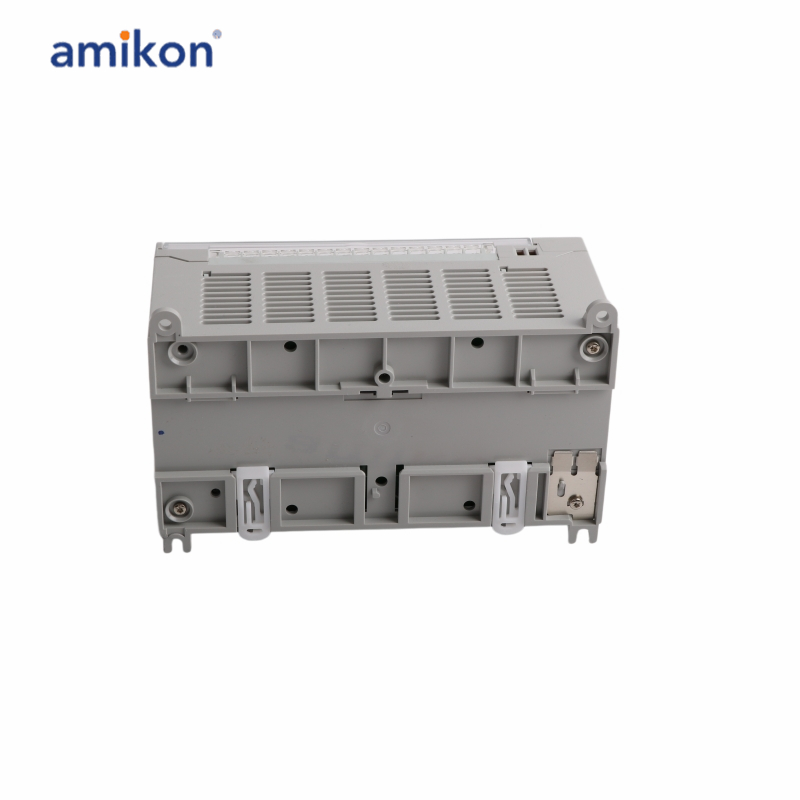

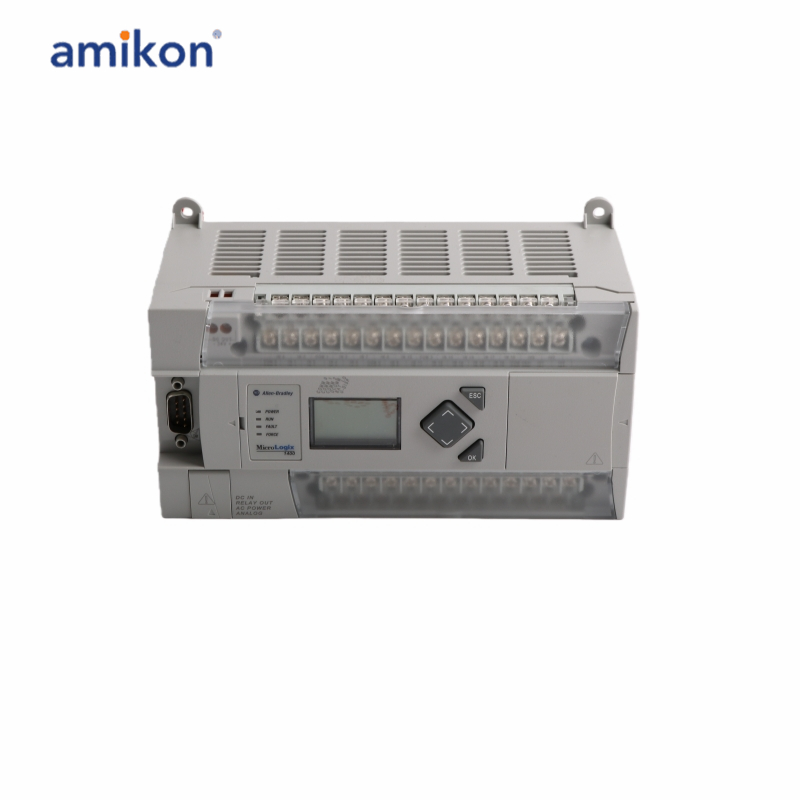

1766-L32BWAA Controller

Part Number: 1766-L32BWAA
Weight: 3.00 lbs (1.36 kg)
Module Type: Controller
Outputs: (12) Relay, (2) Analog
Number of I/O: 38 I/O points
Operating Power: 110 to 240 Volts AC
Channel Count: (20) IP, (12) OP
Analog Input Signal Range: 0…10.0V DC - 1 LSB
Memory: 20 KB
Feature: Built-in RTC
Number of Discrete Outputs: Twelve (12) Relay
Mounting Options: Panel and DIN Rail
Number of Analog Outputs: Two (2) Single Ended
Power Supply: 100/240V AC
Operating Frequency: 47–63 Hz
Power Consumption: 120 VA

The 1766-L32BWAA is a PLC. It comes with the EtherNet/IP network, online editing capabilities, and a built-in LCD with enhanced network capabilities. There is also a backlight on the LCD to set the network configuration and view the controller and I/O status. The 1766-L32BWAA controller requires 120 to 240 Volts AC input power and it has battery-backed RAM. It supports 32 digital I/O points that consist of 12 digital fast 24 Volts DC inputs, 8 digital normal 24 Volts DC inputs, 12 relay outputs, and 6 analog (12 bits) I/O points with 4 inputs, 2 outputs. It can be expanded with as many as seven 1762 expansion I/O modules. It has dimensions of 3.5 x 7.08 x 3.43 inches and it weighs 2 pounds. For communication, the 1766-L32BWAA has an isolated RS-232/485 port, an Ethernet port, and a non-isolated RS-232 port. It also has an embedded real-time clock to provide a reference for applications that need time-based control. For installation, it has the panel or DIN-rail mounting options with an open enclosure. It is suitable for use in a clean and dry industrial environment with circuits not exceeding Over-Voltage Category II. The 1766-L32BWAA controller comes with an Ethernet port that provides DNP3 protocol support as well as a web server and email capabilities. It has 2 Serial ports with DH485/DF1/Modbus RTU/DNP3/ASCII protocol support, up to 6 embedded 100 kHz high-speed counters, and a 20 KB memory for user programs and data.

Frequently asked questions：

Q1: What is the 1766-L32BWAA?
A: The 1766-L32BWAA is a PLC controller , designed for controlling industrial systems with integrated I/O.
Q2: How many I/O points does it support?
A: The controller has 38 I/O points, including 20 digital inputs (IP) and 12 digital outputs (OP).
Q3: What is the 1766-L32BWAA operating power range?
A: The controller operates on 110 to 240 V AC.
Q4: What analog input signals does it support?
A: It supports 0–10.0 V DC analog inputs with 1 LSB resolution.
