brand new 1785-L80C/E ControlNet PLC-5 Processor,1785-L80C/E ControlNet PLC-5 Processor suppliers,1785-L80C/E ControlNet PLC-5 Processor manufacturers,factories

Technical specifications for 1785-L80C/E

Part Number/Catalog No.	1785-L80C/E
Module Type	ControlNet PLC-5 Processor
Cat Number	1785-L80C
Max User Memory Words	100 Kilowords
Battery-Backed Static RAM	Yes
EEPROM Program Backup Option (using 1785-ME16, -ME32, -ME64, and -M100)	Yes
Protected Memory	No
Max Total I/O	Forcible 3072 (any mix) or 3072 in + 3072 out (complementary), Nonforcible 50176
Max Analog I/O	Forcible 3072 and Nonforcible 50176
Max I/O Chassis Total	125
Max I/O Chassis Extended Local	0
Max I/O Chassis Universal Remote	60
RS-232-C/422-A/423- A Ports	1

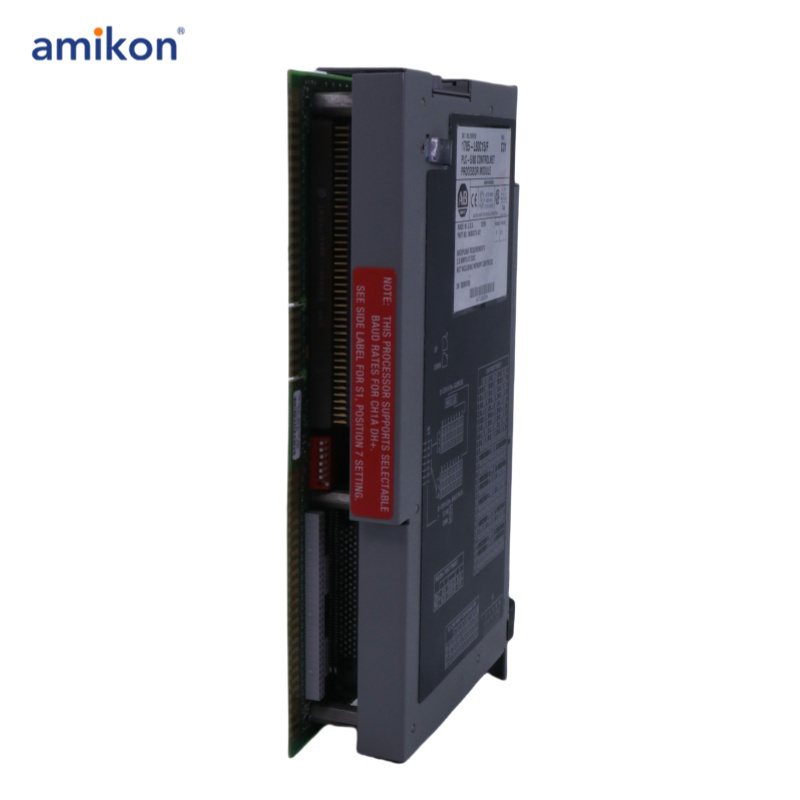

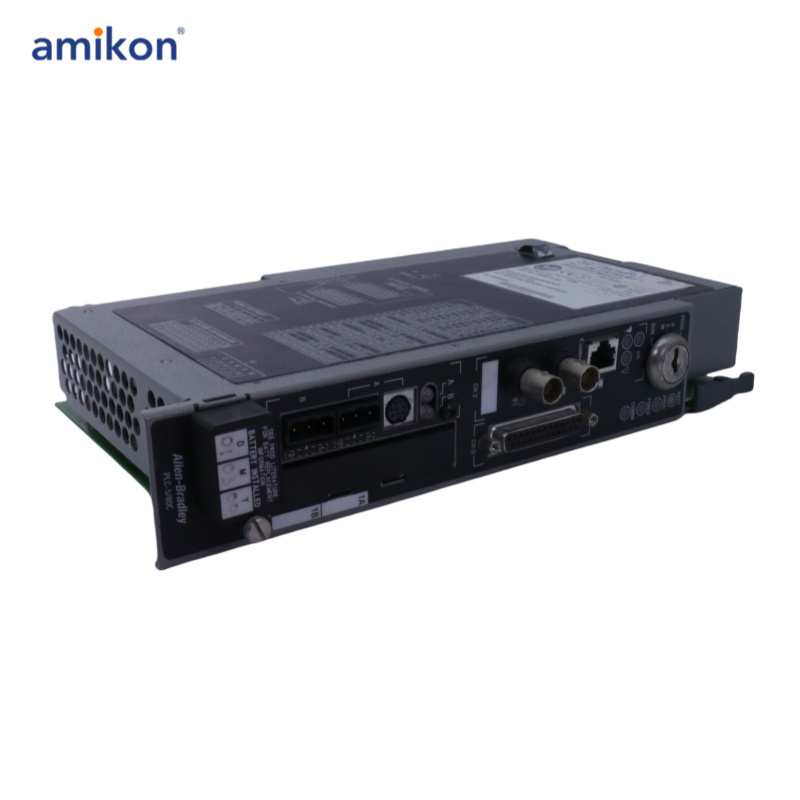

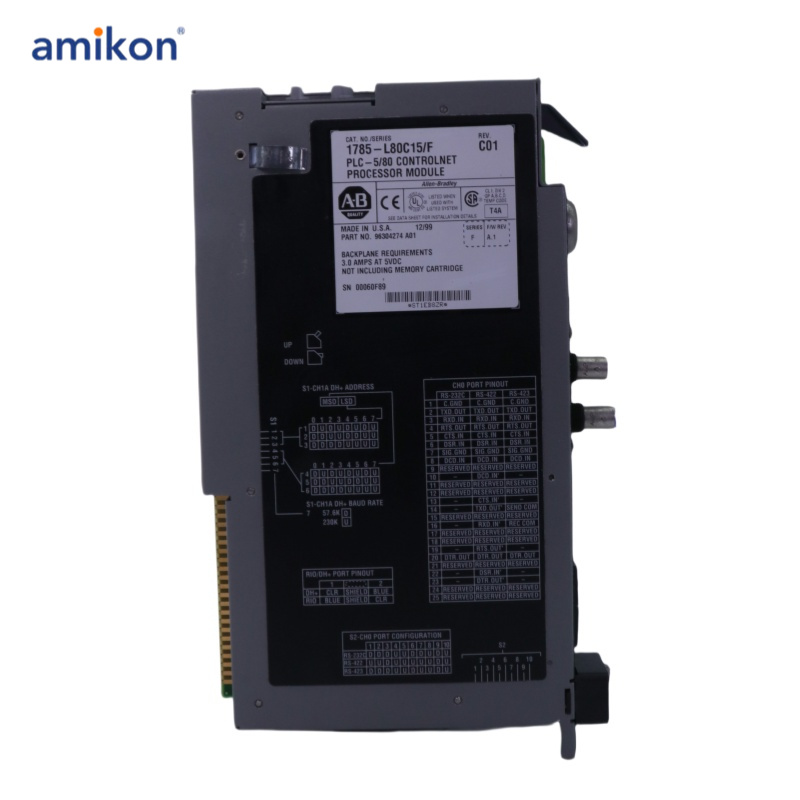

The 1785-L80C/E ControlNet Programmable Controller is a 100K word programmable controller installed on a 1771 I/O chassis, designed to manage the processes of field devices with a maximum I/O capacity of 3072. The module requires a backplane current of 3.3A at 5V DC and has a maximum heat dissipation of 59 BTU/hour during operation. It operates within a temperature range of 0 to 60°C (32 to 140°F) and a relative humidity range of 5-95%, without condensation, and is IEC-tested to withstand 2G of operational vibration at 10-500Hz and a 30G operational shock. The PLC-5-80C is compatible with the ControlNet hot backup cartridge (1785-CHBM), a battery module (1770-XYC), and a battery-backed memory module (either 1785-ME32, 1785-ME64, or 1785-M100). It is designed to integrate with 1771 intelligent, 8, 16, and 32-point I/O modules, supporting 2-slot, 1-slot, and ½-slot addressing modes.

The 1785-L80C/E features an internal circuit clock/calendar with a ±5-minute accuracy variation per month at 60°C, a program scan time of 0.5ms per K word (in bit logic), and 2ms per K word in other logic modes. It includes an RJ-45 type ControlNet Network Access Port (NAP) with a transfer speed of 5 megabits per second and a 2-100ms user-selectable update time on the network. The module supports a maximum of 99 nodes with a repeater, 1000m cable link length with 2 nodes, and 250m with 48 nodes. With a repeater, the maximum cable link length is 6000m with 2 nodes. Communication ports are available for DH+ and remote I/O networks with transmission rates of 57.6K bit/s, 115.2K bits/s, and 230.4K bits/s, with a standard I/O scan time of 10ms at 57.6K bits/s and 3ms at 230.4K bits/s. The 1785-L80C/E is CE, UL, CSA, and C-TICK certified and weighs approximately 3 pounds with an open enclosure.
