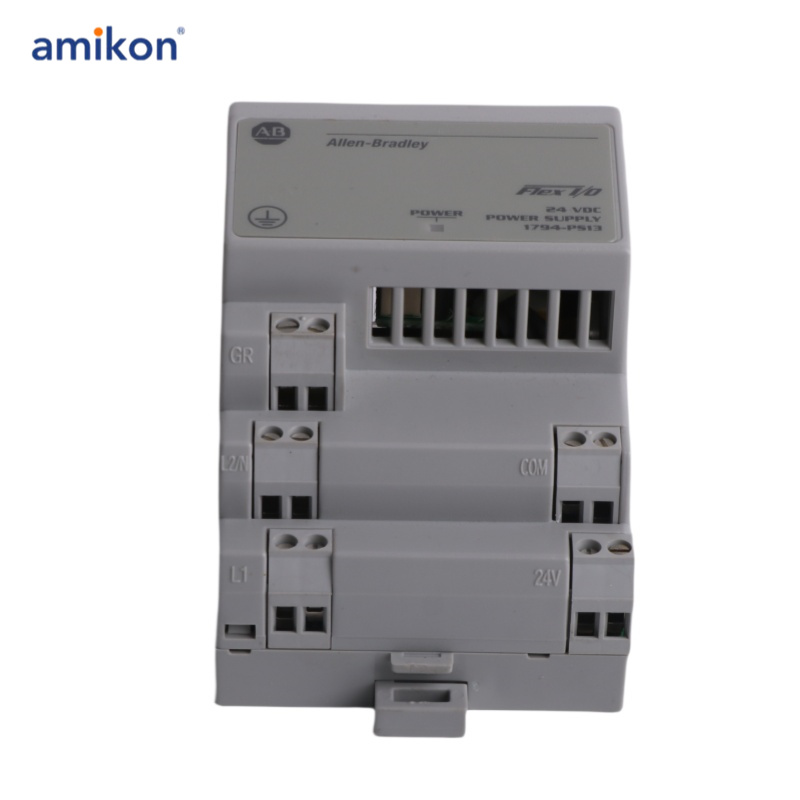

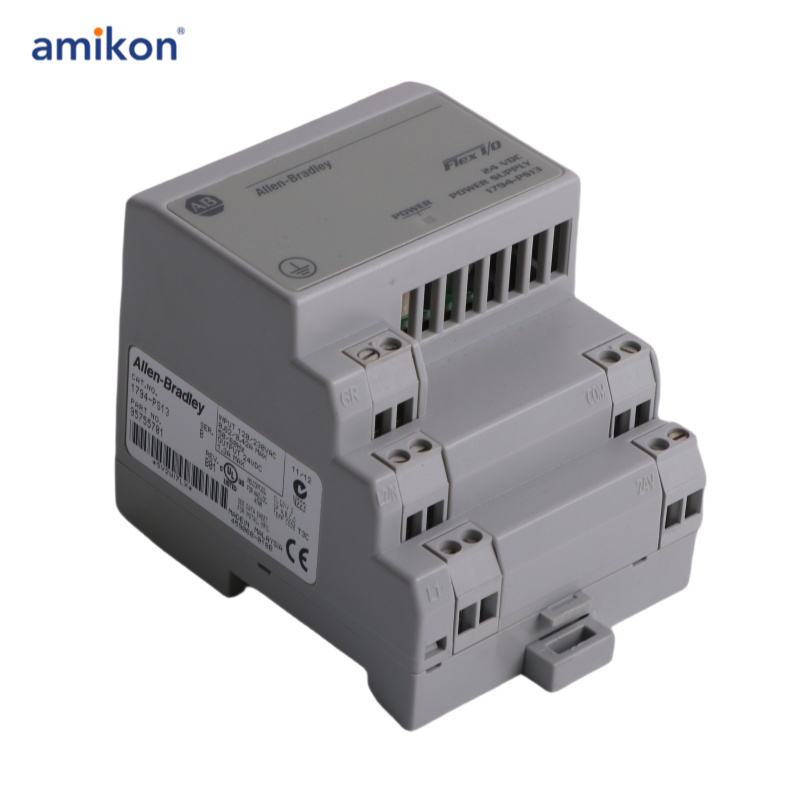

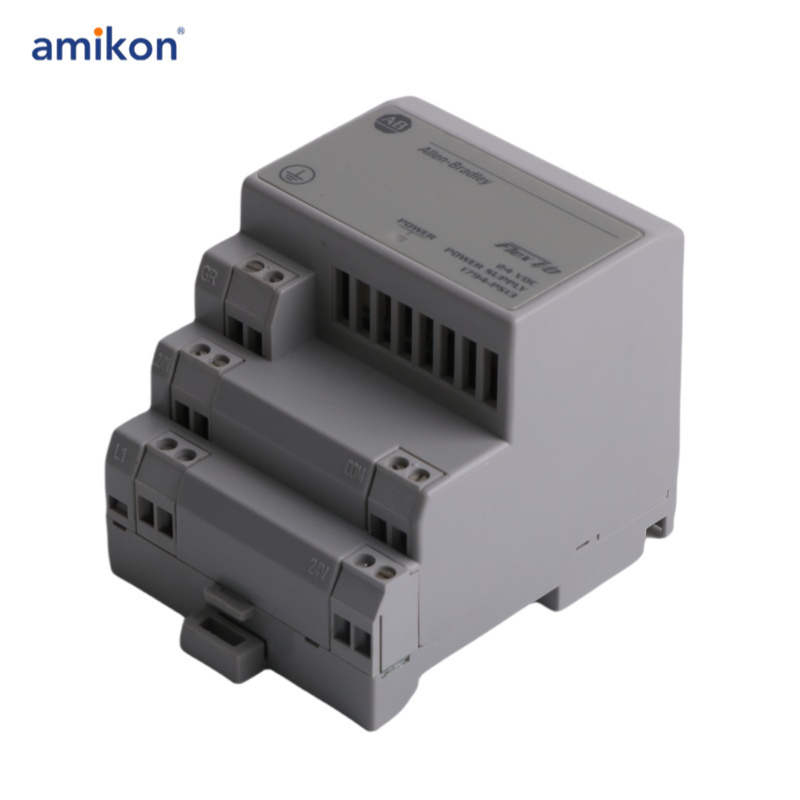

1794-PS13 Flex I/O Power Supply

1794-PS13
1794-PS13
1794-PS13

1794-PS13 Flex I/O Power Supply

Brand new and original sealed//Same Day Shipment

  • Country of Origin:

    USA
  • Weight:

    0.35KG
  • Dimensions:

    12cmx10cmx8cm
  • Warranty Period:

    One Year Warranty
  • Payment Term:

    100% Advance Payment T/T Bank Wire Transfer

Technical specifications for 1794-PS13

Thermal Dissipation

23.9 BTU/hr

Output Current

1.3 A

Part Number/Catalog No.

1794-PS13

Product family:

Flex I/O system

Product Description:

Flex I/O Power Supply

Input Voltage range:

85-264VAC

Input Frequency range:

47-63 Hz

Nominal input voltage:

120V AC, 50/60 Hz; 0.6 A max. 230V AC, 50/60 Hz; 0.42 A max.

Maximum input current:

0.7 A

Output power:

31.2 Watts

Output surge:

Sufficient to drive 4 adapters

Overcurrent protection:

1.4 A

Power dissipation, max:

7 W

Product Type

Flex I/O DC Power Supply Module

Supply Voltage nom.

230V AC, 47-63Hz, 0.6A max.

Voltage Range

85-265V AC

Input Current

0.7 max.

Output Voltage nom.

24V DC

Output Voltage Range

20.4-27.6V DC

The 1794-PS13 is a power supply module designed for use within an industrial automation system. It provides a stable and reliable power source, capable of supplying power to up to four adapters. With an input voltage range of 85-264V AC at 47-63 Hz, it delivers a nominal 24V DC output, making it suitable for various control and monitoring applications.

This power supply module supports daisy chaining of its output to efficiently distribute power to connected adapters and can be used alongside both AC and DC modules. It features a built-in indicator that lights up green when the output voltage remains between 20.4V DC and 28V DC. The indicator turns off in cases where no power is applied, the output voltage exceeds 35V DC, the overvoltage protection is activated, or the output current surpasses 1.4A. The 1794-PS13 has compact dimensions of 87 (H) x 69 (W) x 69 (D) mm and utilizes solid or stranded copper wire within a size range of 0.34-2.5 mm² (22-12 AWG) with an insulation rating of 75°C (167°F) or higher. The recommended torque for terminal connections is 0.8 Nm (7 lbs-in.), ensuring secure and reliable installation.
