1794-AENT

|Rated 5.0

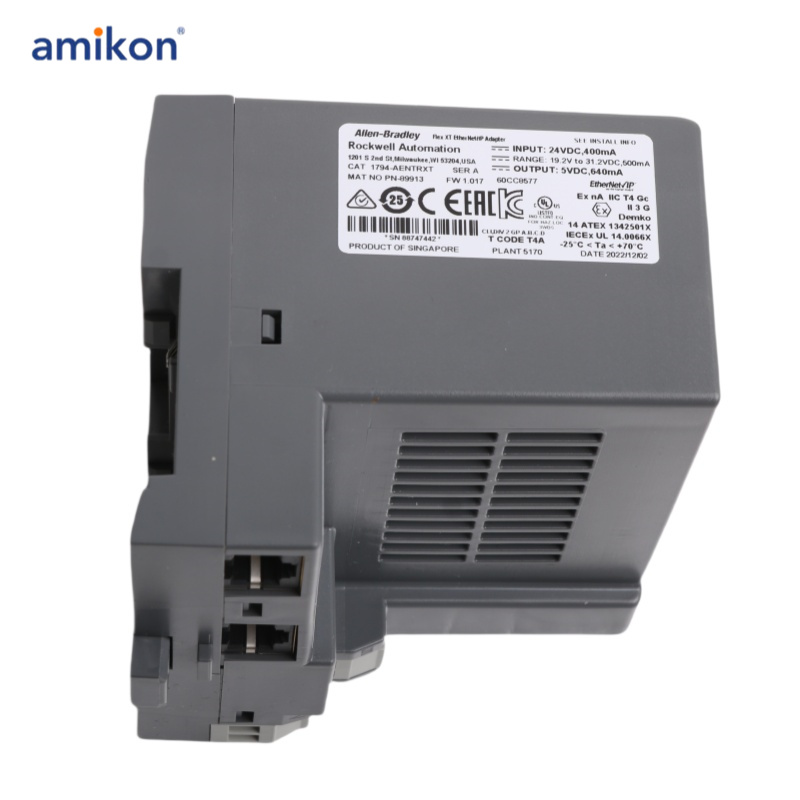

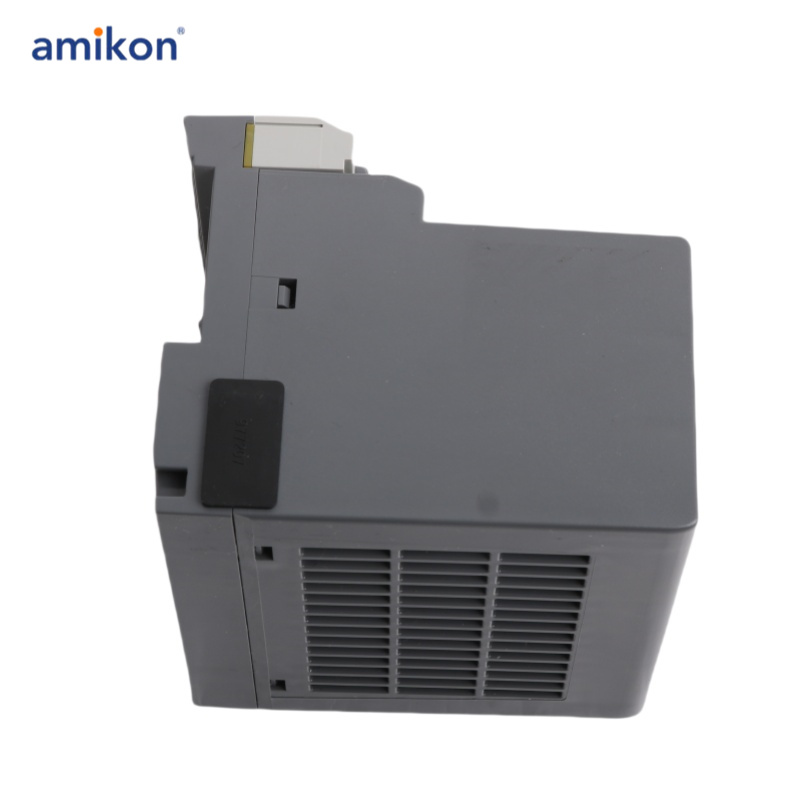

1794-AENT is a Flex I/O communication adapter. This adapter is a DIN rail mounted device, which features One (1) Ethernet communication port, used for connection Flex I/O rack to a central, ethernet enabled controller.

Part Number/Catalog No.	1794-AENT
Product Type	Flex I/O Ethernet/IP Adapter
Thermal Dissipation	24.9 BTU/hr @ 19.2V DC
Power Dissipation	7.3 W max @ 19.2V DC
Power Consumption	550 mA max, 440 mA max at 24V DC
Product Description	Ethernet Adapter Module
Communication Port	One (1) RJ45
Supported Protocol	Ethernet I/P
Supported topologies	Linear
Data Transfer speed	10 to 100 Mbps
Indicators	Mod Status; Network Status; Link Status
Mounting	DIN Rail
Ethernet cable	RJ45 Cat.5
I/O Capacity	8 Modules
Communication Rate	10/100 Mbps
Input Voltage Range	19.2 to 31.2 Volts DC
Nominal Input Voltage Rating	24 Volts DC
Isolation Voltage	50 Volts Continuous
Flexbus Current	640 mA maximum

The 1794-AENT is a communication adapter designed for the Flex I/O system, enabling connectivity to Ethernet networks for data exchange with Ethernet-capable controllers. This module supports up to eight Flex I/O modules, accommodating discrete and analog input/output modules for versatile automation needs.

The Flex I/O family provides a compact and cost-efficient solution for distributed I/O configurations. The 1794-AENT facilitates this through its single RJ45 port, supporting the Ethernet/IP protocol with communication speeds of 10/100 Mbps. It is suitable for linear network topologies.

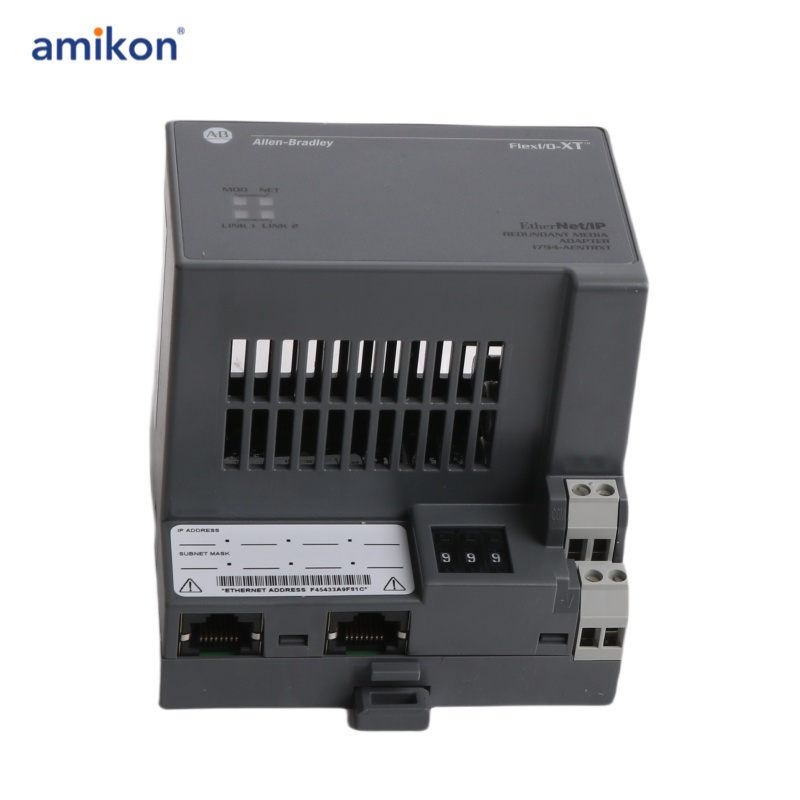

Network addressing for the 1794-AENT can be configured using its built-in thumbwheel switches or via a DHCP server. By default, the thumbwheel switches are set to 999.

When wiring the module, the recommended wire size is between 0.33 and 3.31 mm² (22 to 12 AWG) stranded copper wire, with an insulation rating of at least 75 °C (167 °F) and a maximum insulation thickness of 1.2 mm (3/64 in.). Terminal screw torque should be set to 0.8 Nm (7 lb-in.). The module has compact physical dimensions of 87 x 94 x 92 mm (3.4 x 3.7 x 3.6 in.) and weighs approximately 227 g (8.01 oz.).

The 1794-AENT can act as a remote I/O adapter for various control systems, integrating seamlessly into advanced industrial automation setups.
