1794-IE12

|Rated 5.0

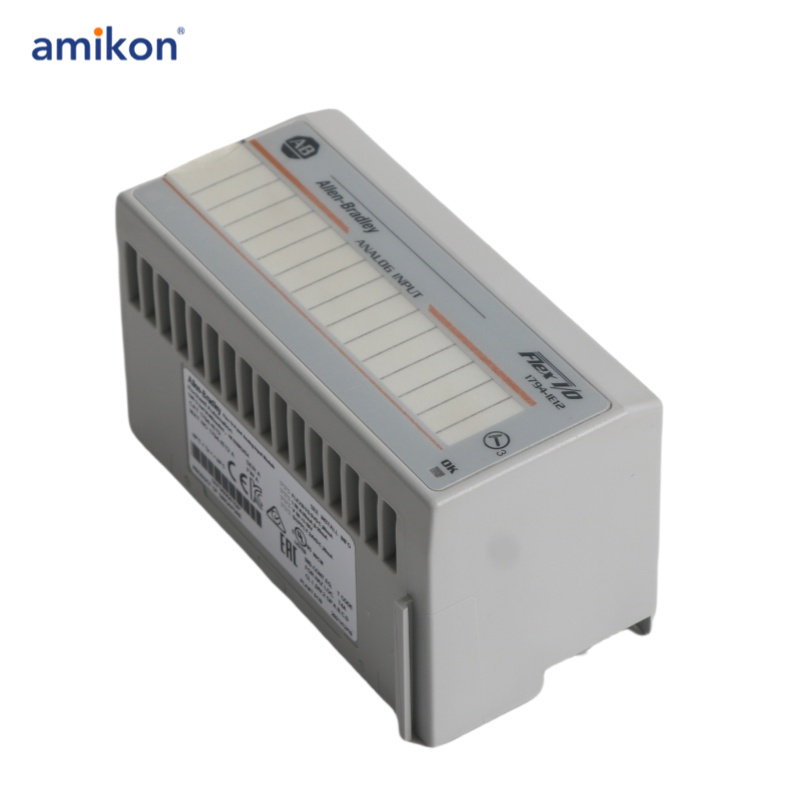

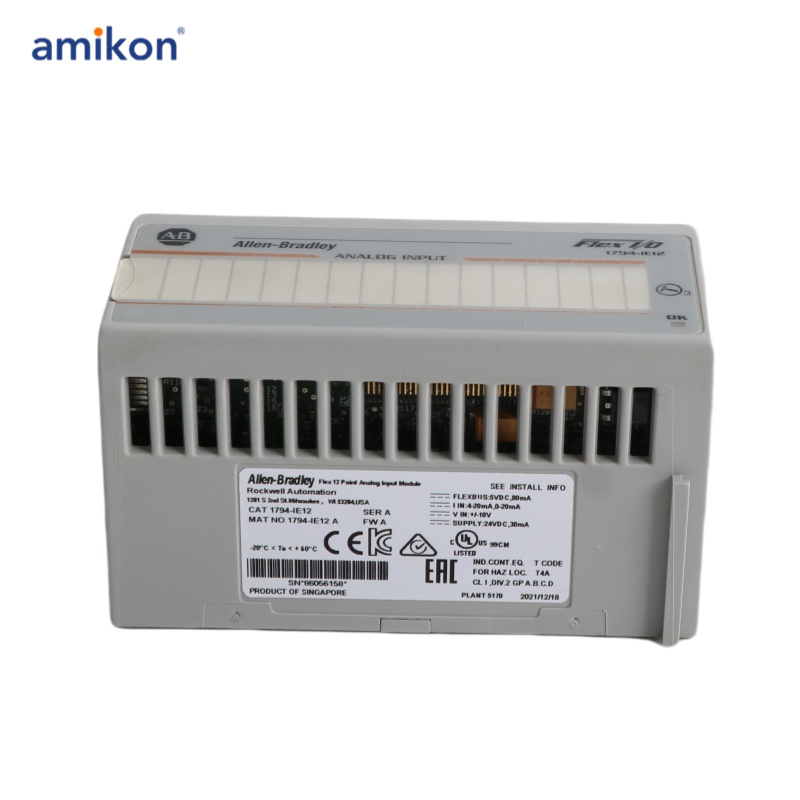

1794-IE12 is a Flex I/O High density analog input module. It has Twelve (12) Voltage / Current single-ended input channels. It is compatible for use with Flex I/O communication adapters and installed to terminal bases such as 1794-TB3G or 1794-TB3GS.

Part Number/Catalog No.	1794-IE12
Product Type	Flex I/O High-Density Analog Module
Product Description:	Flex IO High Density Analog Input Module
No. of inputs:	Twelve (12) Single Ended
Input type:	0 to 20 mA; 4 to 20 mA; +/- 10VDC; 0 to 10 VDC
Conversion Type:	Successive Approximation
Absolute Accuracy:	0.1% full scale @ 25 °C
Terminal base:	1794-TB3G; 1794-TB3GS
Indicators:	1 green/red power/status indicator
External DC supply, nom:	24V DC
External DC supply range:	10.0…31.2V DC (includes 5% AC ripple)
Mounting:	DIN Rail
Wire Size:	Determined by installed terminal base
Operating Temperature:	0 to 55 C (32 to 131 F)
Storage Temperature:	–40…85 °C (–40…185 °F)
Vibration:	5g @ 10 to 500 Hz
Operating Shock:	30 g
Inputs	12 Single-ended

The 1794-IE12 is a high-density analog input module designed to interface with a variety of analog devices such as transmitters, indicators, recorders, single-loop and multi-loop controllers.

This module features twelve (12) analog input channels that can be configured for input signal types including 0 to 20 mA, 4 to 20 mA, ±10 VDC, and 0 to 10 VDC. It incorporates an integrated analog-to-digital conversion system using the successive approximation method, offering a resolution of 320 µV/count for voltage and 0.641 µA/count for current. Analog data is formatted in a 16-bit left-justified register, with a conversion rate of 8.0 milliseconds across all channels. The module delivers an absolute accuracy of 0.1% of full scale at 25 °C for both voltage and current inputs, with an accuracy drift of 0.004% of full scale per degree Celsius.

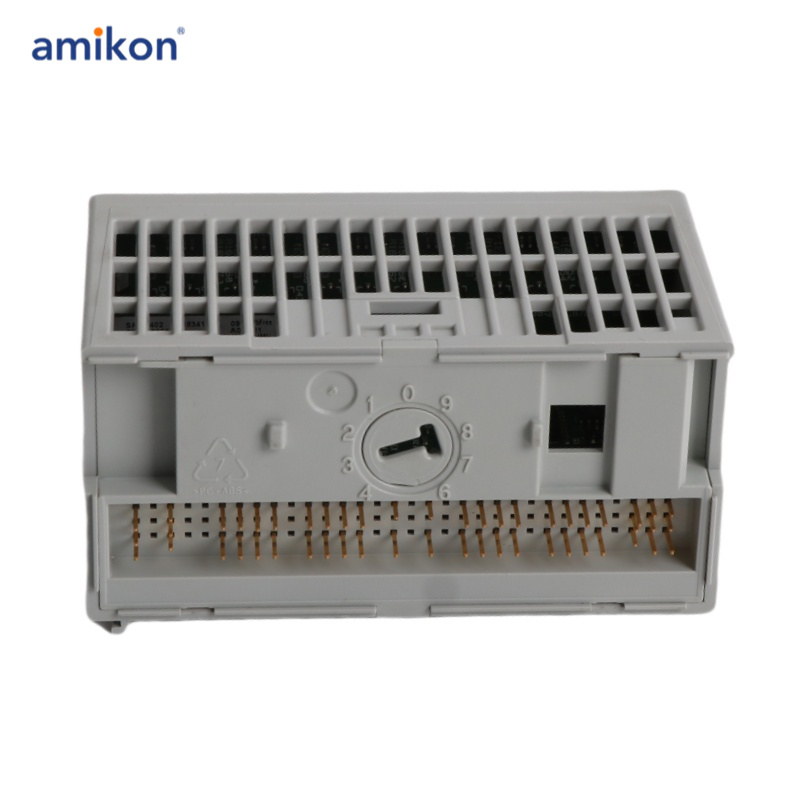

The 1794-IE12 is compatible with the 1794-TB3G and 1794-TB3GS terminal bases, requiring only one terminal base per module. Installation to the terminal base is guided by the keyswitch setting, which is factory-positioned at 3 to ensure proper module placement and prevent incorrect configurations.
