Product Specifications

Part Number	2094-AC09-M02-S
Product Description	Integrated Axis Module
AC Input Voltage	195 to 264 Volts RMS
AC Input Frequency	47 to 63 Hertz
AC Input Voltage Range	195…264Vrms, 3-Phase
AC Input Current (nom rms)	19 Amperes
AC Input Voltage, Nominal	230 VAC
AC Input Current (Max Inrush 0-peak)	37 Amperes
DC Input Voltage	275-375 VDC
DC Input Voltage (Common Bus Follower)	275 to 375 Volts
Continuous Power Output to Bus	6.0 kW
DC Input Current (Common Bus Follower)	19 Amperes
Continuous Output Current to Bus	19 A
Internal Shunt (Continuous Power)	50 Watts
Peak Power Output	12.0 kW
Internal Shunt (Peak Power)	8200 Watts
Bus Overvoltage	415V DC
Internal Shunt Resistor	20 Ohms
Bus Undervoltage	138 V DC

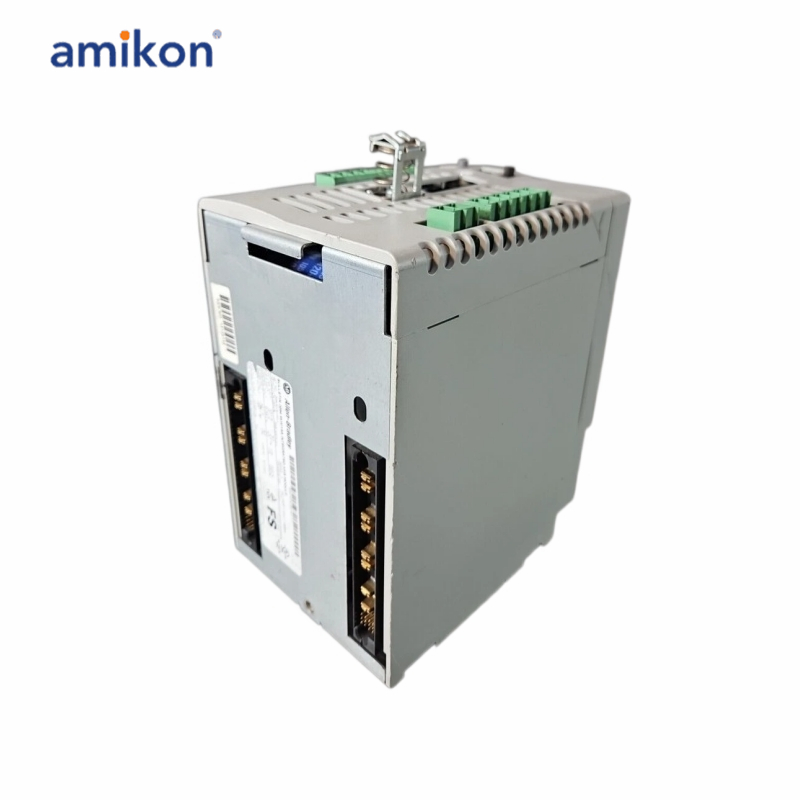

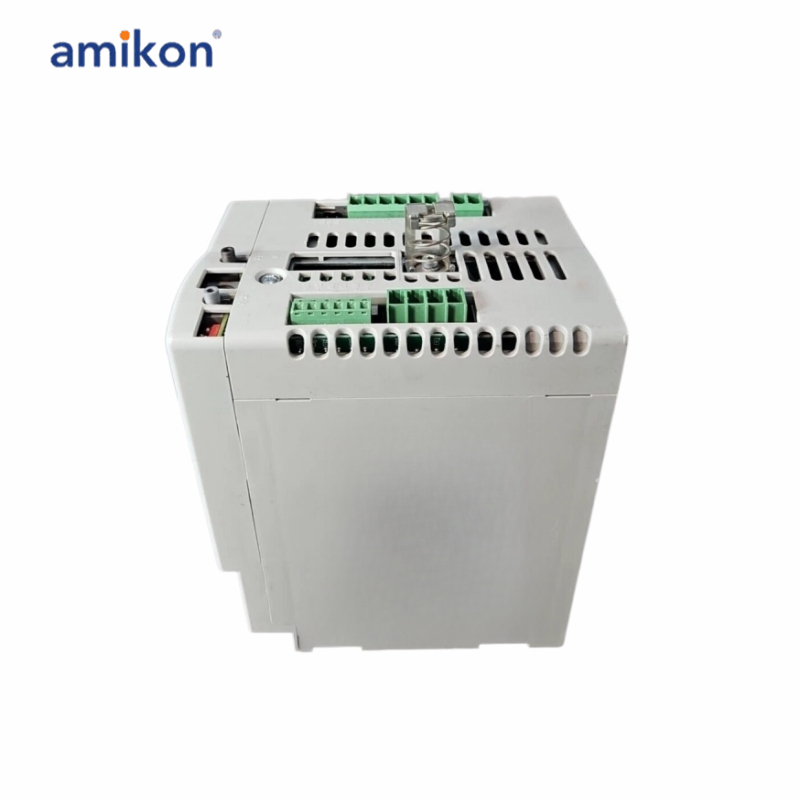

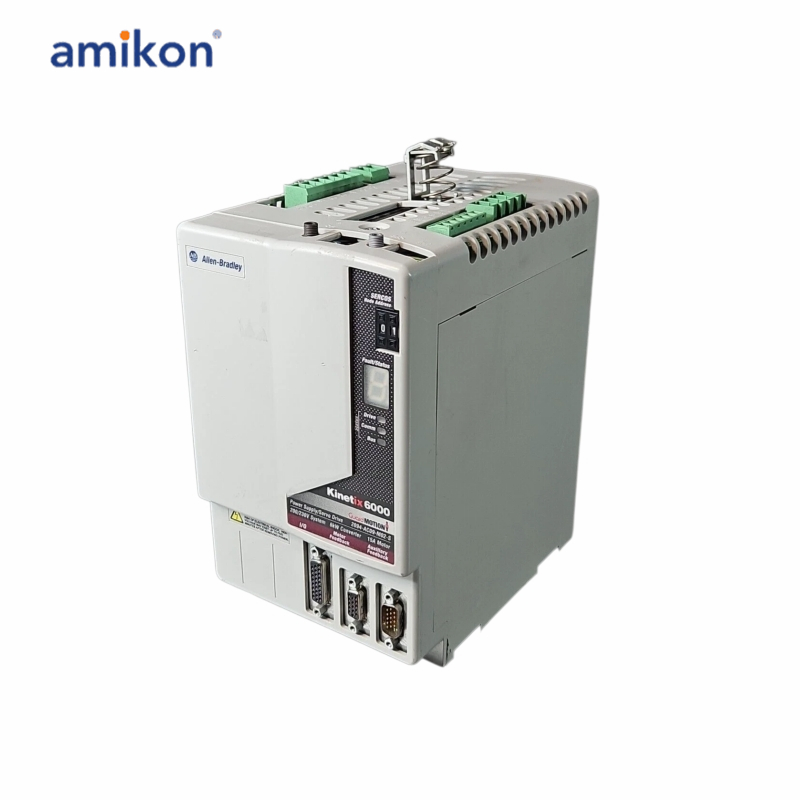

The 2094-AC09-M02-S is an Integrated Axis Module (IAM) from the product family. This module is an essential part of implementing motion control as it hosts the major field connections such as Contactor enable (CED) connector, DC bus/AC input power (IPD) connector, Control power (CPD) connector, Motor power (MP) connector, Motor/resistive brake (BC) connector, I/O (IOD) connector. Aside from the variety of connectors available to the module’s front panel, the 2094-AC09-M02-S SERCOS and DPI connectivity is mounted near the bottom of the module, covered by a removable access door. SERCOS connections available to this module are Sercos transmit (Tx) connector and Sercos receive (Rx) connector as well as a single DPI connector for connection of optional peripherals and modules. The 2094-AC09-M02-S operates when supplied with an input supply voltage range of 195-264 VAC, 3-phase with nominal voltage of 230 VAC along an input frequency range pf 47-63 Hz while the control voltage of this module is designed for an input voltage of 95-264 VAC, 1-Phase with nominal values of 110VAC / 240 VAC. This module delivers an output voltage to the bus of 325 VDC with overvoltage detection when bus voltage reaches 415 VDC and undervoltage detection when bus voltage drops to 138 VDC.

Frequently asked questions：

What is this module’s input power?
This module has an input power of around 195 to 264 Volts AC.

What type of module is the 2094-AC09-M02-S?
The 2094-AC09-M02-S is a Kinetix 6000 Integrated Axis Module.

What is the continuous output power and peak output power of this module?
The 2094-AC09-M02-S has a continuous output power to bus of 6 kW and peak output power of 12 kW.

Does the 2094-AC09-M02-S come with an integrated Safe-Torque Off (STO) functionality?
Yes. This IAM module is capable of STO feature.

What is the supply voltage range required to operate this module?
Appropriate supply voltage is 195-264 VAC.

Product Applications

Packaging machinery
Food and beverage processing
Printing and papermaking equipment
Machine tools and machining centers
Electronic and semiconductor manufacturing
