Product Specifications

Product Line	Flex I/O 1794

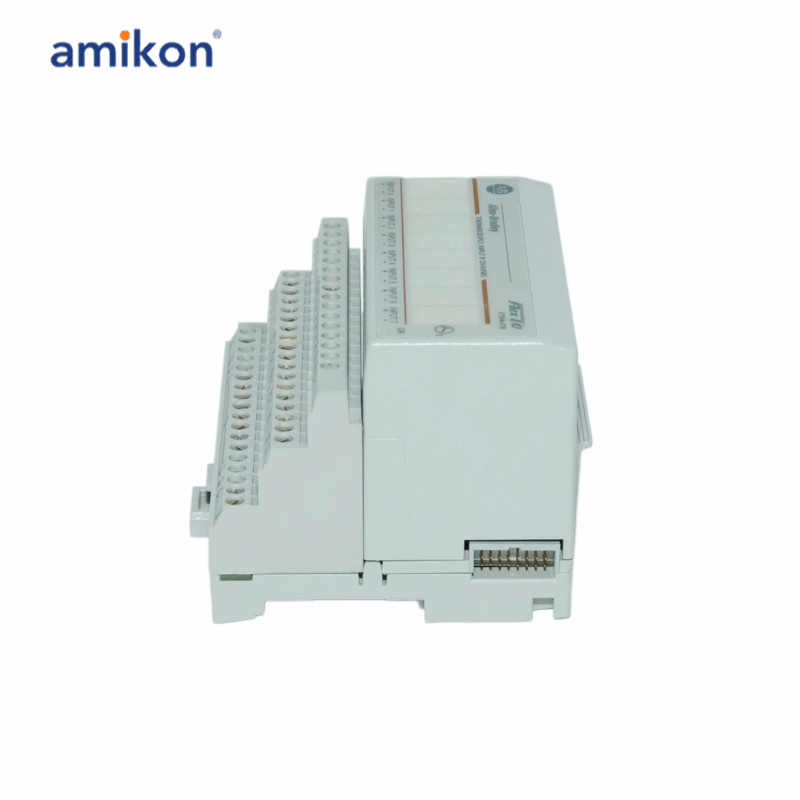

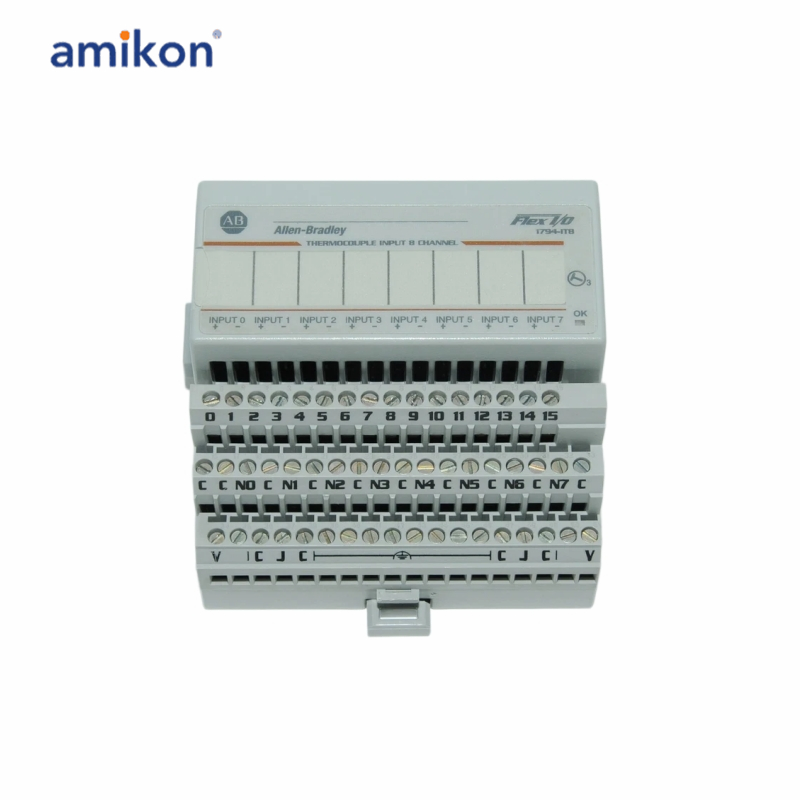

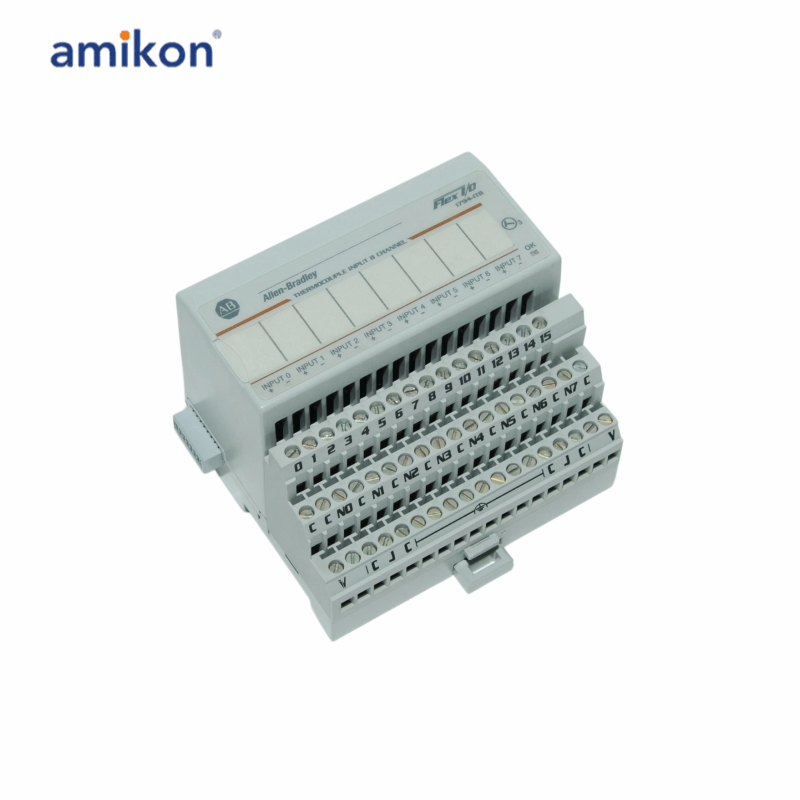

Part Number	1794-IT8
Weight	0.25 lbs (0.11 kg)
Power Dissipation	3W maximum @ 31.2V
Resolution	16 bits (2.384 microvolts typical)
Product Family	Flex I/O Modules
No. of Inputs	8
Sensors supported	J, K, E, R, N, S, B, C, T and L
millivolt signal	+/- 76.5mV
Data Format	16-bit 2’s complement or offset binary (unipolar)
Keyswitch Position	3
Inputs	8 Channels
Nominal Input Ranges	-76.5 to 76.5 mV
Isolation Voltage	850 Volts DC
Normal Mode Noise Rejection	-60dB at 60 Hertz
Channel Bandwidth	0 to 2.62 Hertz
Normal Mode System Throughput	325 milliseconds
Flexbus Current	20 mA
Thermal Dissipation	10.2 BTU/hour at 31.2 Volts DC maximum

The 1794-IT8 is compatible with any available Flex I/O communication adapter. This module is a compatible on being operated in Temperature application ranges such as 300 to 1800oC (572 to 3272oF) using Type B Thermocouple; 0 to 2315oC (32 to 4199oF) Type C; –230 to 1000oC (–382 to 1832oF) Type E; –195 to 1200oC (–319 to 2192oF) Type J; –230 to 1372oC (–382 to 2502oF) type K; –270 to 1300oC (–450 to 2372oF) Type N; –50 to 1768oC (–58 to 3214oF) Type R; –50 to 1768oC (–58 to 3214oF) Type S; –195 to 400oC (–319 to 752oF) type T; –175 to 800oC (–283 to 1472oF) type L. Milivolt input signals are practically used with transducers and other instruments that produce non-standard signals. Data exchange with the 1794-IT8 Thermocouple input module is configured using the block transfer operation.
Before inserting the 1794-IT8 module on the terminal base, the users should rotate the key switch on the base to Position 3 because this position is required for the safe mounting and operation of the thermocouple/mV module. The 1794-IT8 FLEX I/O thermocouple module communicates with PLCs through the block-transferring option. Block transfer programming relies on input signal data words moving between the thermocouple module’s memory and a designated area in the PLC’s data table.

Frequently asked questions：

How many indicators are on 1794-IT8?
1794-IT8 has 1 red/green power status indicator.

What is the resolution of 1794-IT8?
The resolution of 1794-IT8 is 16 bits.

What are compatible Thermocouple sensors for use with the 1794-IT8?
The 1794-IT8 is compatible for use with J, K, E, R, N, S, B, C, T and L sensors.

What is the resolution of the 1794-IT8?
This 1794-IT8 has an input resolution of 16 bits (2.384 microvolts typical).

What is the data format of the 1794-IT8?
The 1794-IT8 has 16-bit 2’s complement or offset binary (unipolar).

Product Applications

Petroleum and Petrochemical Industry
Steel and Metallurgical Industry
Cement and Mining
Power system
