Technical specifications for 2094-BC04-M03-S

Part Number/Catalog No.	2094-BC04-M03-S
Product Description	Integrated Axis Module
Operating Temperature	32-122 F (0-50 C)
Power Dissipation	94-255 Watts
Converter Section Output	28 kW
Inverter Section Output Current	30 A
Input Voltage Range	400/460VAC
Bandwidth	Velocity Loop: 500 Hz Current Loop: 1300 Hz
PWM Frequency	4 kHz
Internal Shunt Continuous Power	200W
Internal Shunt Peak Power	22.5 kW
Module Location	Leftmost of the Power Rail
Module Type	IAM 400 Volt Class
AC Input Voltage	324-528 Volts rms 3 Phase (360-480 Volts nom)
AC Input Frequency	47-63 Hertz
AC Input Current (nom rms)	44.0 Amperes
AC Input Current (Max Inrush 0-peak)	31.1 Amperes
DC Input Voltage (Common Bus Follower)	458-747 Volts
DC Input Current (Common Bus Follower)	41.5 Amperes
Internal Shunt (Continuous Power)	200 Watts
Internal Shunt (Peak Power)	22.5 Kilowatts
Internal Shunt Resistor	28.75 Ohms
Efficiency	97%

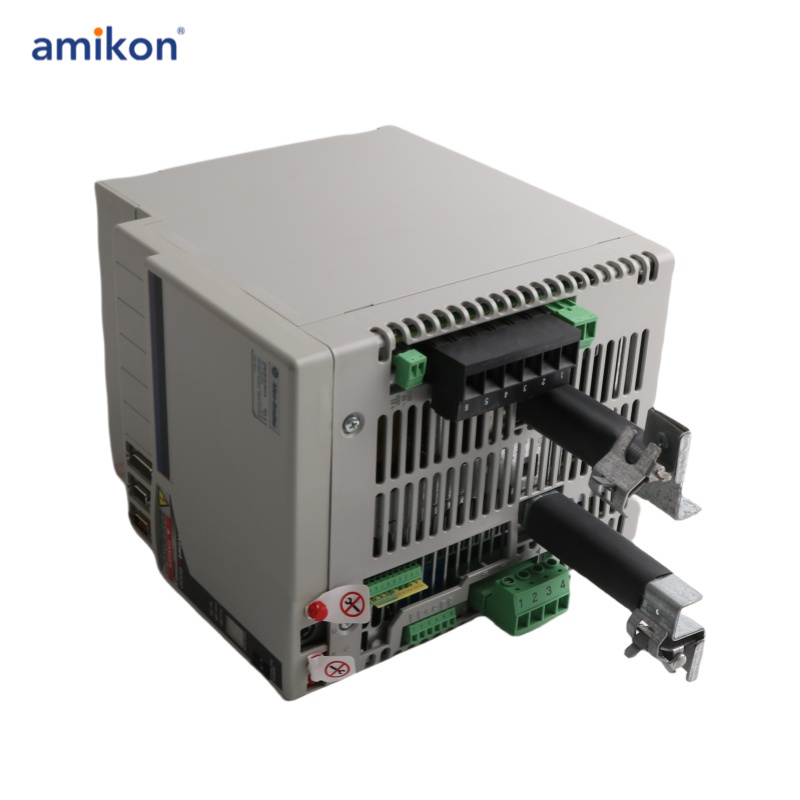

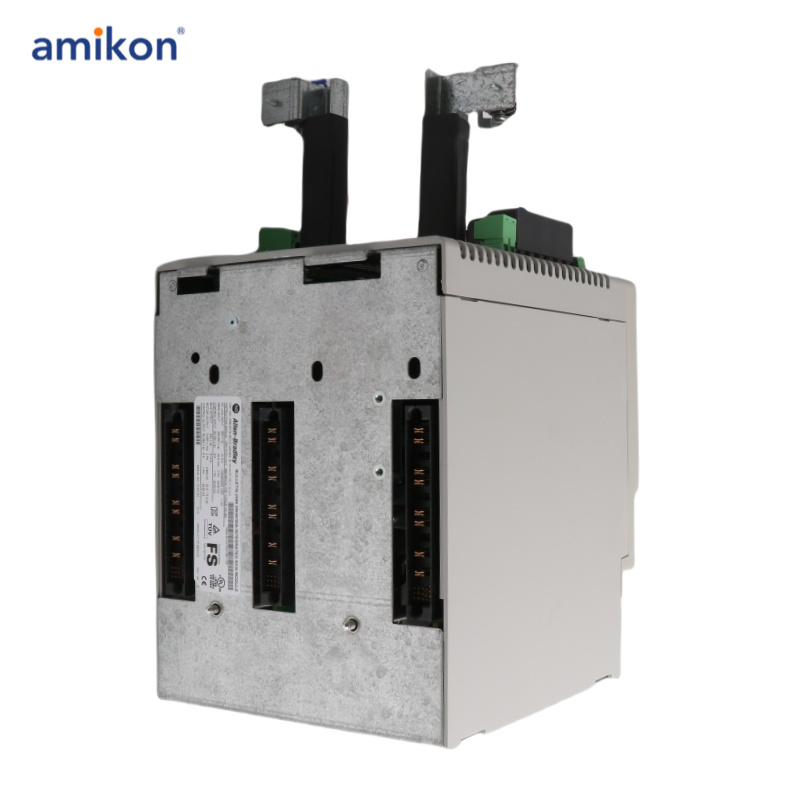

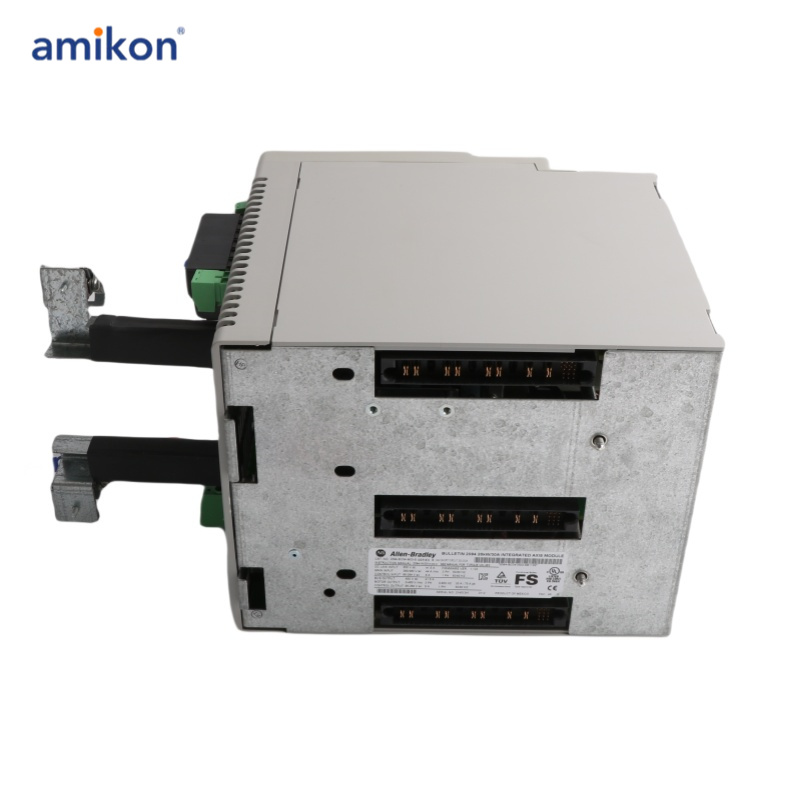

The 2094-BC04-M03-S is a Kinetix 6000 Drive system module designed as an Integrated Axis Module for inverter applications. This module has an output power rating of 53 Watts at 20% loading, 72 Watts at 40% loading, 93 Watts at 60% loading, 116 Watts at 80% loading, and 142 Watts at 100% loading.

This module includes both a converter and an inverter section. The converter section has an output rating of 28kW and a 30A rating for the inverter. It is also referred to as an AM power module. It comes with a wiring plug connector set for motor power (MP) and motor/resistive brake power (BC). However, connector kits for input and output interfaces, safety, auxiliary feedback signals (catalog numbers 2090-K6CK-D44M and 2090-K6CK-D44S0), and motor feedback (catalog number 2090-K6CK-D15M) are not included with this module.

Ground jumper settings are not always required when using this module. However, ungrounded or high-impedance power configurations do require proper jumper settings. To configure the ground jumper, the Integrated Axis Module (IAM) must be removed from the power rail, allowing access to modify the jumper position accordingly. By default, the module is set to a grounded position with P16 and P17 shorted, while an ungrounded configuration requires shorting P18 and P19 terminals.
