Technical specifications for 2094-BM03S

Part Number/Catalog No.	2094-BM03-S
Efficiency	98%
Weight	7.0 lbs (3.18 kg)
Product Description	Integrated Axis Module
Continuous Output Current	21.2 A
Continuous Output Current (sine)	30.0 A
Peak Current	53.0 A
Continuous power out (nom)	13.5 kW
Rated Output Power Range	94-255 Watts
Voltage Class	400V
Nom Drive Voltage	360-480 Volts (3 Phase)
Internal Shunt continuous power	200W
Internal shunt peak power	22.5 kW
Module Type	AM 400 Volt Class
Nom Input Voltage	650 Volts DC
Continuous Current (rms)	21.2 Amperes
Continuous Current (sine, 0-peak)	30.0 Amperes
Bandwidth Velocity Loop	500 Hertz
Bandwidth Current Loop	1300 Hertz
Internal Shunt (Continuous Power)	200 Watts
Internal Shunt (Peak Power)	22.5 Kilowatts
Internal Shunt Resistor	115 Ohms

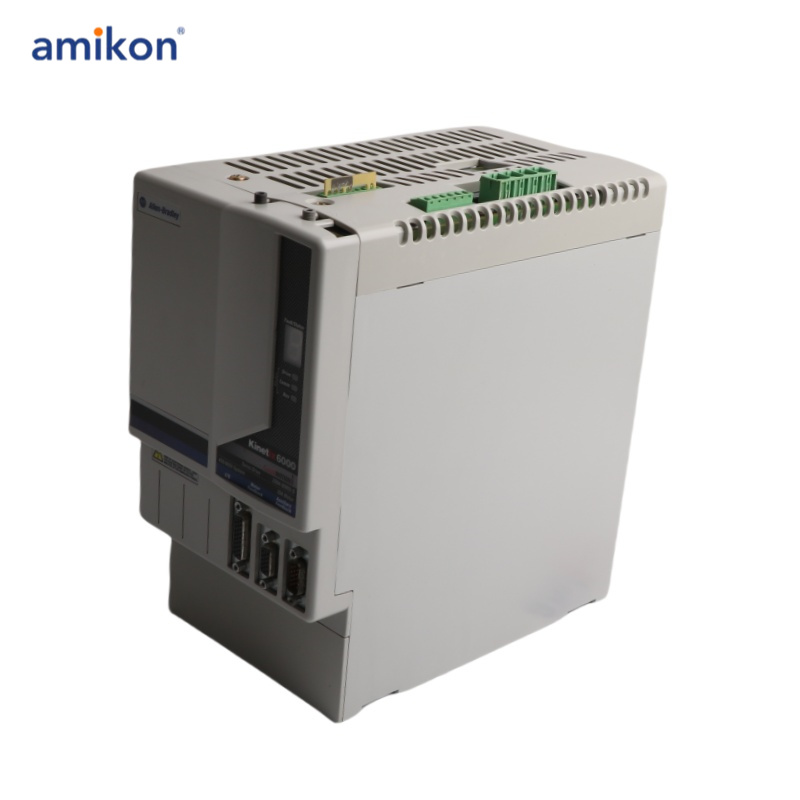

The 2094-BM03-S axis module is part of the Kinetix Multi-Axis Drive system. This axis module belongs to the 400VAC class, featuring a continuous current of 21.2 A, a peak current of 53.0 A, an efficiency of 98%, and a short-circuit current rating of 200,000 A (rms) symmetrical. It also includes an integrated Safe Torque-Off feature.

The 2094-BM03-S interfaces with rotary and linear motors via feedback cables. Input and output devices, as well as auxiliary feedback devices, are connected to the control module, which attaches directly to the axis module. This module mounts directly onto the power rail and requires the use of an integrated axis module, along with a shunt module and slot fillers.

The 2094-BM03-S has a continuous power output of 13.5 kW. It is available in Series A, B, and C. Series A supports standard peak overloads, while Series B and C provide both standard and enhanced peak overload capabilities.

This module has a peak inverter current rating of 150% for standard mode and 250% for peak enhanced mode. The rated power output is 94 Watts at 20% loading, 130 Watts at 40%, 169 Watts at 60%, 211 Watts at 80%, and 255 Watts at 100% loading. The module weighs approximately 4.58 kg (10.1 lbs).
