Product Specifications

Part Number	2098-DSD-020X
Bus Overvoltage	400 VDC
Bus Capacitance	1880 μF
Input Voltage (AC)	120 - 240 Voltage rms, 1-Phase
Input Frequency (AC)	47-63 Hz
Output Current (Continuous)	30 Amps (0-peak)
Output Current (Intermittent)	10 Amps (0-peak)
Continuous output power @ 230 VAC	1.0 kW
Continuous output power @ 480 VAC	2.0 kW
Output voltage	120 / 240 VAC rms, 3-Phase
Output current, peak	30 Amperes
Output frequency	0-400 Hz

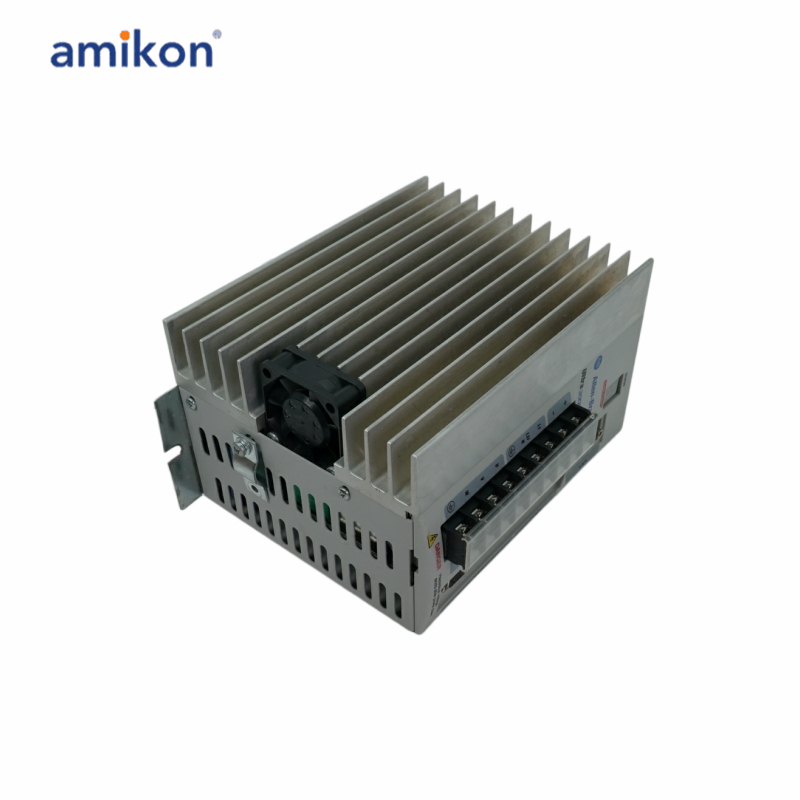

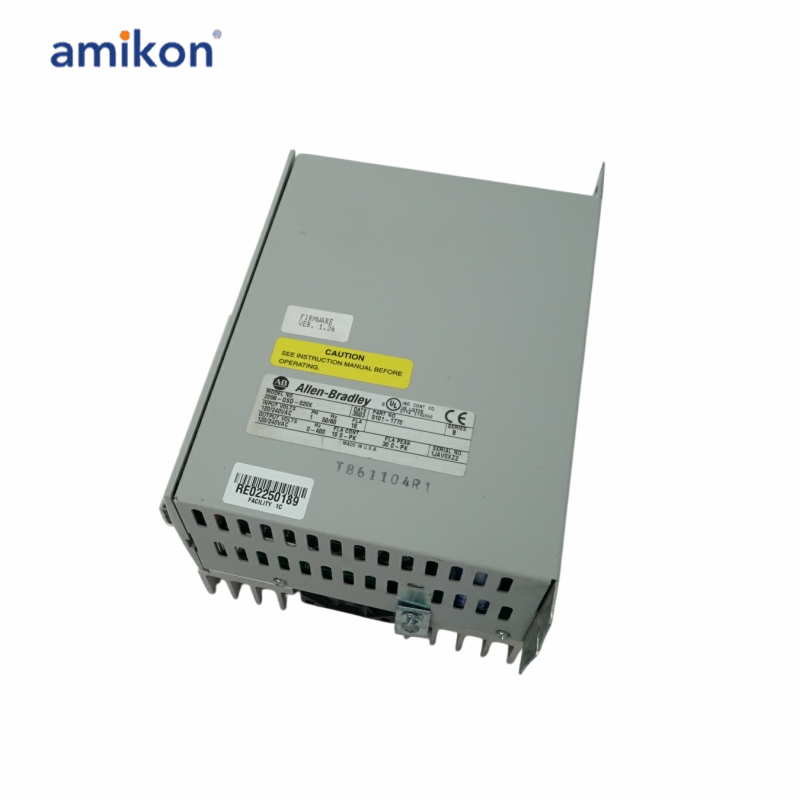

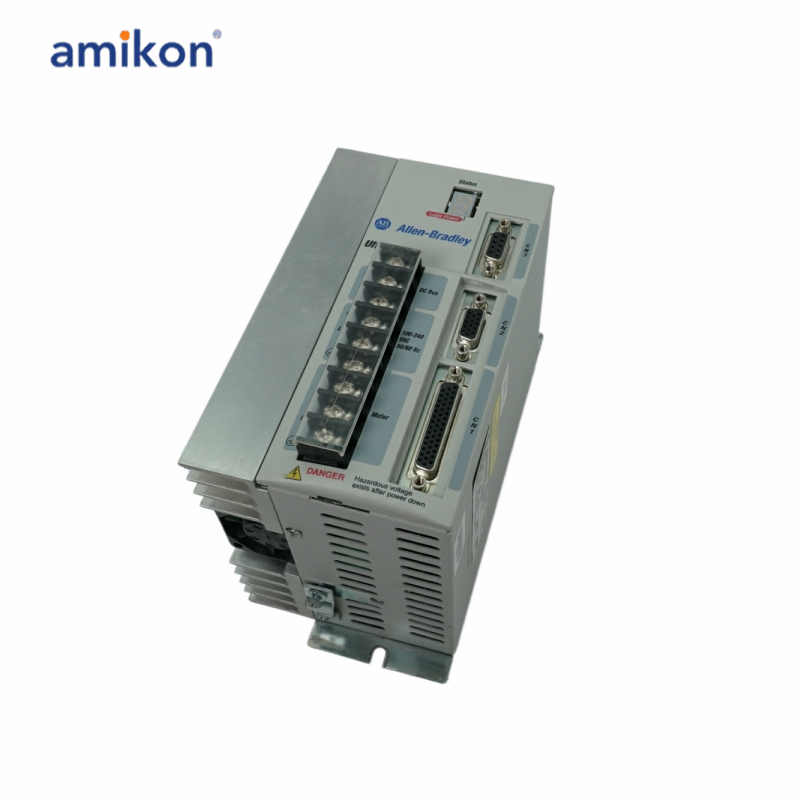

The 2098-DSD-020X is an Digital Servo Drive (DSD) from the Ultra 3000 Product family of motion control components. This drive is mainly used to interface with Servo motors such as Servo Motor series to implement motion and position control to the connected load. The 2098-DSD-020X accepts feedback position data from encoders such as the sine/cosine and incremental external encoders from the Bulletin 842HR, 844D, 847H, and 847T. The 2098-DSD-020X product is operable at an input supply voltage of 120VAC / 240 VAC, 1-Phase, 50-60 Hz, and an input current of 18 Amperes. This servo drive delivers an output voltage of 120 / 240 VAC, 3-Phase, programmable frequency range of 0-400 Hz, maximum continuous output current of 10 amperes, and maximum peak output current of 30 Amperes. It generates a continuous output power of 115 kW at 115 VAC input and 2.0 kW at 230 VAC input.

Frequently asked questions：

What are available series of the 2098-DSD-020X servo drive?
The 2098-DSD-020X are available in Series A, B and C.

Does the 2098-DSD-020X support SERCOS communication as well?
No. SERCOS port is not available natively to this drive.

Does the 2098-DSD-020X come with integrated communication interface?
Yes. The 2098-DSD-020X has built-in DeviceNet communication interface.

Does the 2098-DSD-020X support indexing feature?
Yes. The 2098-DSD-020X supports indexing function.

What is the output frequency of the 2098-DSD-020X?
The 2098-DSD-020X has an output frequency of 0-400 Hz.

Product Applications

Packaging Machinery
Printing & Paper Converting
Material Handling
General Motion Control
Electronics Assembly
