brand new 2711P-T12C4D2 Operator Terminals,2711P-T12C4D2 Operator Terminals suppliers,2711P-T12C4D2 Operator Terminals manufacturers,factories

Technical specifications for 2711P-T12C4D2

Part Number/Catalog No.	2711P-T12C4D2
Display Type	Active Matrix Thin-Film Resistor (TFT) with Cold Cathode Fluorescent (CCF) Backlight
Input Type	Touch
Display Size	12.1-in.
Product Family:	PanelView Plus Terminals
Product Type:	Operator Terminals
Display Area:	246 x 184 mm (9.7 x 7.2 in.)
Resolution:	800 x 600
Touch interface:	Analog resistive
Operating force:	10…110 g
Actuating lifespan:	1 million presses
Logic Module:	128 MB RAM; 128 MB non-volatile memory
Communication ports:	Ethernet, RS-232, 2 USB host
Power Supply Input Voltage range:	18-32VDC
Power Consumption:	70 W max (2.9 A at 24V DC); 39 W typical (1.6A @ 24V DC)
Product Line	Panelview Plus 1250
Communication	Serial or Ethernet
Input Power	18-32 Volts DC
Memory	128 Megabytes
Shipping Dimensions	11.12 x 14.3 x 2.17 inches

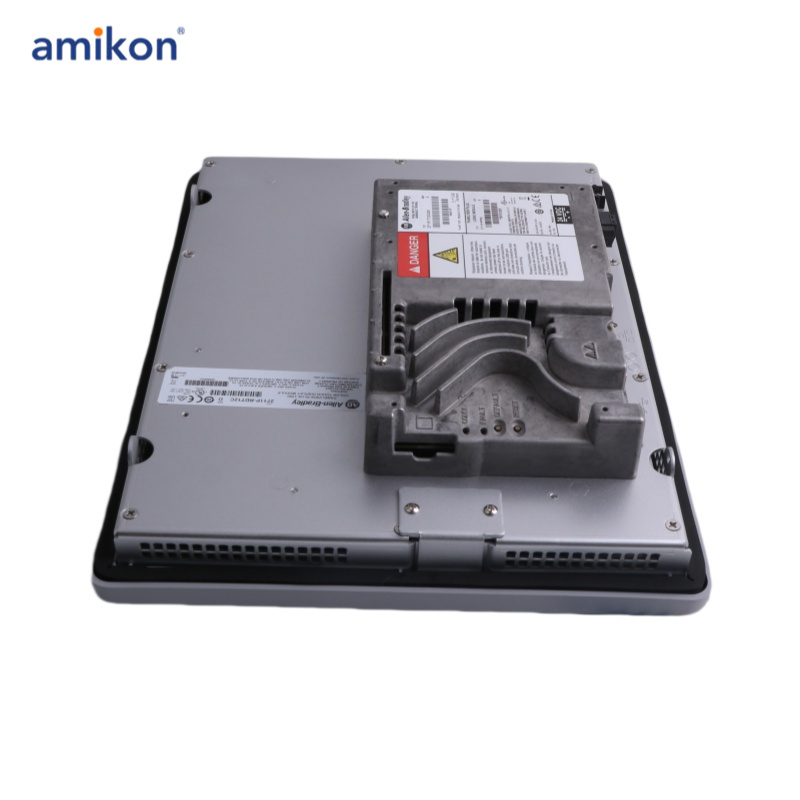

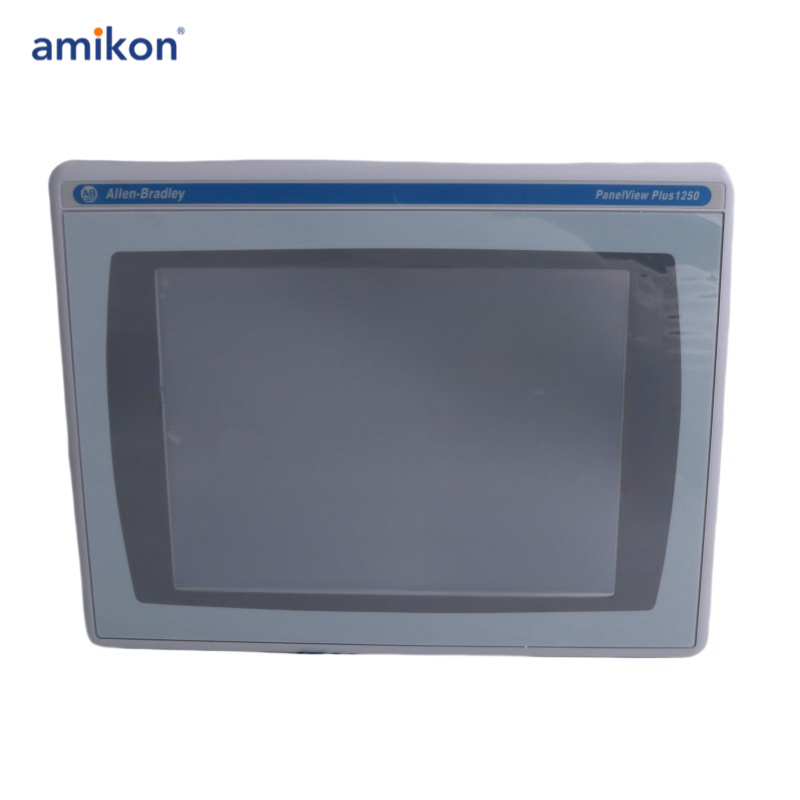

The 2711P-T12C4D2 is a PanelView Plus 1200 operator terminal, also known as a Human-Machine Interface (HMI) or Man-Machine Interface (MMI). This industrial device is designed to accurately display process mimics while providing real-time monitoring and control functions.

The main components of this model include a display screen, touch input interface, and communication ports. These components work together to perform the intended functions of the device. Specifically, the display screen is a 12.1-inch color display with a resolution of 800 x 600 pixels and a display area of 246 x 184 mm (9.7 x 7.2 inches). It features a built-in backlight with a luminance of 300 cd/m² (Nits). The backlight is of CCFL type with a minimum operational lifespan of 50,000 hours.

The operator interface utilizes an analog resistive touchscreen with an actuation rating of 1 million presses and an operating force range of 10-110 g. For communication with programmable controllers and other industrial devices, this operator terminal is equipped with one (1) Ethernet port, one (1) RS-232 port, and two (2) USB ports. The Ethernet port is mainly used for multi-node communication, while the RS-232 port supports DF1 and DH485 protocols for point-to-point, short-distance communication. The USB interface allows for external peripheral connections such as USB storage devices, keyboards, and removable drives. Additionally, this operator terminal supports third-party device integration for broader compatibility.
