brand new 74101-482-52 PCB Gate Drive Board,74101-482-52 PCB Gate Drive Board suppliers,74101-482-52 PCB Gate Drive Board manufacturers,factories

Technical specifications for 74101-482-52

Part Number/Catalog No.	74101-482-52
Description	PCB Gate Drive Board
Voltage	460V AC
Horsepower	50 HP
Frame Model	A,B,C,D, or E
Alternative Part Number	1336-BDB-SP18D
Product Lifecycle Status*	Discontinued/Obsolete

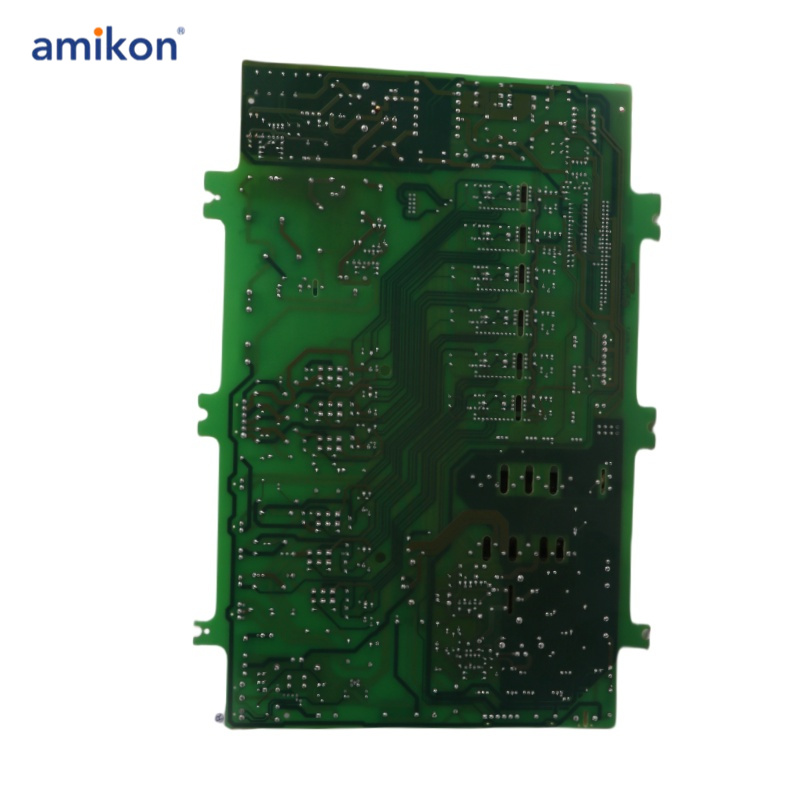

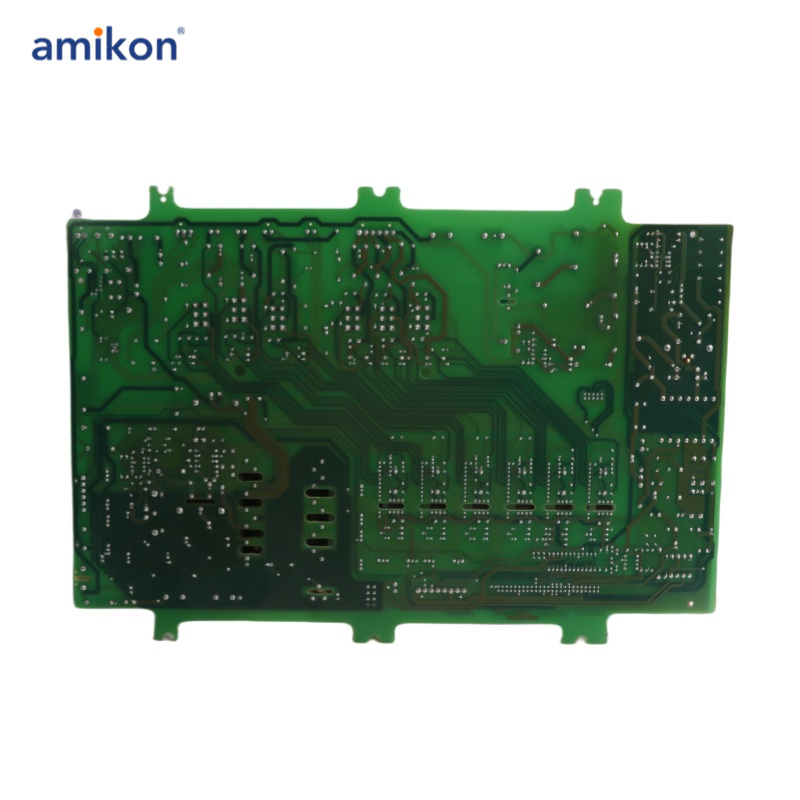

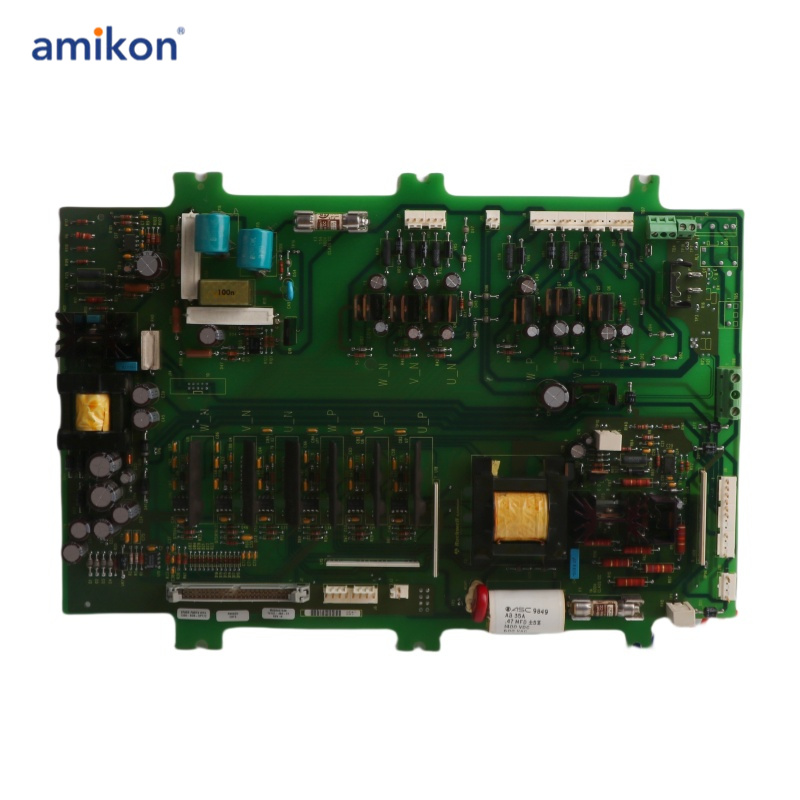

The 74101-482-52 drive is a gate driver PC board, previously known as the 1336-BDB-SP18D gate driver board. It is designed for use with 1336 series drives that have A, B, C, D, or E frames and 50 HP or 78 A ratings, with only one board installable per drive. The board operates with an input voltage of 460V AC.

The 1336 drive family includes five types: PLUS, CLASSIC, FORCE, PLUS II, and IMPACT. These drives support horsepower ratings ranging from 3 HP to 800 HP, and the 74101-482-52 board is compatible with all of them. The PLUS, CLASSIC, and PLUS II drives are optimized for general performance applications, whereas the IMPACT and FORCE drives are intended for high-performance operations. This gate driver board enhances the functionality of all these drives. Typically, these drives come with NEMA Type 1, 4, or 12 enclosure ratings for environmental protection.

The 1336 drives include multiple safety and protection features, such as safeguards against output short circuits, motor overload, output ground faults, and under-voltage or over-voltage conditions. These drives also feature UL panel recognition, analog I/O, single-point RIO, DeviceNet ports, Enhanced DeviceNet ports, and RS232/422/485 ports, among other communication options.

Additionally, these drives are equipped with human interface modules (HIM) that are available in different types, including blank, programmer, analog, and digital versions. A hardware enable function is also standard, located at Terminal 30, which is a non-programmable input. If this input is interrupted, the drive immediately stops operation and undergoes a ‘coast to stop’ process, ignoring any predefined stop mode set by the operator.
