Product Specifications

Part Number	AX561 1TNE968902R1301
Analog Input Channels	4
Analog Output Channels	2
Resolution	12-bit
Nominal Supply Voltage	24V DC
Mounting Type	DIN rail (TH35-15)
Unipolar Voltage Signal	0 V ~ +5 V, 0 V ~ +10 V
Bipolar Voltage Signal	-2.5 V ~ +2.5 V, -5 V ~ +5 V
Current Signal	0 ~ 20 mA, 4 ~ 20 mA
Operating Temperature	0°C ~ +60°C
Storage Temperature	-40°C ~ +70°C

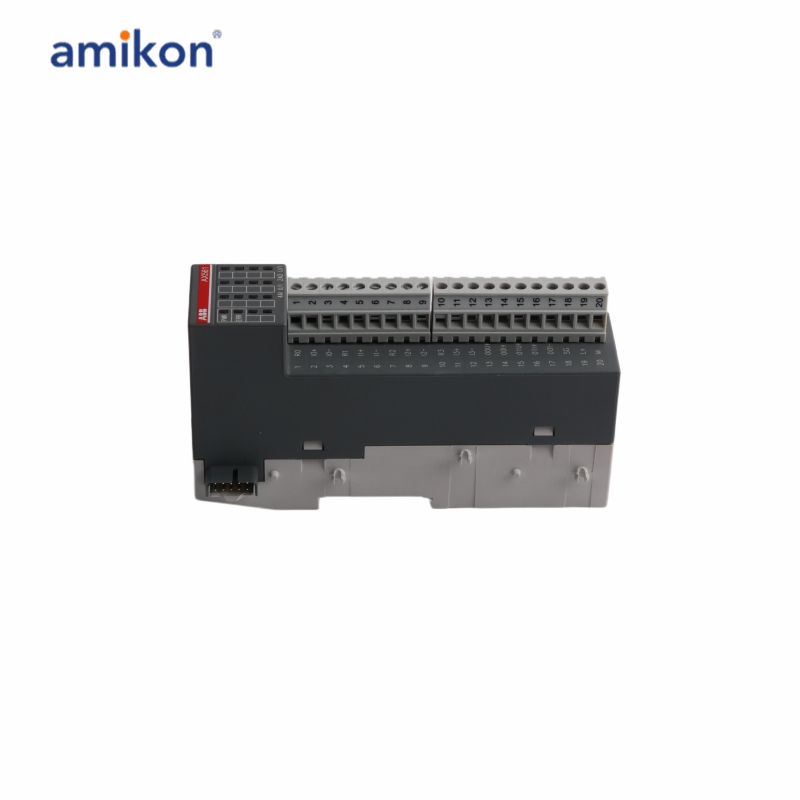

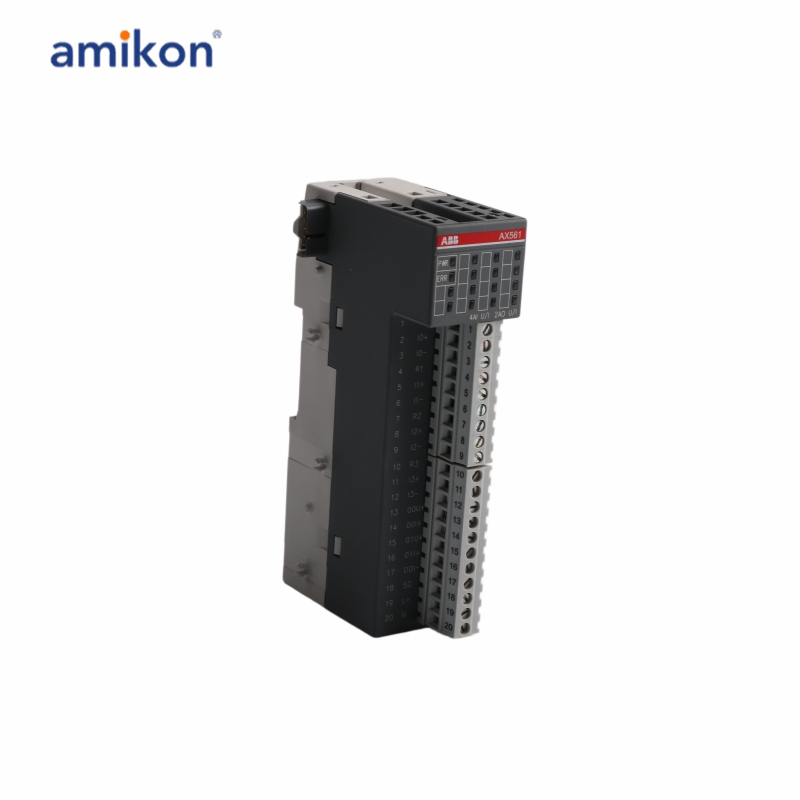

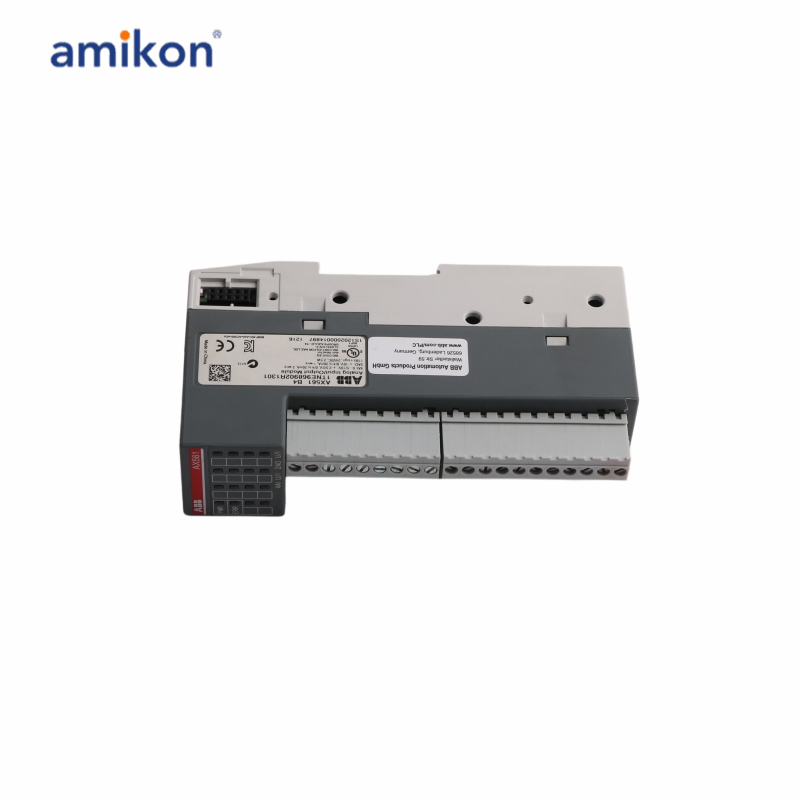

The ABB AX561 1TNE968902R1301 Analogue I/O Module is a versatile analog interface module designed for industrial and process control applications. It features four analog input channels and two analog output channels with 12-bit resolution, providing accurate signal acquisition and control for a wide range of field devices. Operating from a nominal 24 VDC power supply, the module integrates easily into ABB systems and mounts conveniently on a standard TH35-15 DIN rail.
The AX561 supports multiple analog signal types, including unipolar voltage ranges of 0 to +5 V and 0 to +10 V, bipolar voltage ranges of -2.5 to +2.5 V and -5 to +5 V, as well as 0–20 mA and 4–20 mA current signals.

Frequently asked questions：

Q1: What is the ABB AX561 1TNE968902R1301 Analogue I/O Module used for?
A1: The ABB AX561 1TNE968902R1301 is an analogue input/output module for ABB AC500-eCo PLC systems. It provides reliable acquisition of analogue input signals and generation of analogue output signals for industrial , process control, and machine control applications.

Q2: How many analogue input and output channels does the AX561 1TNE968902R1301 module provide?
A2: The AX561 features 4 analogue input channels (AI) and 2 analogue output channels (AO), supporting both voltage and current signal types.

Q3: What is the resolution of the AX561 1TNE968902R1301 module?
A3: The AX561 1TNE968902R1301 module provides 12-bit resolution, delivering accurate analogue signal measurement and output for industrial control applications.

Q4: What is the AX561 1TNE968902R1301 nominal operating voltage?
A4: The AX561 operates with a nominal supply voltage of 24 VDC, making it compatible with standard industrial PLC power systems.

Product Applications

Mechanical manufacturing and processing plants
Water treatment and environmental protection plants
HVAC and smart building applications
Packaging and textile plants
New energy and power plants
