Product Specifications

Product Type	Main control board
Model	RDCU-02C ASXR7220
Manufacturer	ABB
Operating Temperature	-20°C to +70°C
Power Consumption	5W
Communication Interface	Ethernet, Modbus TCP/IP
Storage Capacity	8MB Flash, 1MB SRAM
Processing Speed	600 MHz
Operating Frequency	Up to 2 GHz
Input Voltage Range	100V to 240V AC/DC

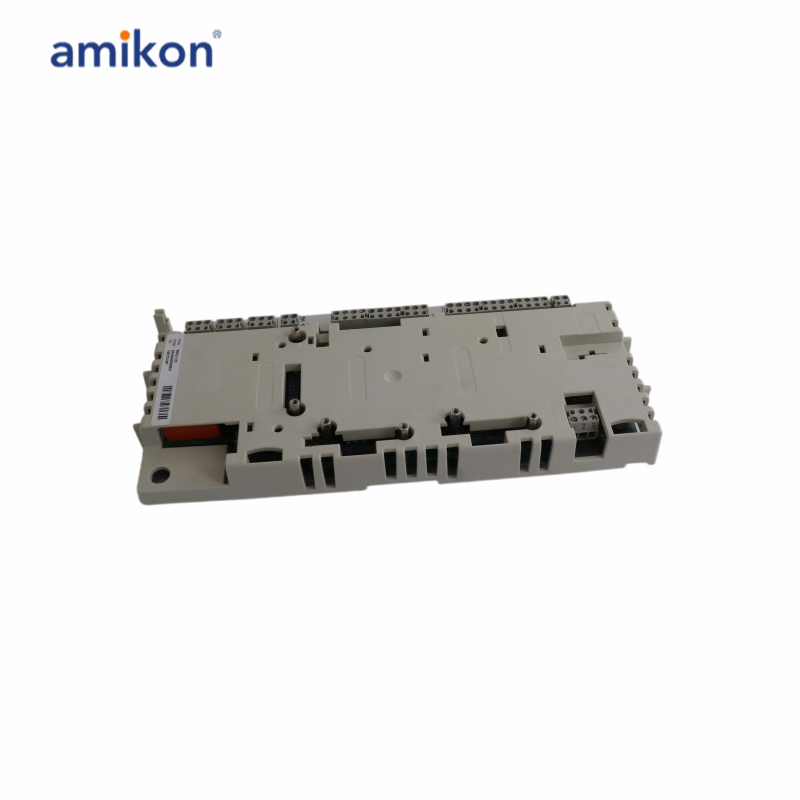

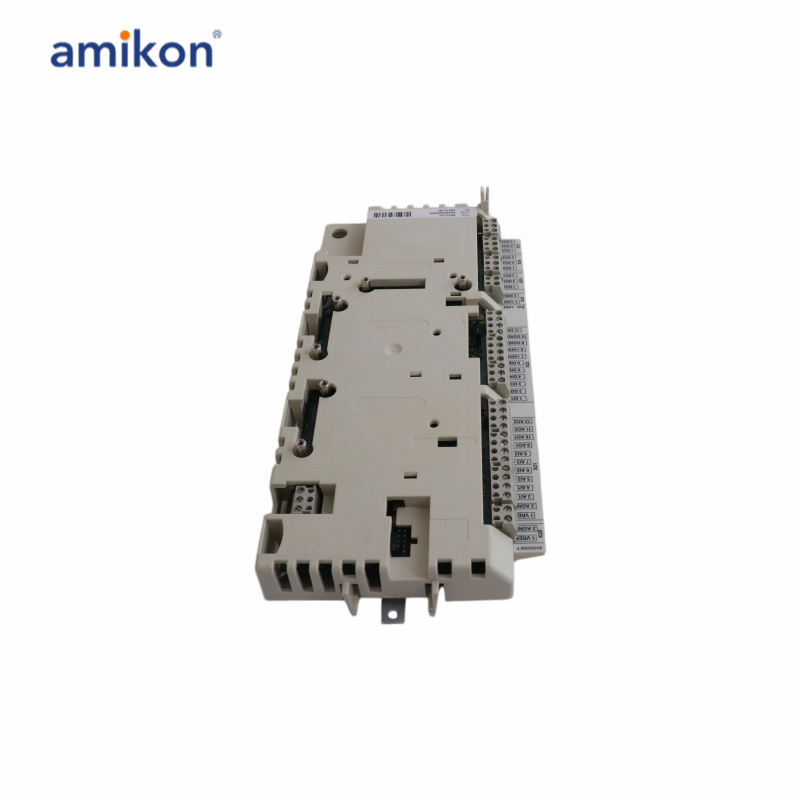

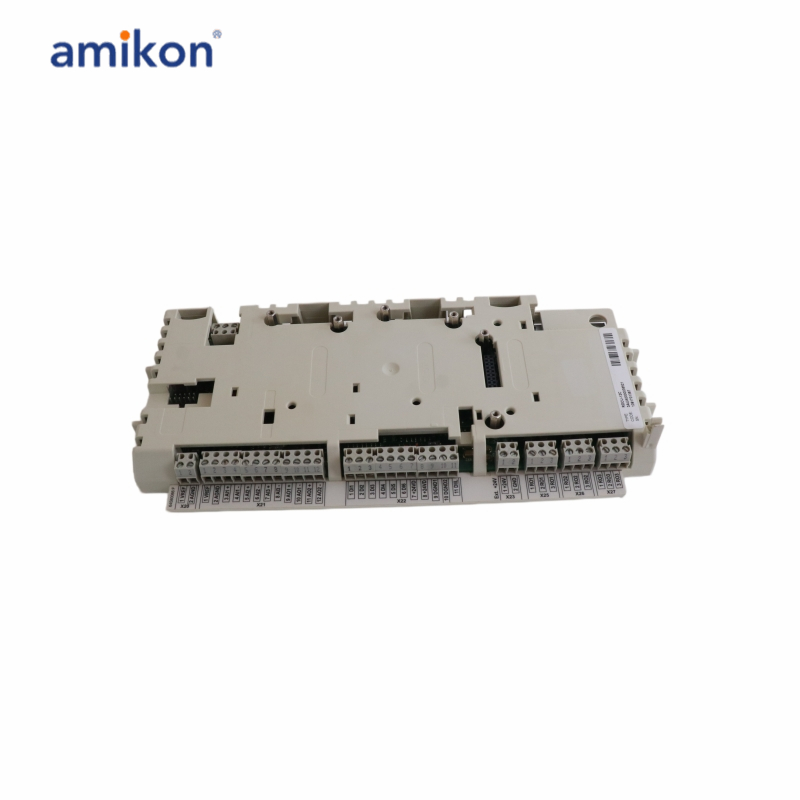

The ABB RDCU-02C ASXR7220 Main Control Board is a high-performance control module for industrial and drive systems, providing reliable processing and communication capabilities. Featuring a 600 MHz processor with 8 MB of Flash memory and 1 MB of SRAM, it delivers efficient data processing and dependable real-time control. The board supports Ethernet and Modbus TCP/IP communication, allowing seamless integration with PLCs, HMIs, and industrial control networks.
The RDCU-02C operates from a wide input voltage range of 100 to 240 V AC/DC while consuming only 5 W of power, ensuring energy-efficient operation. It supports operating frequencies of up to 2 GHz and performs reliably in ambient temperatures ranging from -20°C to +70°C.

Frequently asked questions：

Q1: What is the ABB RDCU-02C ASXR7220 Main Control Board used for?
A1: The ABB RDCU-02C ASXR7220 Main Control Board is a drive control board used in ABB industrial drive systems. It manages motor control, drive communication, diagnostics, and overall system operation for reliable performance.

Q2: What is the RDCU-02C ASXR7220 operating temperature range of the control board?
A2: The RDCU-02C ASXR7220 board operates within a temperature range of -20°C to +70°C, making it suitable for demanding industrial environments.

Q3: How much power does the RDCU-02C ASXR7220 board consume?
A3: The RDCU-02C ASXR7220 typical power consumption is 5 W, providing efficient operation while minimizing energy usage.

Q4: What memory capacity does the RDCU-02C ASXR7220 provide?
A4: The RDCU-02C ASXR7220 board is equipped with 8 MB Flash memory and 1 MB SRAM, supporting firmware storage, control programs, and high-speed data processing.

Product Applications

Metallurgy and Mining
Oil and Gas
Lifting and Port Machinery
Paper and Textile
Water Treatment and Power
