Product Specifications

Part Number	LD106
Operating Voltage	12V - 24V DC / AC
Inductance Adjustment Range	15 ~ 1500 μH
Operating Frequency Range	Approx. 23 ~ 130 kHz
Normal Mode	120 ms
Low Power Mode	1 s
Operating Temperature	-40°C to +80°C
Storage Temperature	-40°C to +85°C

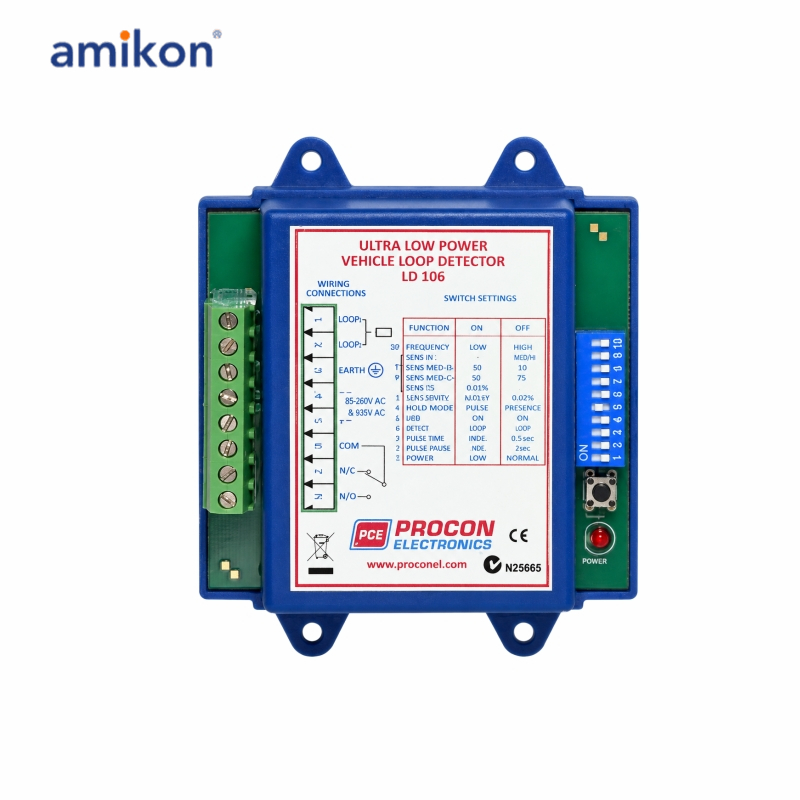

The LD106 is an ultra low power single channel inductive loop detector designed for parking and access control applications. The LD106 can be configured for low power for operation from a battery or solar panel. The detector consumes less than 2mA of supply current when there is no vehicle on the loop. The detector is connected to an inductive loop mounted in the road surface. When vehicles pass over the loop, the detector switches on an output. The use of microprocessor and surface mount technology enables a large number of functions to be incorporated into a small package. The LD106 is easy to set up and install.

Frequently asked questions：

Q : What are the exact response times of the LD106 unit?
A: In Normal Mode, the response time is approximately 120ms. In Low Power Mode, it increases to roughly 1 second.

Q: Can the LD106 operate in extreme weather conditions?
A: Yes, it is built with an industrial-grade wide temperature range, allowing it to function reliably from -40°C up to +80°C.

Q : What is the required operating voltage for the LD106?
A: It features a flexible power input that supports both 12V to 24V AC and 12V to 24V DC.

Q : What range of loop inductance can the LD106 handle?
A: It has an automatic tuning range of 15 μH to 1500 μH, which makes it compatible with almost any standard ground loop installation.

Product Applications

Security circuits for barriers or gates.
Arming circuits for activating card issuers.
Entrance/exit circuits and vehicle counting.

Grab an Extra Discount - Contact Sales Manager Lisa Lin Today :
:sales7@amikon.cn :+86-18965423501 :AMKPLC

We provide a 12-month warranty and worldwide stock availability to guarantee smooth integration and prompt delivery for your daily operations.
