Product Specifications

Part Number	D3G146-AH50-16
Voltage	200–277 VAC
Frequency	50/60 Hz
Current	1.20 A
Power Input	165 W
Speed	1700 RPM

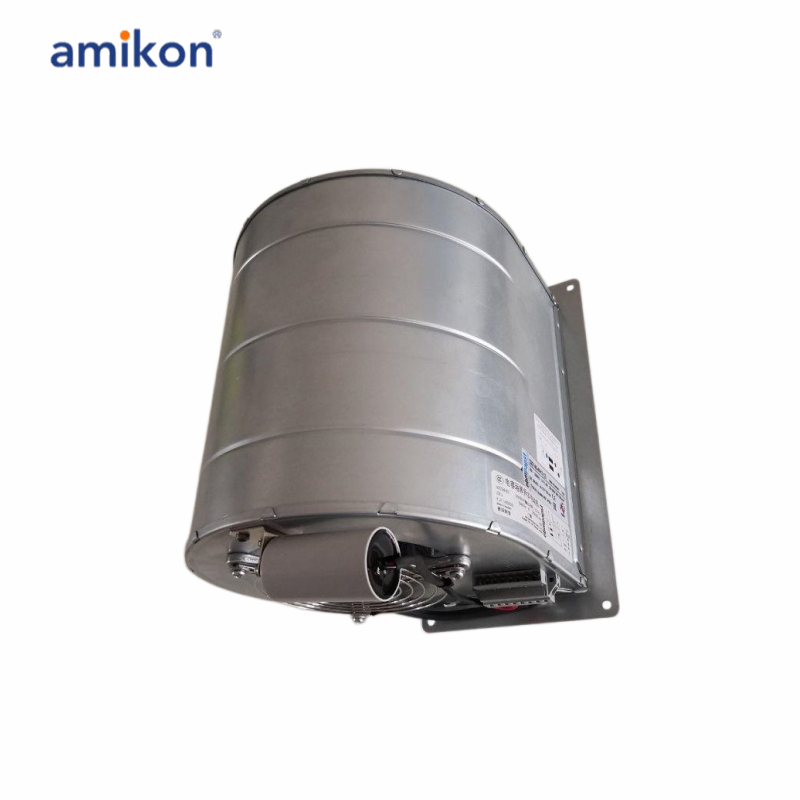

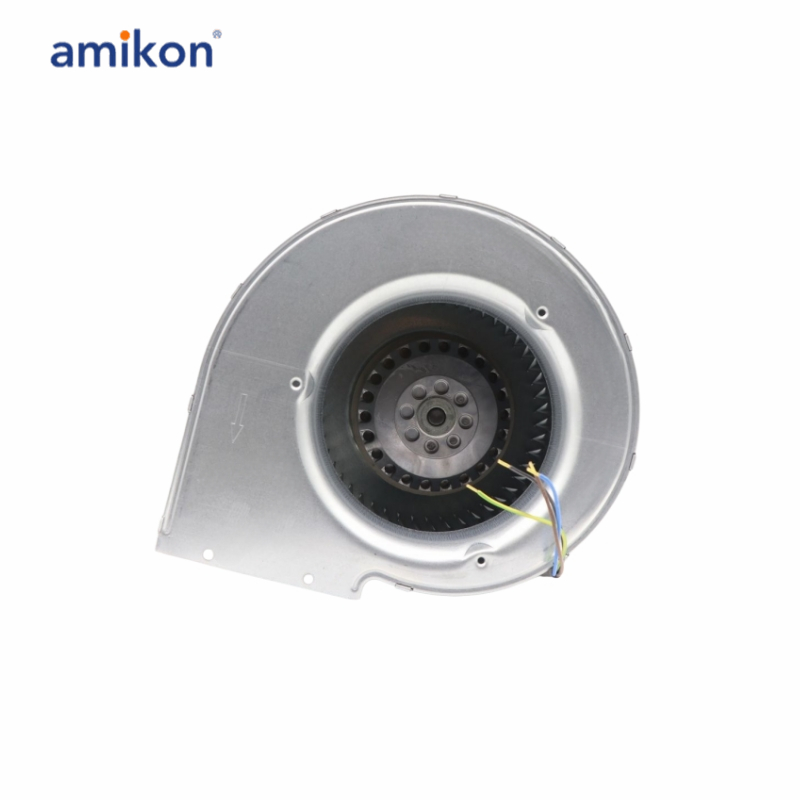

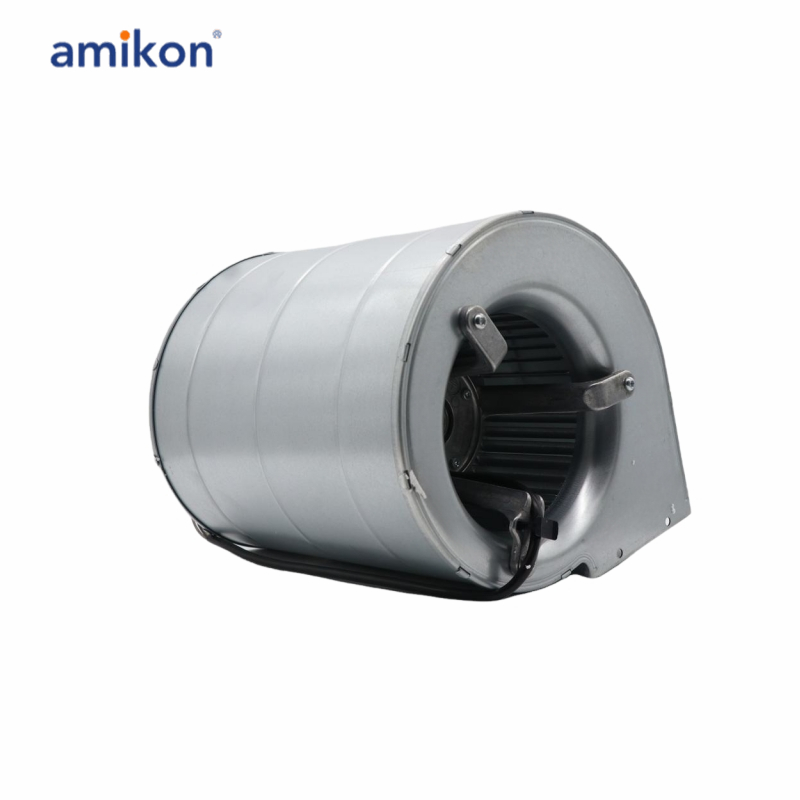

The ebm-papst D3G146-AH50-16 is a centrifugal cooling fan and dual-inlet EC blower designed for cooling applications associated with industrial inverters and variable speed drives. Its configuration provides forced-air cooling for equipment where continuous airflow is required during operation.

The D3G146-AH50-16 operates from a 200–277 V power supply and supports both 50 Hz and 60 Hz frequencies. This specified voltage and frequency range allows the blower to operate within the stated electrical supply conditions of compatible industrial equipment.

The blower has a specified power input of 165 W. This value, together with the 200–277 V operating voltage, 1.2 A current, and 1700 RPM rotational speed, defines the key operating characteristics provided for this model.

Frequently asked questions：

Q : What is the rated voltage and power of the D3G146-AH50-16 fan?
A: It operates on a single-phase wide voltage input of 200–277 V AC at 50/60 Hz, with a rated power consumption of 165 W.

Q : What are its maximum airflow and speed ratings?
A: Under optimal conditions, it delivers a maximum airflow of 1,125 m³/h at a nominal speed of 1,700 RPM.

Q : How do I control the speed of the D3G146-AH50-16?
A: The onboard control electronics support dual control inputs: a 0–10 VDC linear signal or a PWM (Pulse Width Modulation) signal.

Q : What is the permissible ambient temperature operating range?
A: It is designed to safely operate in ambient factory temperatures ranging from -25 °C up to +60 °C.

Product Applications

Inverters and Electrical
Ventilation and Air Conditioning (HVAC)
Refrigeration and Heating Equipment
Rail Transportation and Industrial Machinery
