Communication Protocol:SSI
Data Rate:Up to 1 Mbps
Input Channels:4 channels
Output Channels:2 channels
Power Supply:12 to 24V DC
Operating Temperature:-40°C to +70°C
Dimensions:5.4 x 4.5 x 1.3 inches
Weight:0.4 lbs

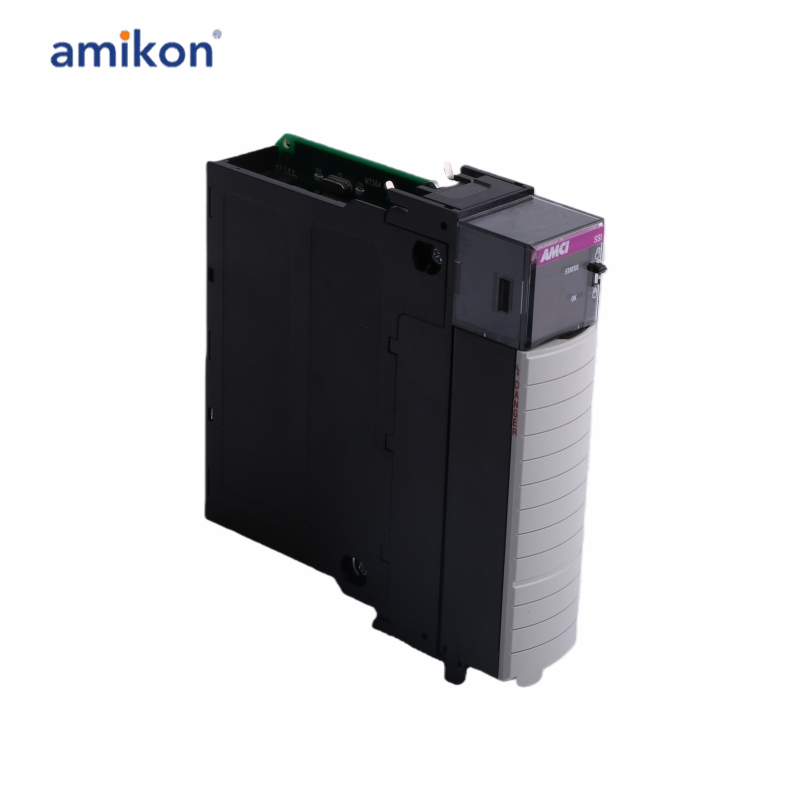

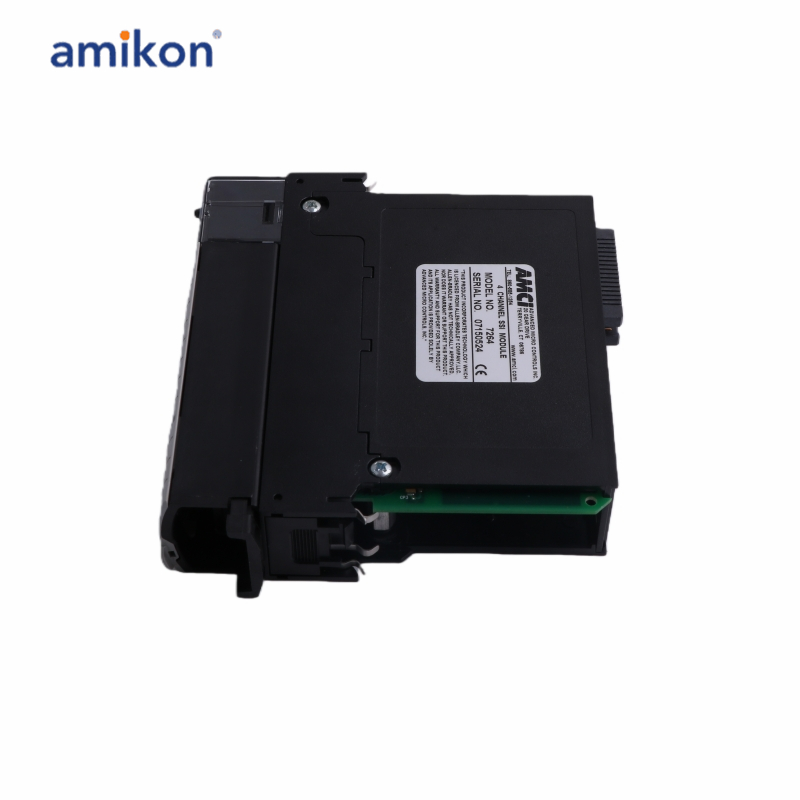

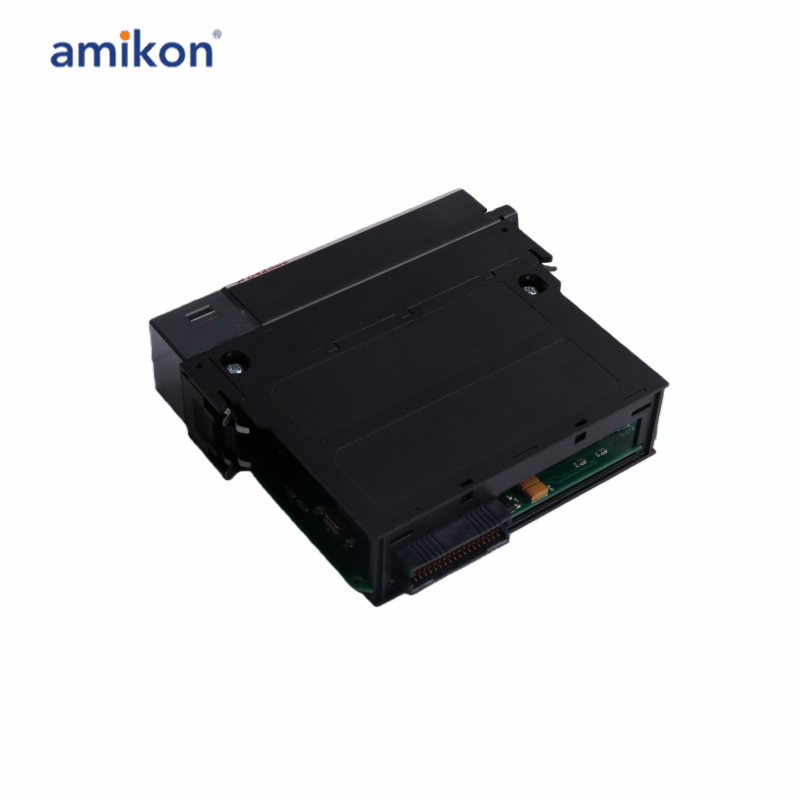

The 7264 module is a four channel SSI interface module that resides in a rack . This module is capable of connecting to four independent SSI output sensors. This module also has four latching inputs, one for each channel, which can be used to capture the sensor’s data.
The 7264 module communicates with the PLC using input and output registers. The Data value, Velocity, Actual SSI data, Latched Value, and Status information are reported to the Input Registers.All module setup parameters, including Preset Value, Count Direction, Velocity Response Time, as well as the SSI parameters [Data Type (binary or gray code), Data (positive or negative), Number of Clock Bits, Number of Data Bits, MSB Number, and Clock Frequency] are programmed through Message Instructions.
Through the use of different rack Assembly Instances, the 7264 can be configured to operate with one, two, three, or all four of the available four channels. Disabling any unused channels is recommended because the module will stop all activities associated with the unused channels, improving the module’s throughput time.
