Product Specifications

Part Number	8V1022.001-2
Plug-in Module Slots	4
Frequency	50 / 60 Hz ±4%
Maximum Installed Load	3 kVA
400 VAC Inrush Current	4 A
Minimum Switch-on Interval	>10 s
DC Bus Capacitance	235 µF
Input Voltage	24 VDC ±25% (Max 30 VDC)
Input Capacitance	8200 µF
Derating (above 500 m altitude)	0.22 Aeff per 1000 m
Continuous Current	2.2 Aeff
Peak Current	14 Aeff
Nominal Switching Frequency	20 kHz
Selectable Switching Frequencies	5 / 10 / 20 kHz
Maximum Motor Line Length	25 m
Maximum Output Frequency	598 Hz

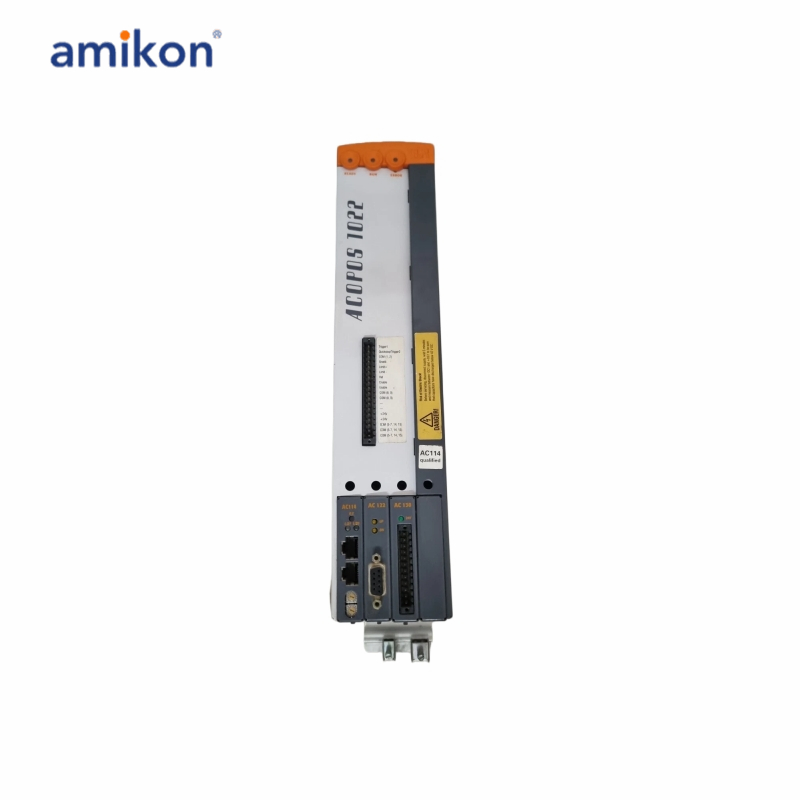

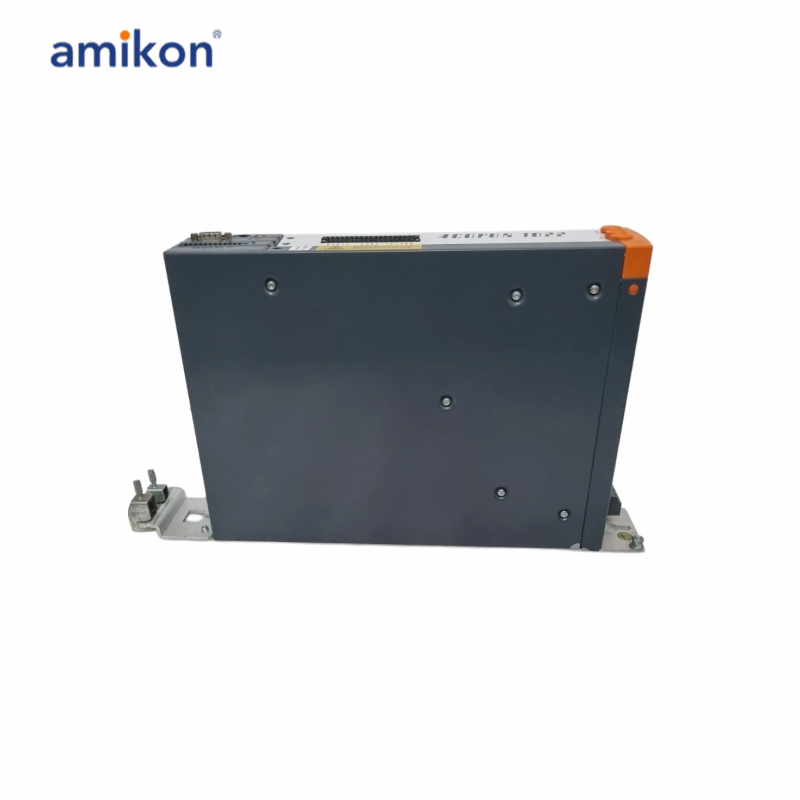

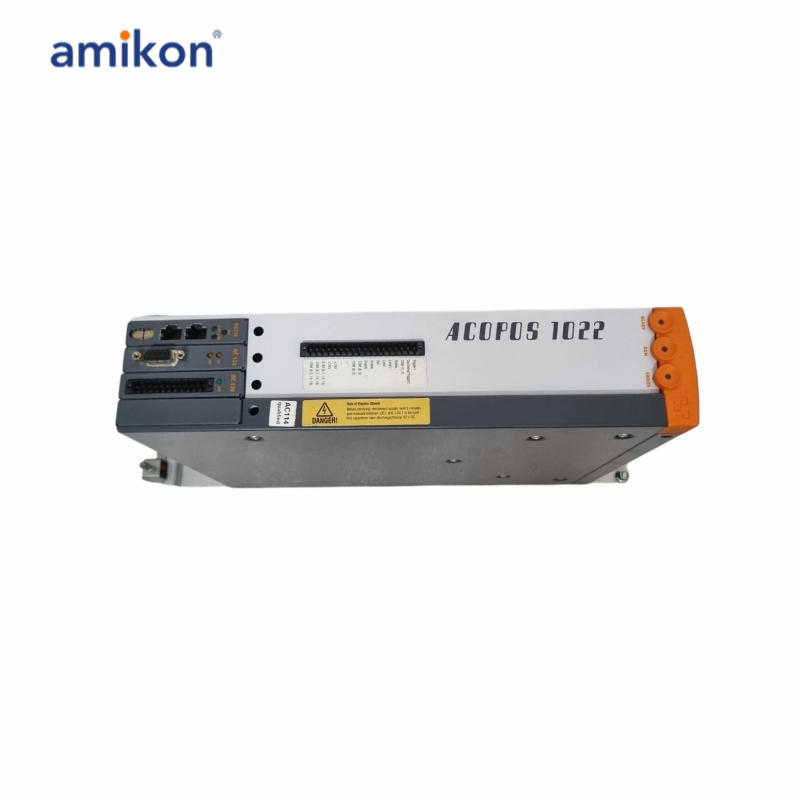

The B&R 8V1022.001-2 ACOPOS Servo Drive delivers accurate and efficient motion control for industrial , robotics, packaging equipment, machine tools, and CNC applications .The servo drive provides a continuous output current of 2.2 A and a power rating of 1 kW. Four expansion slots allow users to customize the system with additional communication interfaces, feedback technologies, and control modules. Additional features include a 235 µF DC bus capacitance, 24 VDC auxiliary power input, 8200 µF input capacitance, and altitude compensation characteristics that help ensure stable performance in varying operating conditions. The B&R 8V1022.001-2 remains a reliable choice for manufacturers seeking high-performance industrial spare parts and motion control solutions.

Frequently asked questions：

Q1: What is the B&R 8V1022.001-2 Servo Drive used for?
A: The B&R 8V1022.001-2 is a servo drive used to control and regulate servo motors in industrial systems. It provides precise motion control for applications requiring accurate positioning, speed regulation, and torque control.

Q2: How many plug-in module slots does the 8V1022.001-2 provide?
A: The 8V1022.001-2 servo drive features 4 slots for plug-in modules, allowing system expansion and flexible configuration based on application requirements.

Q3: What input frequency does the 8V1022.001-2 servo drive support?
A: The 8V1022.001-2 drive supports an input frequency of 50 / 60 Hz ±4%, making it compatible with most industrial power systems worldwide.

Q4: What is the maximum installed load of the 8V1022.001-2?
A: The 8V1022.001-2 servo drive supports a maximum installed load of 3 kVA, enabling it to power a wide range of motion control applications.

Product Applications

Packaging Machinery
Textile Machinery
Plastics and Rubber Machinery
Robots and Manipulators
Printing and Paper Machinery
Machine Tools and Metalworking
