Product Specifications

Part Number	8V1090.001-2
Frequency	50 / 60 Hz ±4%
Maximum Installed Load	10 kVA
400 VAC Inrush Current	7 A
Minimum Switch-on Interval	>10 s
Continuous Current	8.8 Aeff
Peak Current	24 Aeff
Nominal Switching Frequency	10 kHz
Selectable Switching Frequencies	5 / 10 / 20 kHz
Peak Power Output	7 kW
Continuous Power	200 W
Nominal Input Voltage	24 VDC
Maximum Input Voltage	30 VDC
Input Current (Nominal Voltage)	Approx. 4 mA
Switching Delay	Max. 2.0 ms
Modulation Relative to Ground Potential	Max. ±38 V

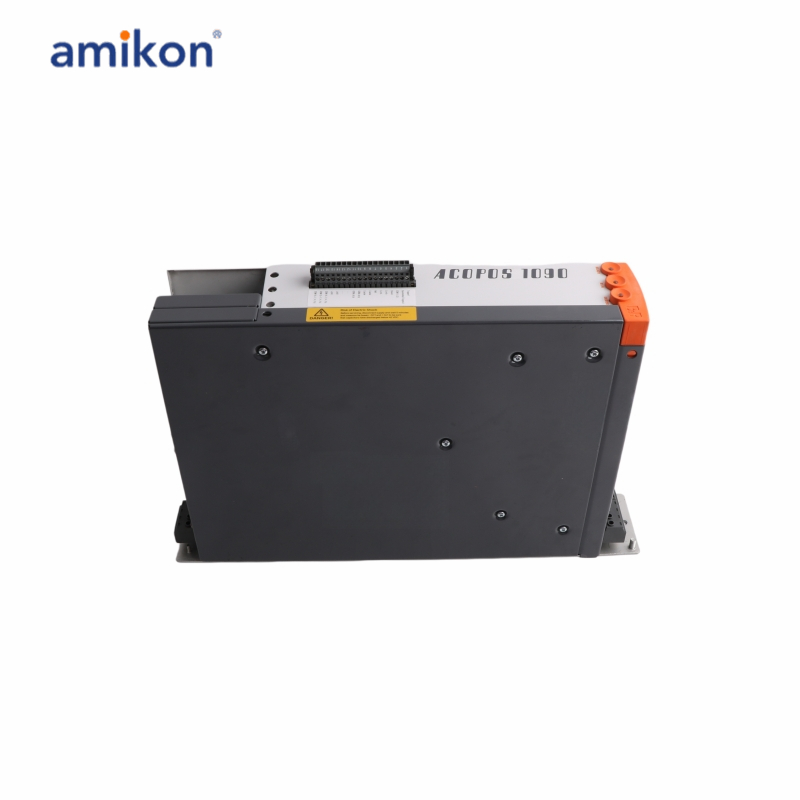

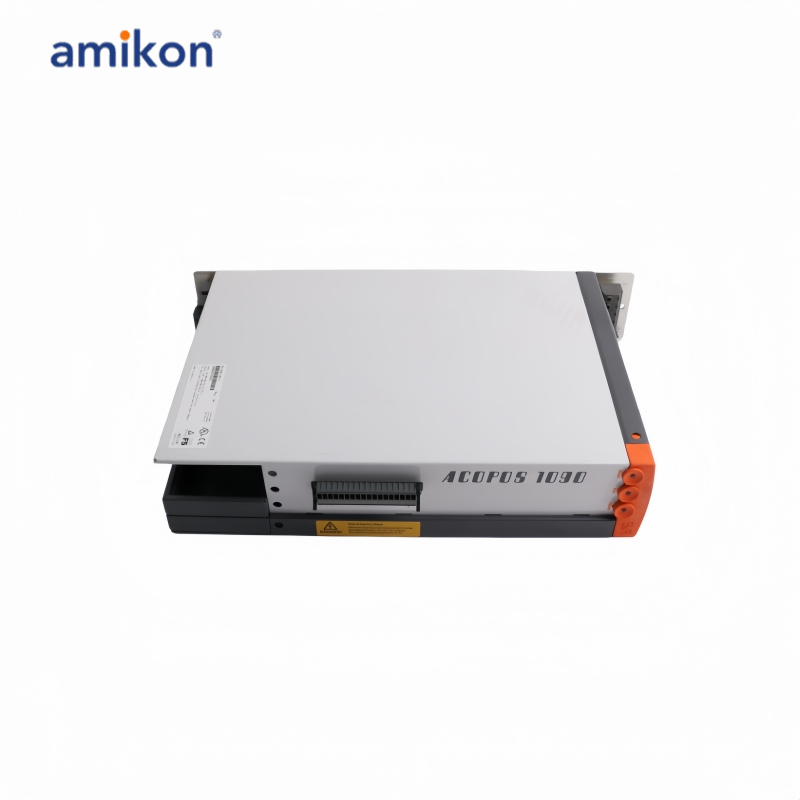

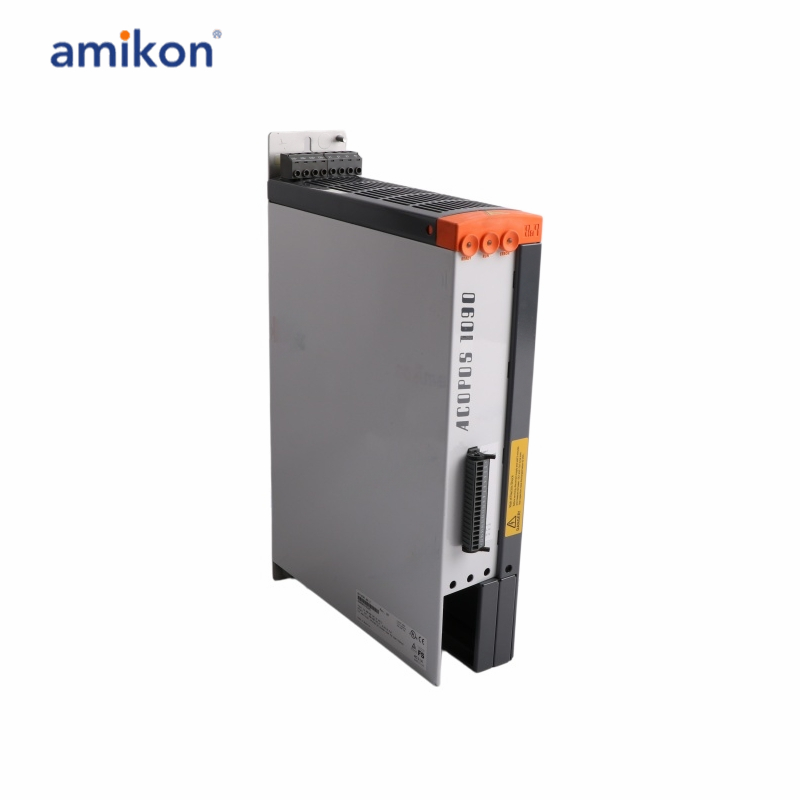

The B&R 8V1090.001-2 ACOPOS Servo Drive is an industrial servo control unit engineered for advanced and motion control applications. Supporting 3-phase 400–480 VAC input power, the drive incorporates an integrated line filter, built-in braking resistor, and electronic restart interlock to ensure efficient and reliable machine operation.

Frequently asked questions：

Q1: What is the B&R 8V1090.001-2 Servo Drive used for?
A: The B&R 8V1090.001-2 is a high-performance servo drive used for controlling servo motors in industrial systems.

Q2: What input frequency does the 8V1090.001-2 support?
A: The 8V1090.001-2 servo drive supports an input frequency of 50 / 60 Hz ±4%, allowing compatibility with a wide range of industrial power networks.

Q3: What is the maximum installed load of the 8V1090.001-2?
A: The 8V1090.001-2 drive supports a maximum installed load of 10 kVA, making it suitable for demanding motion control applications and larger servo systems.

Q5: What is the 8V1090.001-2 inrush current at 400 VAC?
A: The B&R 8V1090.001-2 has an inrush current of 7 A at 400 VAC during power-up.

Product Applications

Packaging Machinery
Printing and Papermaking
Plastics Processing
Textile Machinery
Robots and Robots
Metal Processing and Wood Processing
Electronics and Semiconductor Manufacturing
