Product Specifications

Part Number	X20CP1484-1
Bus Power Consumption	1.42 W
Internal I/O Power Consumption	0.6 W
Operating Temperature Range	5°C ~ 55°C
Vibration Rating	4 g
Input Voltage	24 VDC -15% / +20%
Max Input Current	2.2 A
Nominal Output Power	7 W
Nominal Output Voltage	24 VDC
Permissible Contact Load	10 A
Remanent Variables Memory	Max. 64 kB
Shortest Task Class Cycle Time	800 µs
Typical Instruction Cycle Time	0.007 µs

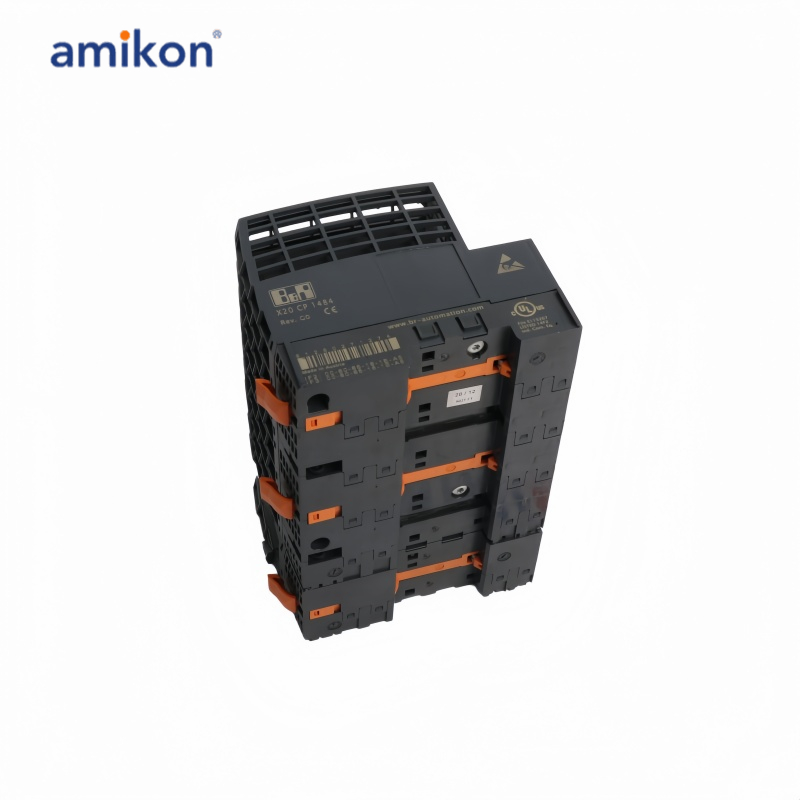

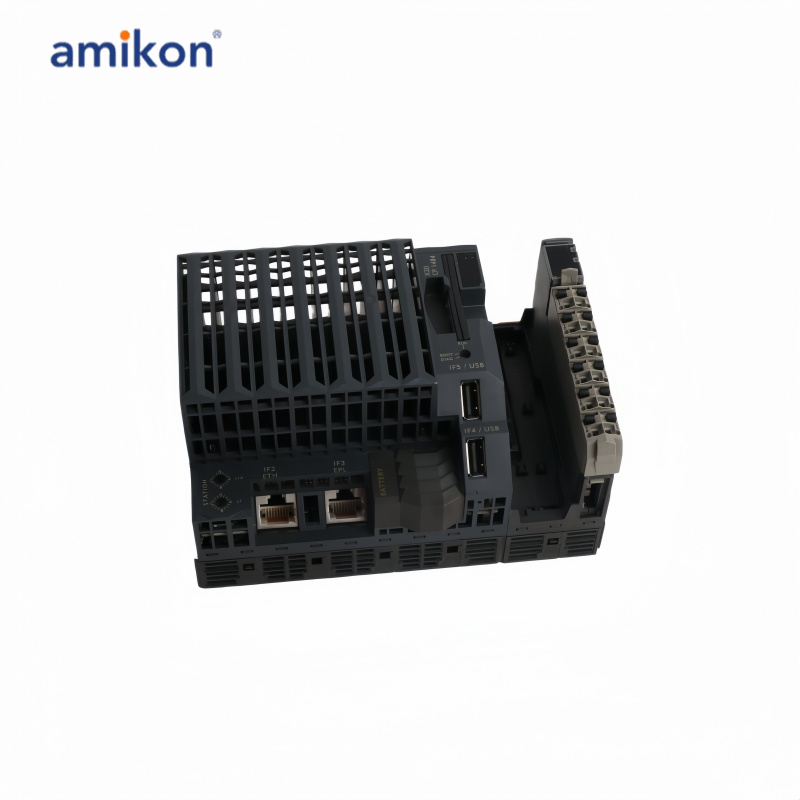

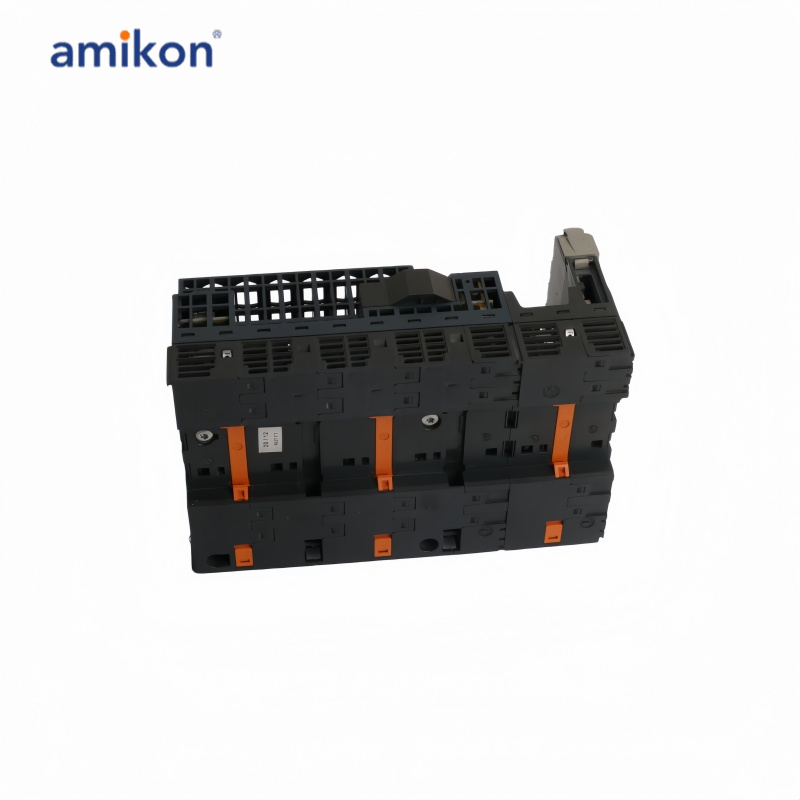

The B&R X20CP1484-1 is a compact Celeron-based CPU for the B&R Industrial X20 System. Designed for performance and space efficiency, it features a shortest cycle time of 800 μ s, onboard Ethernet, USB, and POWERLINK. It differs from the base X20CP1484 model only in its increased SDRAM capacity.

Frequently asked questions：

Q1: What is the maximum input current of the B&R X20CP1484-1 CPU Module?
A: The X20CP1484-1 supports a maximum input current of 2.2 A, ensuring stable operation under normal system loads.

Q2: What is the nominal output power of the X20CP1484-1 CPU Module?
A: The X20CP1484-1 module provides a nominal output power of 7 W, allowing it to efficiently support connected components.

Q3: How much power does the X20CP1484-1 bus interface consume?
A: The X20CP1484-1 bus interface has a power consumption of 1.42 W, contributing to the module's overall energy-efficient operation.

Q4: What is the internal I/O power consumption of the X20CP1484-1 module?
A: The X20CP1484-1 internal I/O section consumes 0.6 W, helping minimize power requirements while maintaining reliable performance.

Product Applications

Packaging and Consumer Goods Manufacturing
Textile and Printing Machinery
Semiconductor and Electronic Products
Metalworking and Automotive Manufacturing
