Product Specifications

Part Number	X20CP1485-1
Input Voltage	24 VDC -15% / +20%
Max Input Current	2.2 A
Nominal Output Power	7 W
Nominal Output Voltage	24 VDC
Permissible Contact Load	10 A
RAM	64 MB SDRAM
User RAM	1 MB SRAM
Remanent Variables Memory	Max. 256 kB
Shortest Task Class Cycle Time	400 µs
Typical Instruction Cycle Time	0.0055 µs
Serial Transfer Rate	Max. 115.2 kbit/s
Ethernet Transfer Rate	10/100 Mbit/s
Max. Output Current	0.5 A

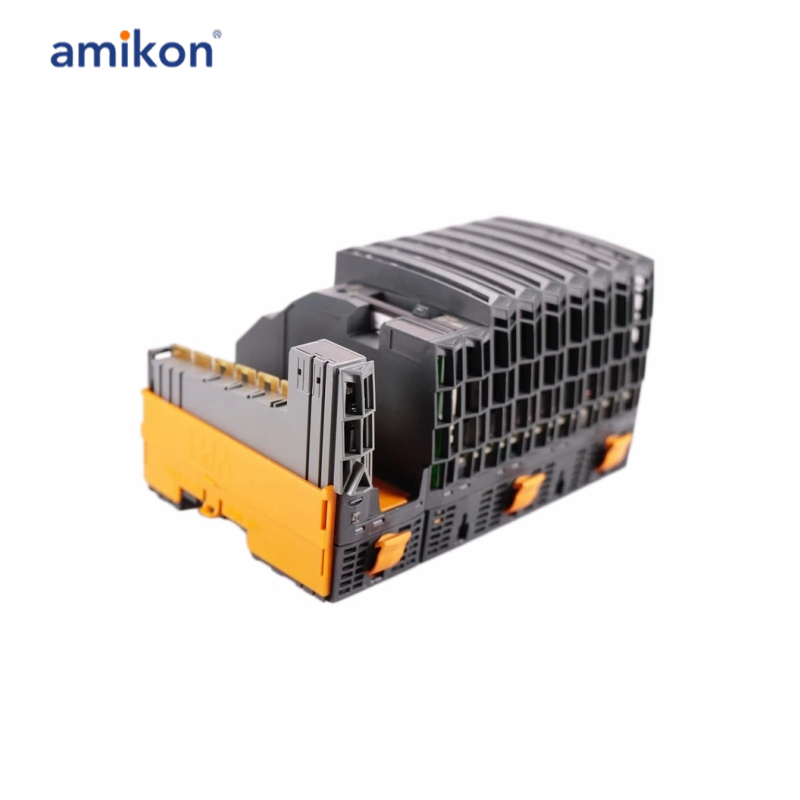

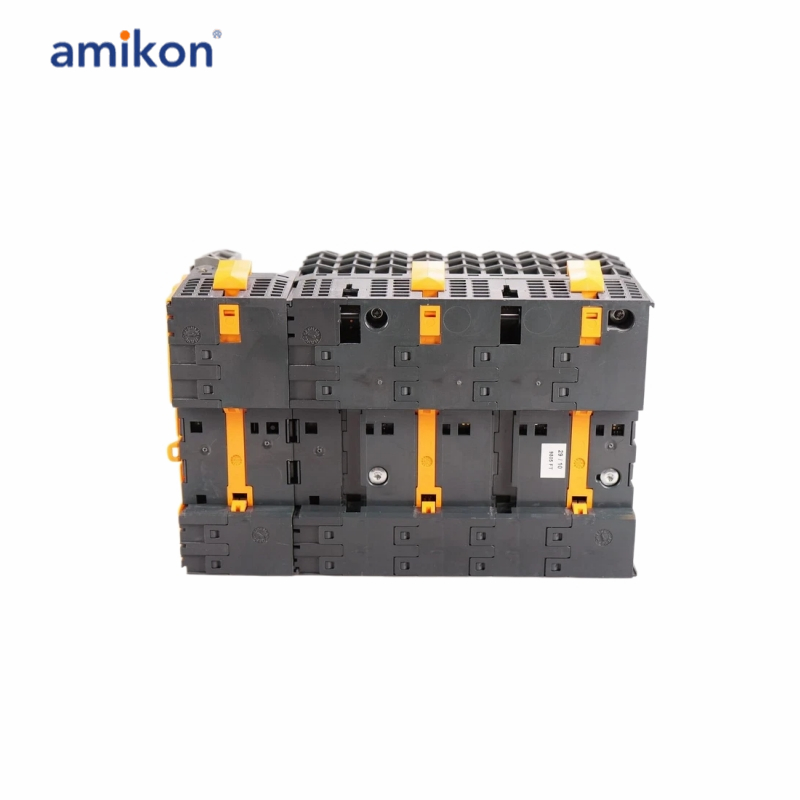

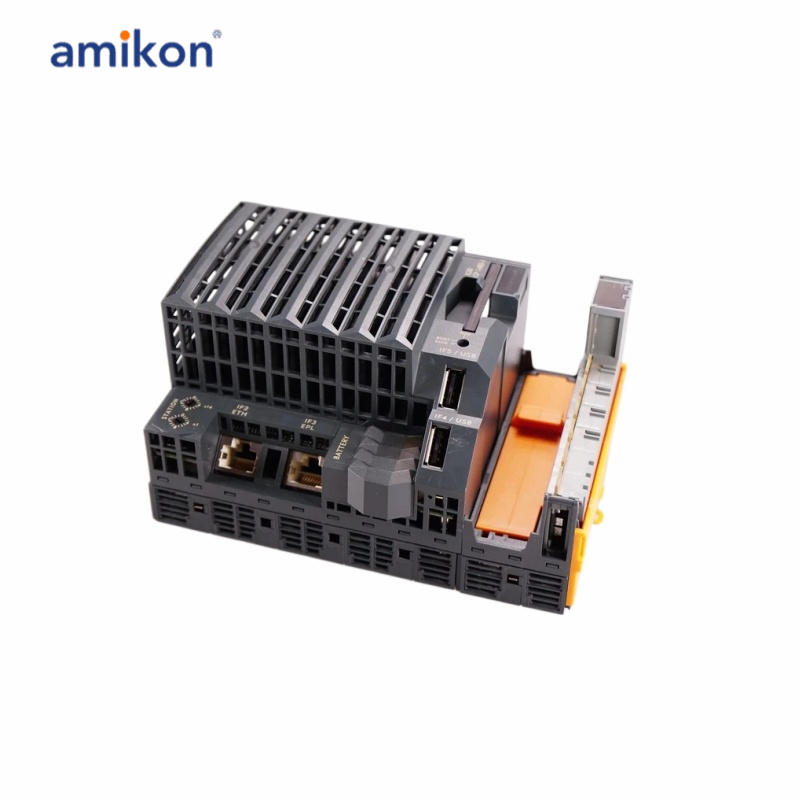

The B&R X20CP1485-1 is a high-performance CPU module designed for the X20 modular system. Powered by an Intel Celeron 400 MHz processor with an integrated I/O processor, it delivers exceptional computing performance for demanding industrial applications. The controller is optimized for systems that require fast cycle times, intensive data processing, and floating-point calculations, making it an excellent choice for advanced machine control, motion control, and process .

Built-in communication interfaces include Ethernet, POWERLINK, RS232, and dual USB ports, enabling seamless integration with industrial networks, engineering tools, HMIs, and peripheral devices. The integrated POWERLINK V1/V2 interface provides deterministic real-time communication, ensuring reliable synchronization of distributed devices and high-speed control applications.

Frequently asked questions：

Q1: What is the input voltage requirement of the B&R X20CP1485-1 CPU?
A: The X20CP1485-1 operates with a 24 VDC power supply and supports an input voltage tolerance of -15% to +20%, providing flexibility in industrial power environments.

Q2: What is the maximum input current of the X20CP1485-1?
A: The X20CP1485-1 CPU has a maximum input current of 2.2 A, ensuring reliable performance during normal operation.

Q3: What is the nominal output power of the B&R X20CP1485-1?
A: The X20CP1485-1 module delivers a nominal output power of 7 W, supporting efficient operation of connected components.

Q4: Can the X20CP1485-1 handle voltage fluctuations?
A: Yes. With its 24 VDC -15% / +20% input voltage range, the CPU can tolerate moderate power supply variations commonly found in industrial applications.

Product Applications

Packaging Machinery
Printing and Papermaking
Textile Machinery
Electronics and Semiconductors
Environmental Protection and Water Treatment
Energy and Power
