Product Specifications

Manufacturer	B&R
Product Number	X20CP1485
Input Voltage	24 VDC -15% / +20%
Input Current	Max. 2.2 A
Nominal Output Power	7 W
Nominal Output Voltage	24 VDC
Permissible Contact Load	10 A
Remanent Variables	Max. 256 kB
Shortest Task Class Cycle Time	400 µs
Typical Instruction Cycle Time	0.0055 µs
Line Length (Segment)	Max. 100 m between 2 stations
Transfer Rate	10/100 Mbit/s
Horizontal Mounting Operating Temp	0 to 55 °C
Vertical Mounting Operating Temp	0 to 50 °C
Storage Temperature	-25 to 70 °C
Transport Temperature	-25 to 70 °C

Intel Celeron 400 Performance with additional I/O processor
Ethernet, POWERLINK and USB onboard
1 slot for modular interface expansion
CompactFlash as removable application memory
Fan-free
Extremely compact

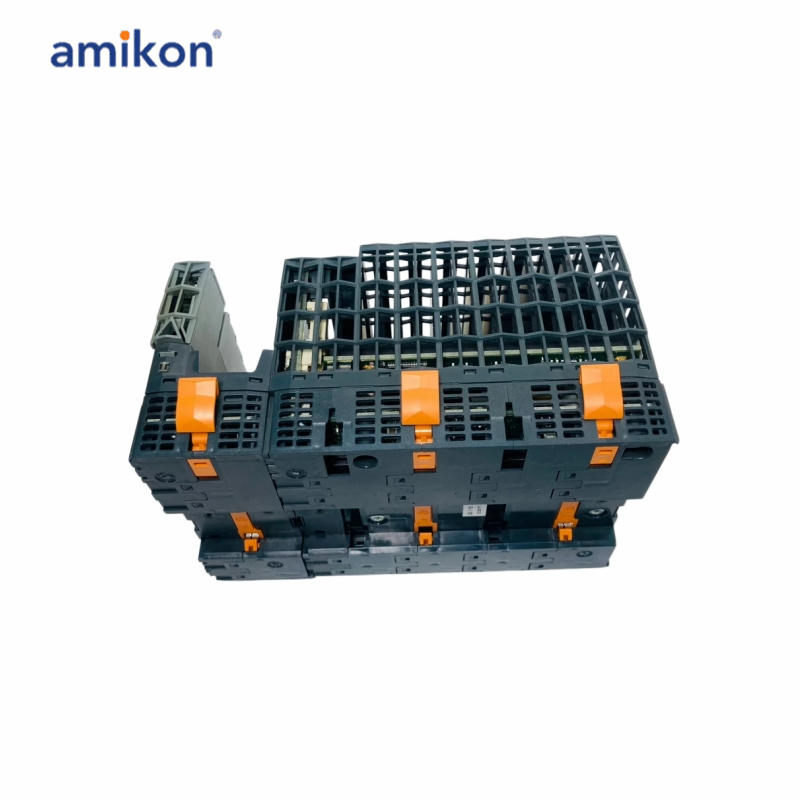

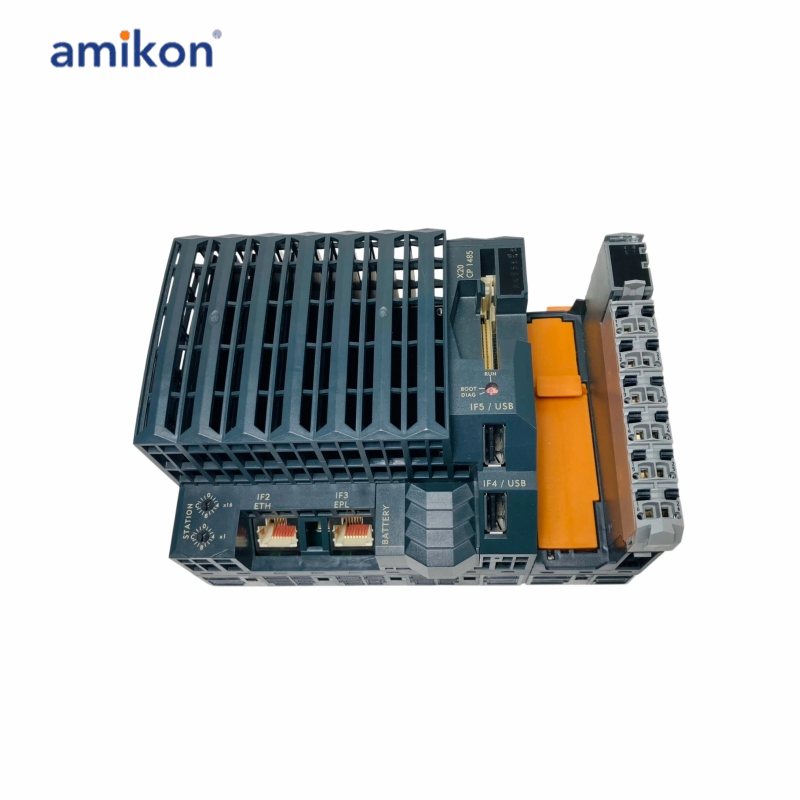

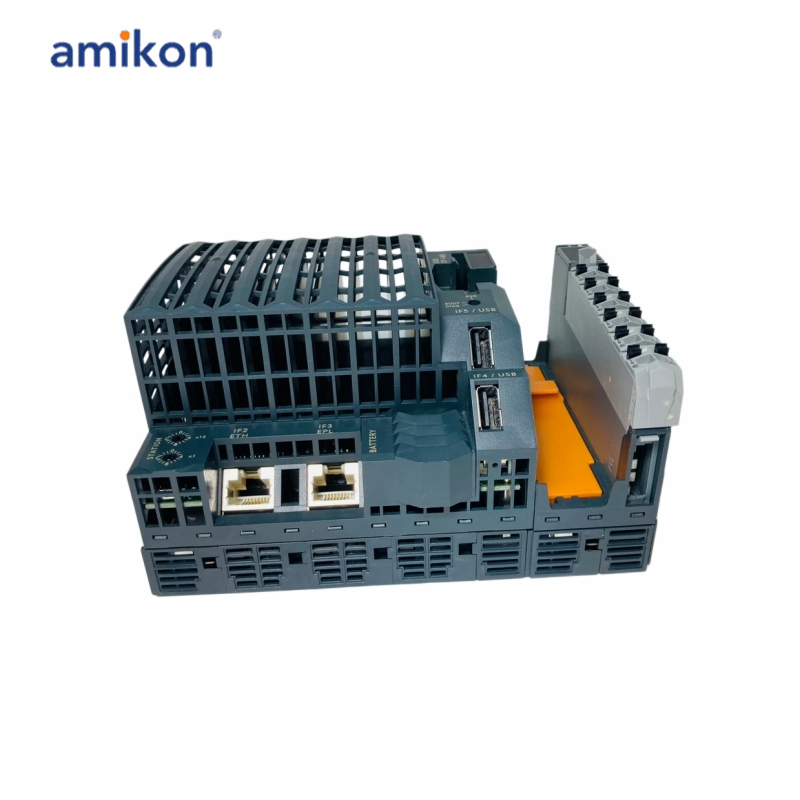

The X20CP1485 is a powerful CPU for the X20 System. This CPU is especially useful for applications that require short cycle times, have to process very large amounts of data, or carry out floating point operations.
Ethernet and USB are onboard. In addition, the CPU has a POWERLINK connection for real-time communication. The only differences from the X20CP3485 are that the X20CP1485 only has one slot for interface modules and a smaller width.
The CPU models X20CP1485 and X20CP1485-1 differ only by SDRAM size.

Frequently asked questions：

Q1: What is the B&R X20CP1485 Fieldbus CPU Module?
A1: It is an industrial CPU module designed for machine control, communication processing, and distributed I/O management within B&R X20 systems.

Q2: What is the X20CP1485 input voltage range of this CPU module?
A2: The input voltage is 24 VDC with a tolerance range of -15% to +20%.

Q3: What is the X20CP1485 maximum input current?
A3: The X20CP1485 maximum input current is 2.2 A.

Q4: What type of line fuse is required?
A4: The recommended line fuse is a maximum 10 A slow-blow fuse.

Q5: What is the X20CP1485 nominal output voltage?
A5: The X20CP1485 nominal output voltage is 24 VDC.

Product Applications

Environmental protection and water treatment industry
Packaging and Logistics Machinery
Plastic and Rubber Machinery
Printing and Papermaking Machinery
Machine tools and metal processing
New energy and solar equipment
