Product Specifications

Manufacturer	B&R
Product Number	X20CP1486
Input Voltage	24 VDC -15% / +20%
Input Current	Max. 2.2 A
Nominal Output Voltage	24 VDC
Permissible Contact Load	10 A
Remanent Variables	Max. 256 kB
Shortest Task Class Cycle Time	200 µs
Typical Instruction Cycle Time	0.0034 µs
Line Length (Segment)	Max. 100 m between 2 stations
Transfer Rate	10/100 Mbit/s
Horizontal Mounting Temperature	0 to 55 °C, fanless: 0 to 45 °C
Vertical Mounting Temperature	0 to 55 °C, fanless not permitted
Dimensions (W×H×D)	150 mm × 99 mm × 85 mm

Intel Celeron 650 Performance with additional I/O processor
Ethernet, POWERLINK and USB onboard
1 slot for modular interface expansion
CompactFlash as removable application memory
Fan can be exchanged from the outside, tool-free
Extremely compact

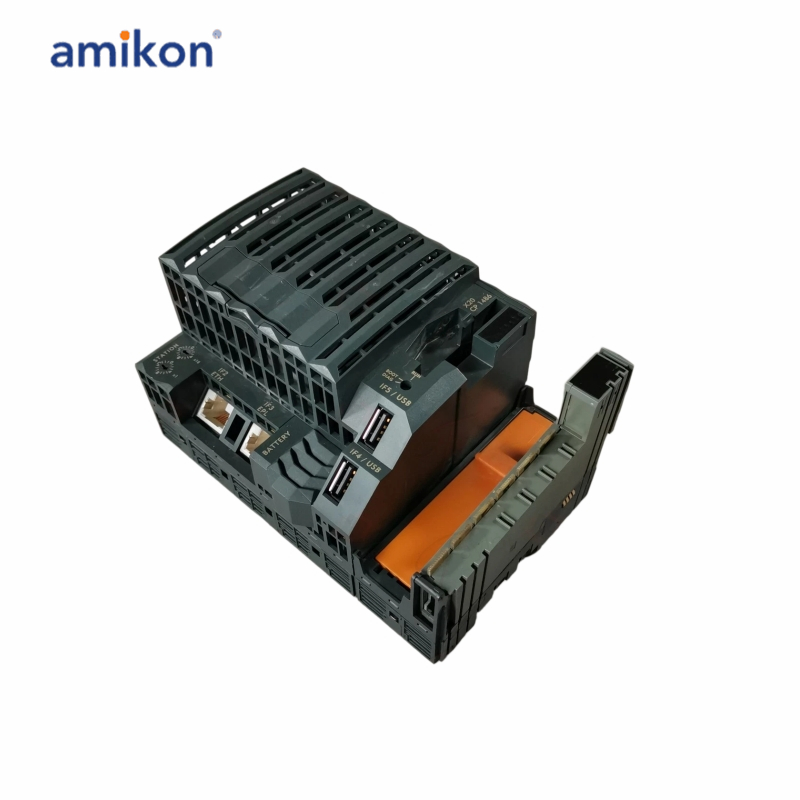

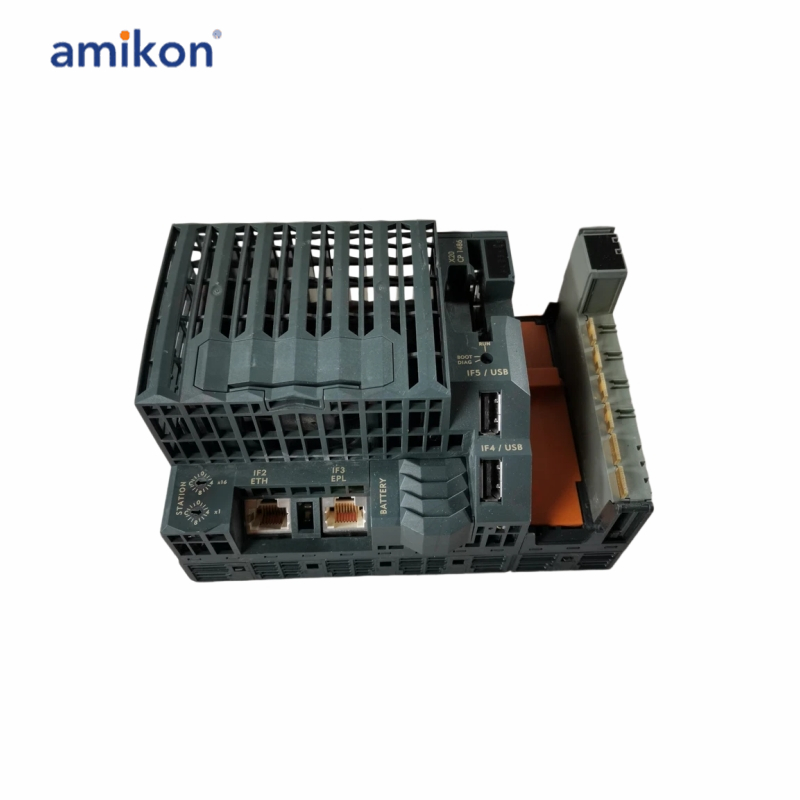

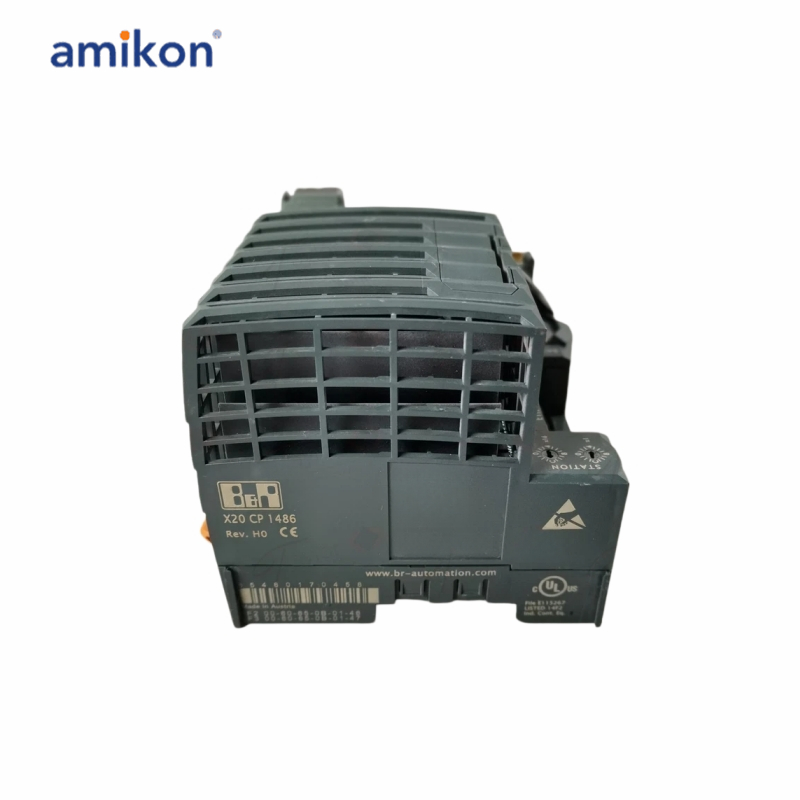

The X20CP1486 is a high-performance CPU for the X20 System. This CPU can be used anywhere from high-end applications in machine manufacturing to demanding tasks in process control.
Ethernet and USB are onboard. In addition, the CPU has a POWERLINK connection for real-time communication. The only differences from the X20CP3486 are that the X20CP1486 only has one slot for interface modules and a smaller width.

Frequently asked questions：

Q1: What is the B&R X20CP1486 Central Processing Unit?
A1: It is an industrial CPU designed for machine control, communication management, and real-time processing within B&R X20 systems.

Q2: What is the X20CP1486 maximum input current of this CPU module?
A2: The X20CP1486 maximum input current is 2.2 A.

Q3: What is the X20CP1486 communication transfer rate?
A3: The X20CP1486 transfer rate is 10/100 Mbit/s, supporting reliable industrial Ethernet communication.

Q4: What is the X20CP1486 nominal output voltage?
A4: TheX20CP1486 nominal output voltage is 24 VDC.

Q5: What is the X20CP1486 permissible contact load?
A5: The X20CP1486 permissible contact load is 10 A.
