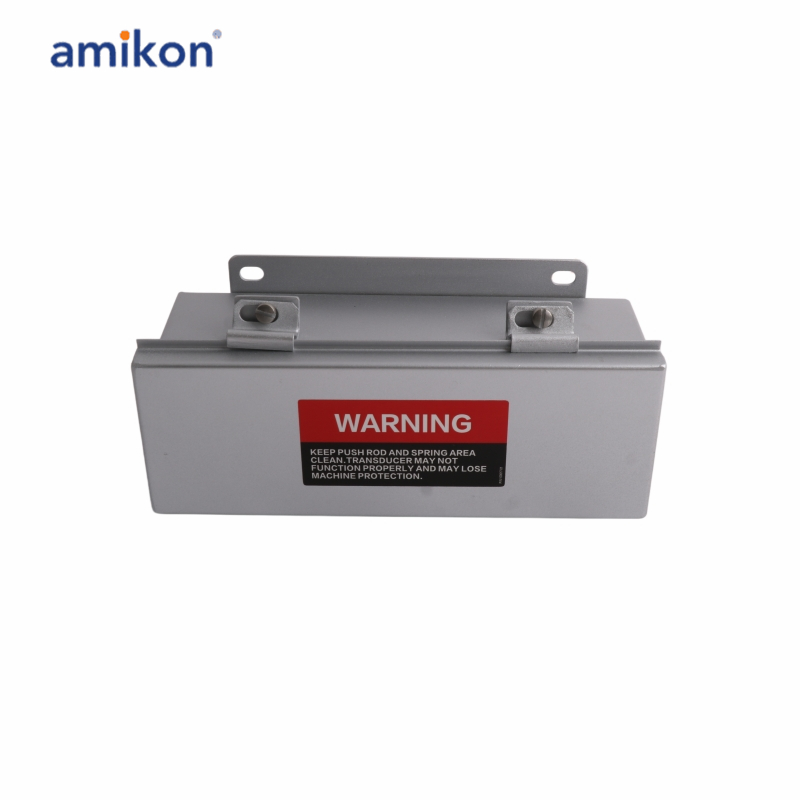

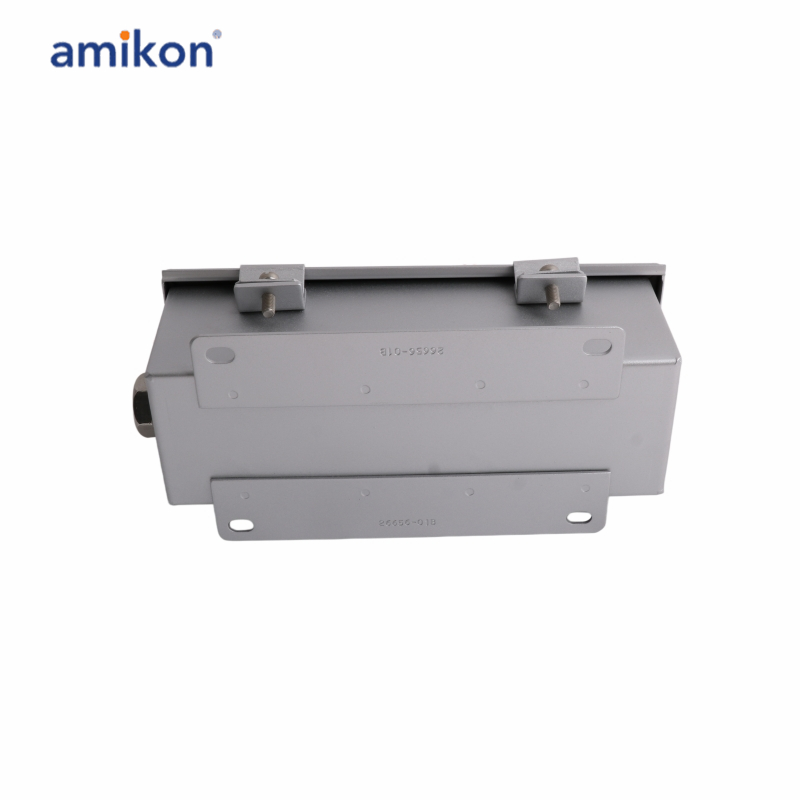

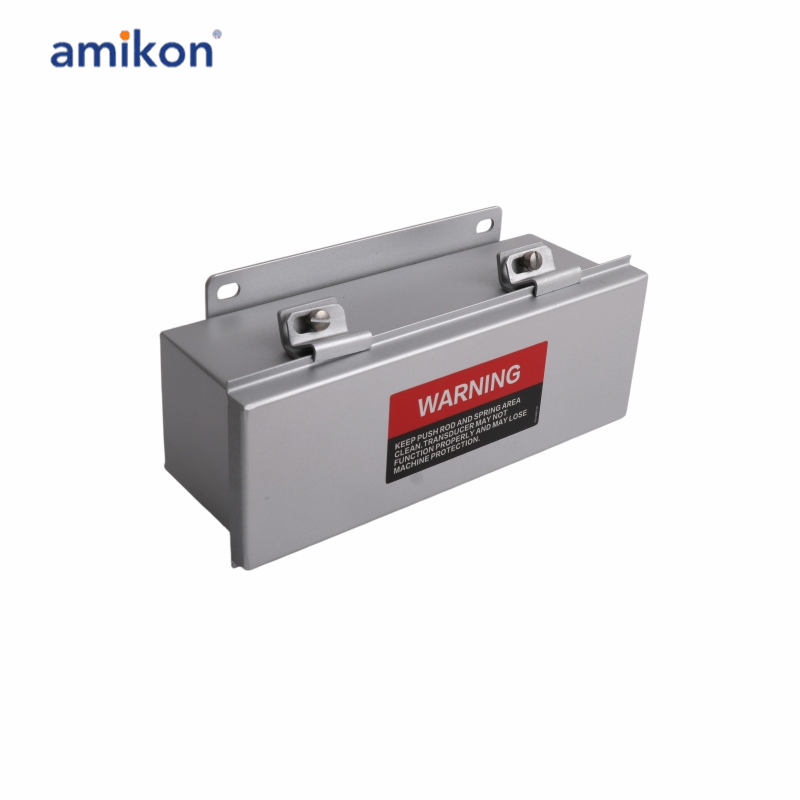

Product Specifications

Part Number	135613-01-01
Linear Range	25.4mm, matched with 127mm rod
Spring Configuration	With spring return
Input Power	13.5~26VDC unregulated, min 30mA
Output Voltage	1~6VDC
Output Noise	Less than 10mV
Operating Temperature	-25℃ ~ +85℃
Storage Temperature	-55℃ ~ +125℃
Shock Resistance	250g, 11ms duration
Vibration Resistance	10g, 0~2kHz

An important position measurement in Turbine Supervisory Instrumentation (TSi) is case expansion. Case expansion (sometimes referred to as shell expansion) is the thermalgrowth of the machine case as it expands during machinestartup and on-line operations. The case expansiontransducer system is typically mounted on the foundation atthe opposite end from where the turbine casing is attachedto the foundation and provides information about the growthof the machine case relative to the foundation.
Case expansion is a parameter that you should use a dualtransducer arrangement to measure. This arrangement provides information about the position of the sliding feet onthe machine case. A condition that obstructs or jams onefoot could distort the case and damage the machine. Thedual case expansion transducer configuration in conjunctionwith the 3300 or 3500 monitors provides an alarm for thiscondition. The high temperature dual case expansiontransducer configuration is compatible only with the 3500/45Position Monitor.

Frequently asked questions：

Q1: What is the Bently Nevada 135613-01-01 used for?
A1: Bently Nevada 135613-01-01 is a Case Expansion Transducer System used to monitor thermal expansion and mechanical movement in industrial rotating machinery. It helps maintain safe and reliable machine operation by tracking casing expansion changes.

Q2: What is the input power requirement of the 135613-01-01 system?
A2: The 135613-01-01 system operates with an unregulated input power range of 13.5~26 VDC and requires a minimum current of 30 mA.

Q3: What is the 135613-01-01 output voltage range of the transducer system?
A3: The 135613-01-01 output voltage range is 1~6 VDC.

Q4: What is the 135613-01-01 output noise specification of the system?
A4: The 135613-01-01 output noise is less than 10 mV, helping provide stable and accurate measurement signals.

Product Applications

Thermal power plants and nuclear power plants
Petrochemical and oil refineries
Steel and metallurgical plants
Large cement plants and mines
