Product Specifications

Part Number	26530-12-10-03-018-085-24-03-00
Base Model	Dual Probe Transducer System
Probe Type	3300 XL 8mm probe, multi-certified
Probe Cable Length	1.0m
Adapter Thread	3/4-14 NPT
Adapter Length	1.8 inches
Probe Penetration	8.5 inches
Velocity Sensor	Velomitor Sensor
Accessories	3/4-14 NPT plug, reducer & cable seal grip
Support & Oil Seal	Not equipped

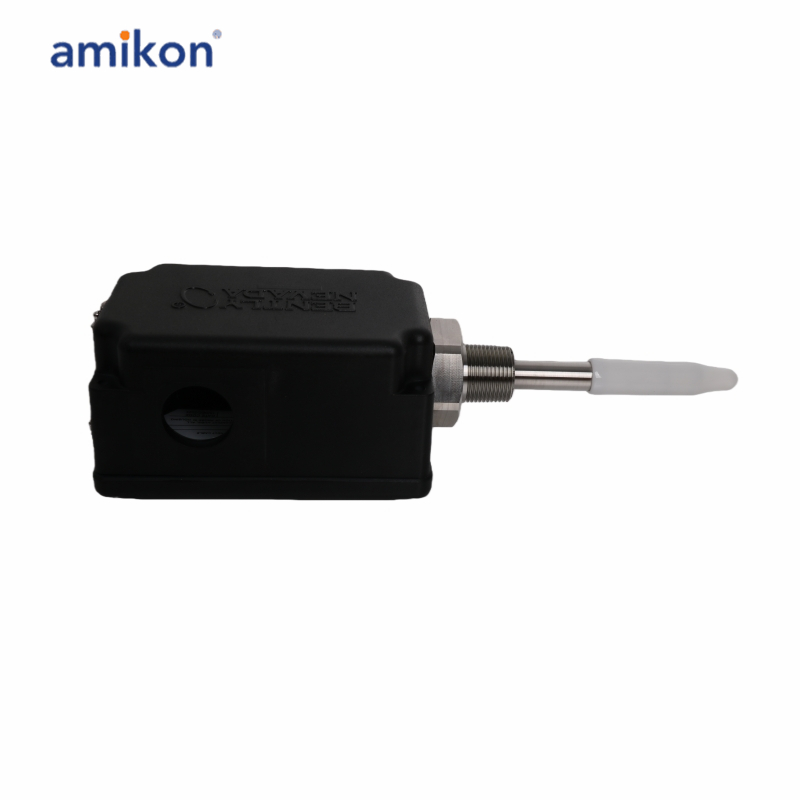

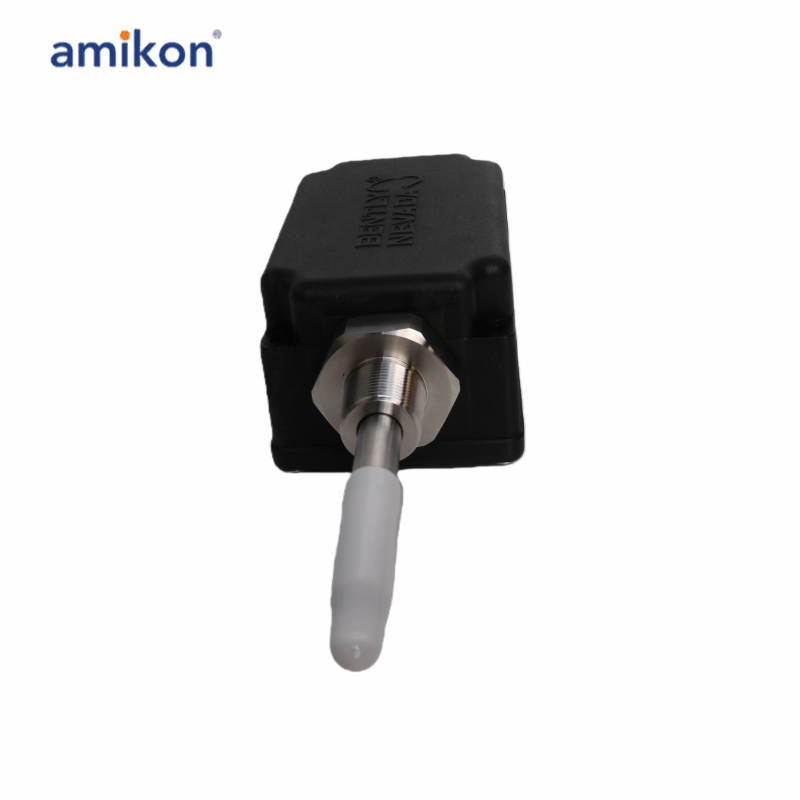

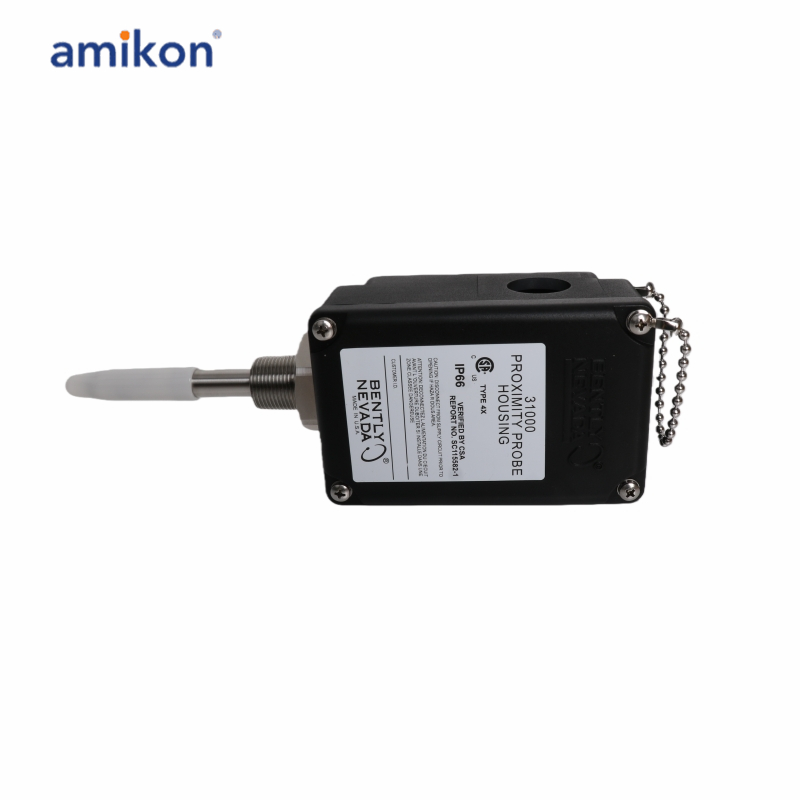

The Dual Probe Transducer System consists of a proximity probe and a seismicor Velomitor* transducer installed at approximately the same point in a commontransducer housing. This transducer system is capable of making four separate measurements:
Shaft relative radial position (displacement) relative to the probe mountinglocation, measured by the proximity probe;Shaft relative radial dynamic motion (vibration) relative to the probe mountinglocation, measured by the proximity probe;Machine casing absolute vibration measured by the seismic vibration; andShaft absolute motion represented by the summation of the seismic signal (afterintegration to displacement) and the shaft relative displacement.
The Dual Probe Transducer System provides the best measurement data whentransducer housing is mounted on a portion of the bearing housing or cover thatis mechanically referenced to the bearing.
For complete machinery monitoring diagnostics using orbit analysis and shaftcenterline position information, two Dual Probe assemblies in an X-Yconfiguration are required per radial bearing.
A probe support/oil sleeve is available as an option. It protects the transducersystem from oil and provides additional support for the probe sleeve.

Frequently asked questions：

Q1: What is the Bently Nevada 26530-12-10-03-018-085-24-03-00 used for?
A1: Bently Nevada 26530-12-10-03-018-085-24-03-00 is a Dual Probe Transducer System used for monitoring shaft vibration, position, and relative movement in rotating machinery. It is commonly applied in machinery protection and condition monitoring systems.

Q2: What is the 26530-12-10-03-018-085-24-03-00 probe cable length of this transducer system?
A2: The 26530-12-10-03-018-085-24-03-00 probe cable length is 1.0 meter, providing flexible installation for industrial monitoring applications.

Q3: What adapter thread type does the system use?
A3: The 26530-12-10-03-018-085-24-03-00 system uses a 3/4-14 NPT adapter thread for secure mounting and installation.

Q4: What is the 26530-12-10-03-018-085-24-03-00 adapter length of the transducer system?
A4: The 26530-12-10-03-018-085-24-03-00 adapter length is 1.8 inches.

Q5: What is the 26530-12-10-03-018-085-24-03-00 probe penetration length?
A5: The 26530-12-10-03-018-085-24-03-00 probe penetration length is 8.5 inches.

Product Applications

Power Generation
Oil & Gas
Metallurgy & Mining
Pulp, Paper & Water
